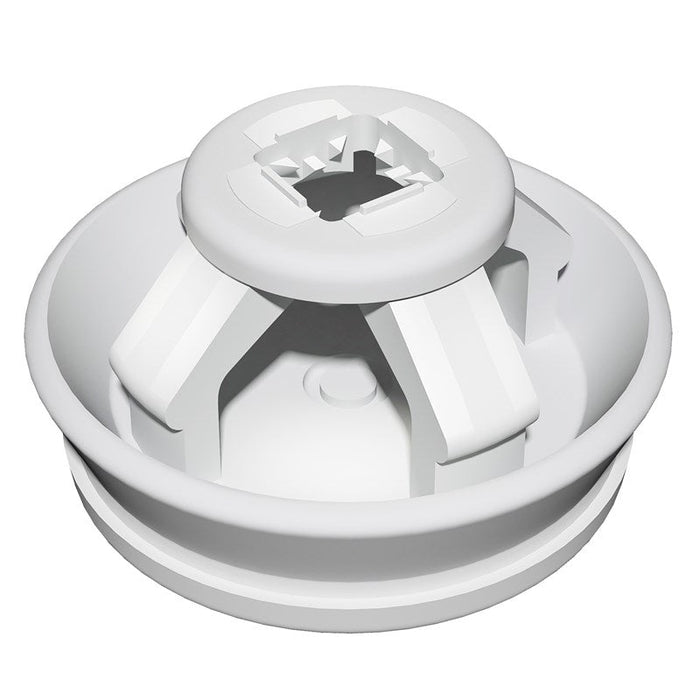

Wiska 10101932 CLIXX M16 Membrane Cable Entry with Strain Relief - White
SKU 10101932
Availability:
Dispatch in 2-3 Days
Original price
£0.28
-
Original price
£0.28
Original price
£0.23
Exc VAT
£0.28
Inc VAT
£0.28
-
£0.28
Current price
£0.28
£0.28
-
£0.28
Current price
£0.28
Wiska 10101932 CLIXX M16 Membrane Cable Entry with Strain Relief - White
Innovative two-component cable entry made of high-quality plastics. This is snapped into a hole without thread from the outside, no assembly tool or locknut required. CLIXX® can be used in enclosures with wall thicknesses between 0.8 and 3.5 mm. The cable is inserted through the soft membrane, securely sealed and permanently strain-relieved by the internal claws. The outer sealing lip provides a reliable seal on the housing.
Features
- Type: CLIXX 16 WH
- Material: Polypropylene
- Material membrane: TPE
- Temp. range min: -40 °C
- Temp. range max: 65 °C
- Protection class: IP66 / IP67
- Ø Connection thread D: 16
- Length screw-in thread L: 7.3 mm
- Ø cable diameter min: 4.5 mm
- Ø cable diameter max: 10 mm
- Collar diameter (E): 23 mm - 28 mm
- Total length TL: 15 mm
- Ø Drilling: 16.5 mm - 16.7 mm
- Wall thickness S: 0.8 mm - 3.5 mm
Data Sheet:
Click Here for Data Sheet
