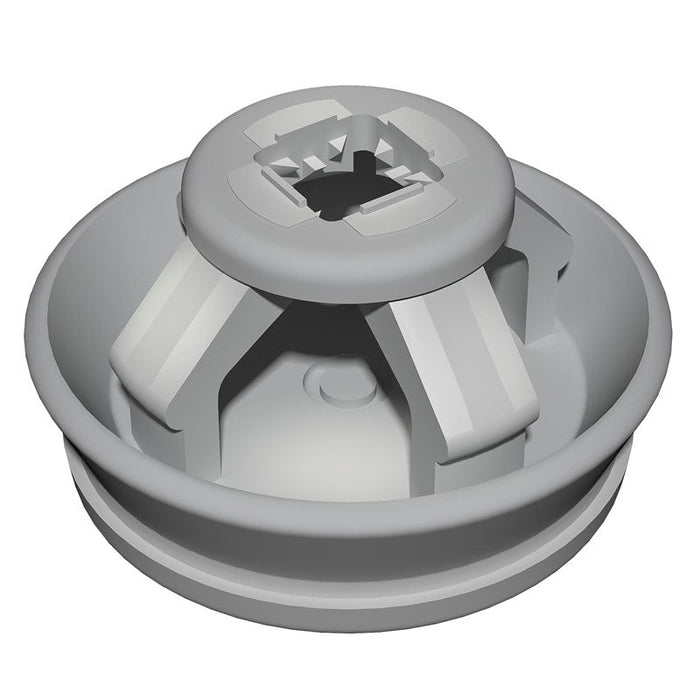

Wiska 10101862 CLIXX M25 Membrane Cable Entry with Strain Relief - Light Grey
Innovative two-component cable entry made of high-quality plastics. This is snapped into a hole without thread from the outside, no assembly tool or locknut required. CLIXX® can be used in enclosures with wall thicknesses between 0.8 and 3.5 mm. The cable is inserted through the soft membrane, securely sealed and permanently strain-relieved by the internal claws. The outer sealing lip provides a reliable seal on the housing.
Features
- Type: CLIXX 25 LG
- Material: Polypropylene
- Material membrane: TPE
- Temp. range min: -40 °C
- Temp. range max: 65 °C
- Protection class: IP66 / IP67
- Ø Connection thread D: 25
- Length screw-in thread L: 7.5 mm
- Ø cable diameter min: 9 mm
- Ø cable diameter max: 17 mm
- Collar diameter (E): 32 mm - 38 mm
- Total length TL: 15 mm
- Ø Drilling: 25.5 mm - 25.7 mm
- Wall thickness S: 0.8 mm - 3.5 mm
Data Sheet:
Click Here for Data Sheet
