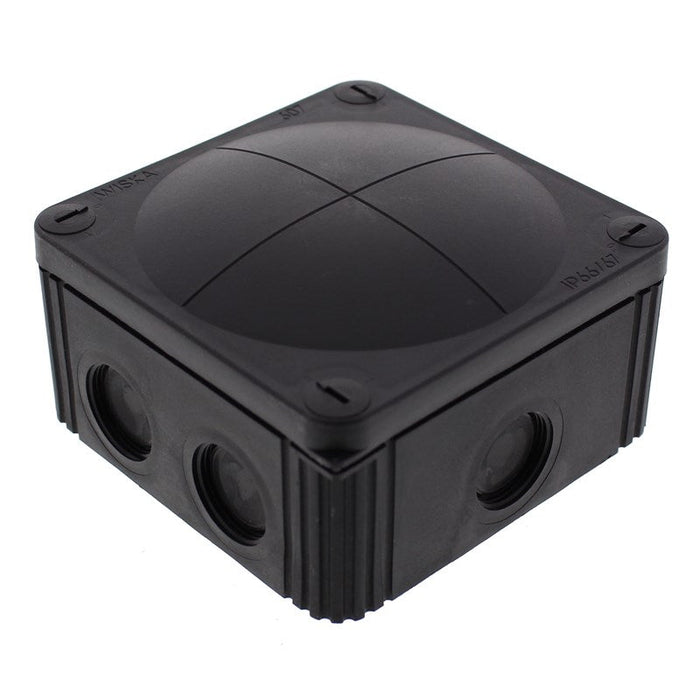

Wiska 10060648 COMBI 607 Empty Junction Box - Black

SKU 10060648
Availability:
IN STOCK
Original price £9.61 - Original price £9.61
Original price
£8.01 Exc VAT
£9.61 Inc VAT
£9.61 - £9.61
Current price £9.61
£9.61 - £9.61
Current price £9.61
Request a quote
Read More...

Wiska 10060648 COMBI 607 Empty Junction Box - Black

Features

  • Type: COMBI 607/Empty
  • Colour: Black
  • Terminal Type: None
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 690 V
  • Rated cross section: 6 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 5,2 mm
  • Ø cable diameter max: 17 mm
  • External dimensions LxWxH: 110 x 110 x 66mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
7 M20 threaded membrane entries
3 membrane cable entries through rear
4 captive cover screws

Mounting:
4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
