Wiska 99705 SPRINT GLP25 - ESKV 25 + EMUG 25 Gland Packs (Pack of 10) - Black

SKU 99705
Availability:
IN STOCK
Original price £6.70 - Original price £6.70
Original price
£5.58 Exc VAT
£6.70 Inc VAT
£6.70 - £6.70
Current price £6.70
£6.70 - £6.70
Current price £6.70
Request a quote
Read More...

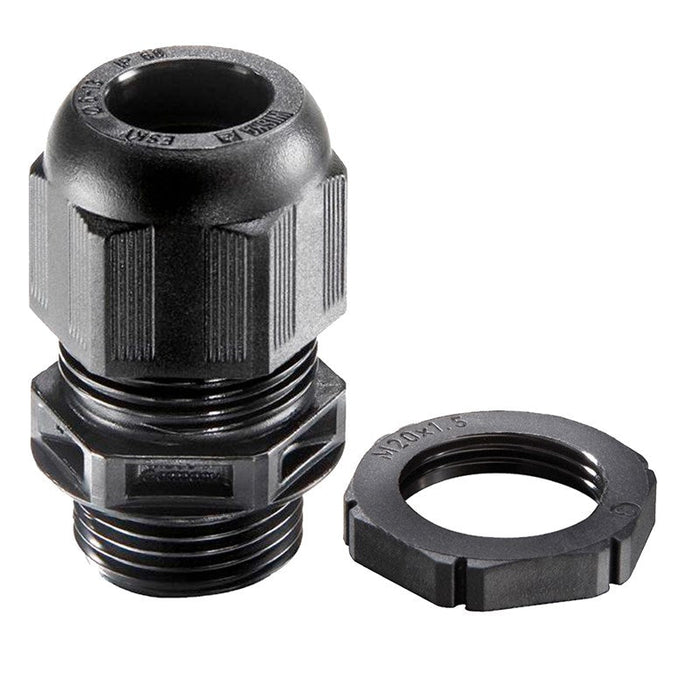

Wiska 99705 SPRINT GLP25 - ESKV 25 + EMUG 25 Gland Packs (Pack of 10) - Black

SPRINT cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.

Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.

The SPRINT system offers a comprehensive selection of accessories for special applications.

Kit contains

  • 10 x ESKV 25 (25mm glands)
  • 10 x EMUG 25 (25mm locknuts)

Features

  • Type: GLP25 black
  • Material cable gland: Polyamide
  • Material sealing gasket: EPDM
  • Temp. range min: -40 °C
  • Temp. range max: 100 °C
  • Protection class: IP68 (5 bar 30 min), IP69
  • Glow wire test: 750 °C
  • Thread type: M
  • Ø Connection thread D: 25
  • Lead: 1.5
  • Length screw-in thread L: 10 mm
  • Ø cable diameter min: 9 mm
  • Ø cable diameter max: 17 mm
  • Key width SW: 29 mm
  • Collar diameter (E): 32 mm
  • Total length TL: 38 mm - 47 mm

Data Sheet:

Click Here for Data Sheet
