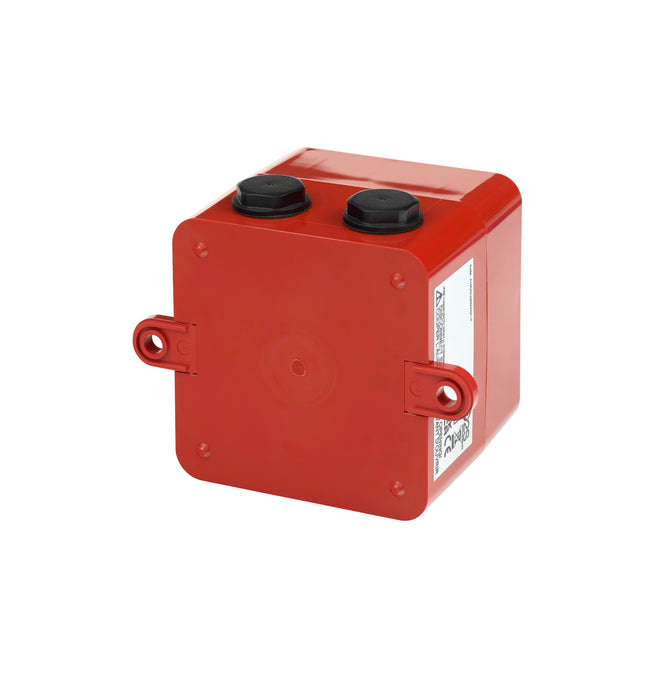

Aico Y03 Mains Power Multi Frequency Sounder 230V

Aico Y03 Mains Multi Frequency Sounder 230V

The YO3 is a 230V AC powered electronic sounder for fire, security, and industrial applications.

Features

• Mains powered
• Activated by a relay module
• Frequency 340-2900Hz – switchable
• 90-100dB(A) output at 1 meter
• For indoor or outdoor use

Specifications

• Moulded flame retardant ABS plastic construction with stainless steel screws.
• 230V AC operation, 15mA power consumption.
• 32 selectable sounds – via a 6-way DIL switch.
• Frequency from 340Hz – 2400/2900KHz
• Output levels from 90 to 100dB (A) @ 1m.
• Additional adjustable sound control on the circuit board.
• 3 x 20mm gland entries provided for cable supply.
• Insulated clamping terminals provided for 0.5mm² to 1.5mm² cable.
• Weather protected to IP66
• Operating temperature: -25°C to 55°C
• Relative Humidity: 90% @ 20°C
• Manufactured in the E.U
• 5-year guarantee.
