Timeguard PDFM1500N 360° Flush Mount Ceiling PIR Light Controller
Timeguard PDFM1500N 360° Flush Mount Ceiling PIR Light Controller
Product Description
The Timeguard PDFM1500N is a 360° flush-mounted ceiling PIR light controller designed for automatic lighting control based on presence, movement and ambient light levels. Its discreet ceiling-mounted design and wide detection coverage make it ideal for offices, corridors, toilets and other commercial or residential areas where efficient automatic lighting control is required.
The controller provides motion detection up to 12 metres and presence detection up to 6 metres when installed at a 3 metre mounting height. Adjustable time and light-level settings allow operation to be tailored to suit the installation, while support for LED, resistive and inductive loads provides excellent versatility.
Key Features
- 360° flush-mounted ceiling PIR light controller.
- Automatically switches lighting on when presence or movement is detected in conjunction with the selected ambient light level.
- Enhanced 360° detection zone for comprehensive coverage.
- Ideal for offices, corridors, toilets and similar areas.
- Motion detection range up to 12 metres at a 3 metre mounting height.
- Presence detection range up to 6 metres at a 3 metre mounting height.

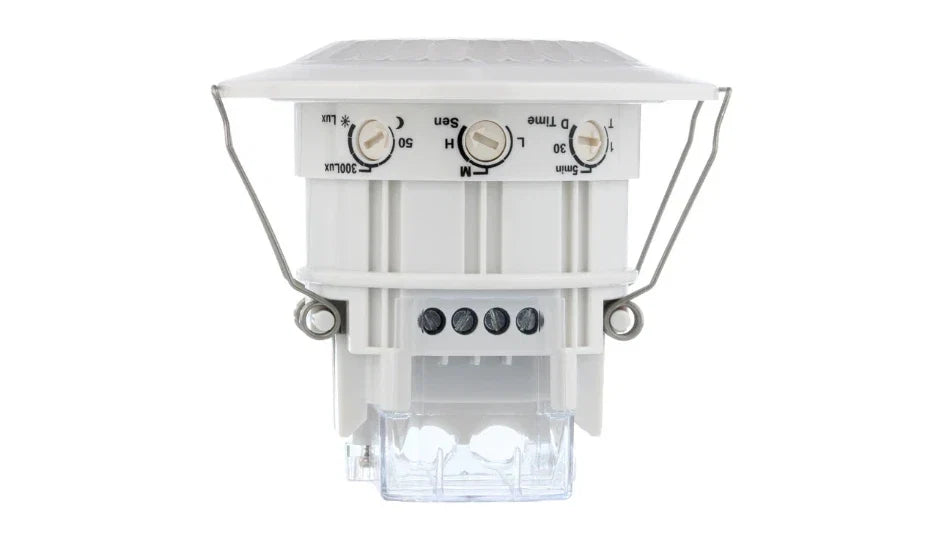

- Adjustable time delay from approximately 1 to 30 minutes.
- Adjustable light level from 1 to 2000 lux.
- Suitable for resistive loads up to 2000W.
- Suitable for LED loads up to 600W.
- Suitable for inductive loads, including fans, up to 250W.
- Multiple units can be wired in parallel, provided the total permitted load is not exceeded.
- Requires a 66mm diameter installation cut-out.
- IP44 rated for protection against water splashes and solid objects.
- 3-year guarantee.
