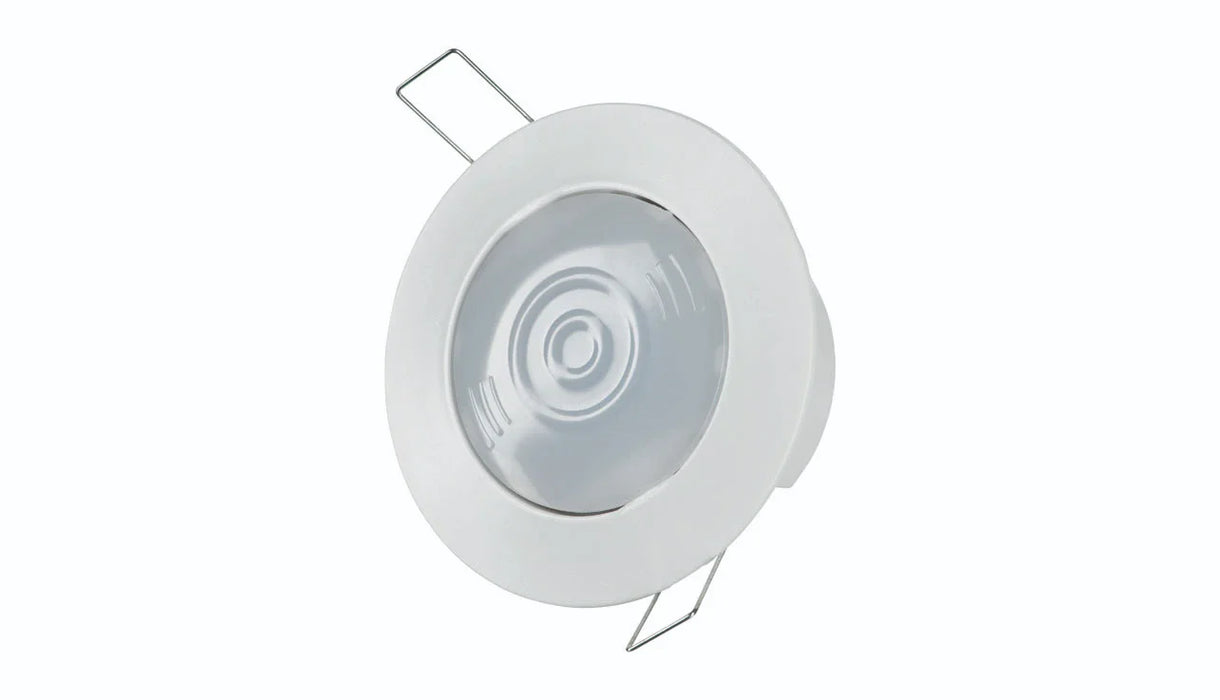

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Product Description

Ideal for larger spaced detection areas that have an awkward shape or where fine motion detection is required. Can detect subjects through glass.

Key Features

• High frequency technology for instant reaction, that can detect around partitions and through glass, doors and walls Enhanced 360° detection zone for optimum coverage Up to 7m for motion at 3m mounting height, adjustable from 30secs to 30minutes, light level adjustable from 5 to 2000 lux Suitable for 1000W resitive,100W LED or 440VA inductive loads Requires a 64mm diameter cut out Not suitable for discharge lighting IP20 environmental rating (internal use only) 3-year guarantee

Specification Colour White Connection type Screwed terminal Degree of protection (IP rating) IP20 Frequency 50 - 60Hz Material Other Max. duty cycle 30min Max. reach frontally 7m Max. reach sideways 7m Max. switching power 1000W Max. switching power LED 100W Min. switch-on time 30s Model Movement sensor Mounting method Flush mounted Optimum mounting height 2.5m Response value luminosity adjustable Yes Scan angle 360° Suitable for ceiling mounting Yes Surface finish Matt Voltage type AC

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
