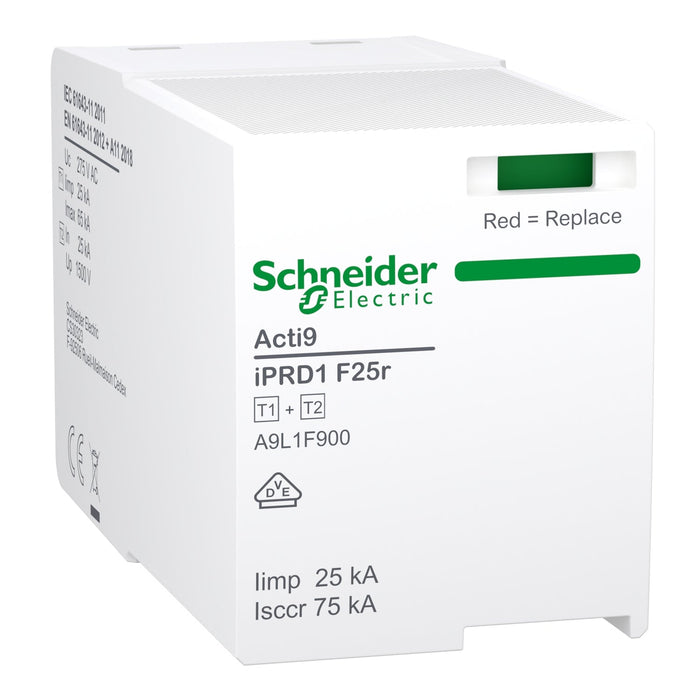

Schneider Electric A9L1F900 Cartridge for Acti9 iPRD1 F25r 3P/3P+N L-PE/N Type 1+2 SPD with Fuse
Schneider Electric A9L1F900 Cartridge for Acti9 iPRD1 F25r 3P / 3P+N Type 1+2 Surge Protective Devices
Product Description
The Schneider Electric A9L1F900 is a genuine replacement cartridge designed for use with Acti9 iPRD1 F25r surge protective devices in both 3-pole (3P) and 3-pole plus neutral (3P+N) configurations. Featuring an integrated surge-adapted backup fuse, it provides enhanced safety and protection against direct lightning strikes and transient overvoltages.
This Type 1+2 surge arrester cartridge is pluggable, allowing fast and straightforward replacement without disturbing the existing installation. A clear front-facing visual indicator shows green when operational and red when replacement is required, ensuring simple inspection and maintenance.
Compatible with TN-C, TN-S and TT earthing systems, the A9L1F900 is suitable for industrial, commercial and infrastructure applications where high-performance surge protection and system continuity are critical.
Key Features
- Replacement cartridge for Acti9 iPRD1 F25r SPDs
- Suitable for 3P and 3P+N surge protective devices
- Type 1 + 2 surge protection for lightning and transient overvoltages
- Integrated surge-adapted backup fuse
- Nominal discharge current of 25kA with Imax up to 65kA
- Pluggable design for quick and easy replacement
- Clear green/red visual status indication
- Compatible with TN-C, TN-S and TT earthing systems
Technical Specification
- Range: Acti9
- Product Type: Surge arrester cartridge
- Compatibility: Acti9 iPRD1 F25r (3P / 3P+N)
- Surge Arrester Class: Type 1 + 2
- Surge Technology: Gas Discharge Tube (GDT)
- Rated Operational Voltage (Ue): 240V AC, 50/60Hz
- Maximum Continuous Operating Voltage (Uc): 275V
- Nominal Discharge Current (In): 25kA
- Maximum Discharge Current (Imax): 65kA
- Impulse Current (Iimp): 25kA (12.5 A·s)
- Voltage Protection Level (Up): <1.5kV
- Short-Circuit Withstand: 75kA
- Mounting: Plug-in cartridge
- IP Rating: IP20
- Operating Temperature: –40°C to +85°C
- Dimensions (H × W × D): 45 × 36 × 73.5 mm
- Weight: 194 g
- Colour: White (RAL 9003)
