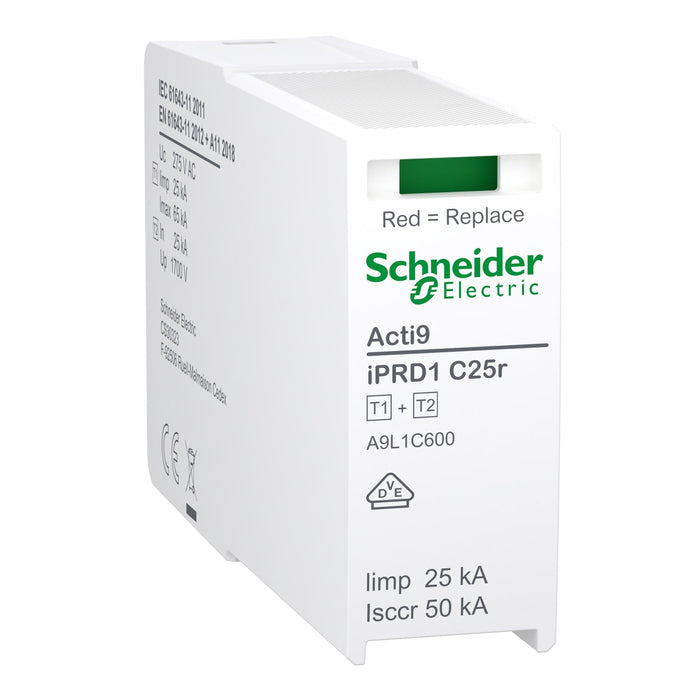

Schneider Electric A9L1C600 Cartridge for Acti9 iPRD1 C25r 3P+N L-N Type 1+2 SPD
Schneider Electric A9L1C600 Cartridge for Acti9 iPRD1 C25r 3P+N Type 1+2 Surge Protective Devices (L-N)
Product Description
The Schneider Electric A9L1C600 is a genuine replacement cartridge designed for use with Acti9 iPRD1 C25r 3-pole plus neutral (3P+N) surge protective devices. It delivers dependable Type 1+2 surge protection in differential mode (L-N), safeguarding electrical installations against lightning impulses and transient overvoltages.
This pluggable cartridge allows rapid replacement without disturbing wiring, helping to minimise downtime and maintain continuity of service. A clear front-facing visual indicator displays green during normal operation and red when replacement is required, ensuring straightforward maintenance and inspection.
Compatible with TT, TN-S and TN-C earthing systems, the A9L1C600 is suitable for industrial, commercial and infrastructure installations where reliable surge protection is essential.
Key Features
- Replacement cartridge for Acti9 iPRD1 C25r SPDs
- Suitable for 3P+N surge protective devices
- Type 1 + 2 surge protection for differential mode (L-N)
- Pluggable design for fast and easy replacement
- Clear green/red visual status indication
- High discharge capacity for lightning impulse protection
- Compatible with TT, TN-S and TN-C earthing systems
Technical Specification
- Range: Acti9
- Product Type: Surge arrester cartridge
- Compatibility: Acti9 iPRD1 C25r 3P+N
- Surge Arrester Class: Type 1 + 2
- Surge Technology: Gas Discharge Tube (GDT)
- Rated Operational Voltage (Ue): 240V AC, 50/60Hz
- Maximum Continuous Operating Voltage (Uc): 275V L-N
- Nominal Discharge Current (In): 25kA (L-N)
- Maximum Discharge Current (Imax): 65kA (L-N)
- Impulse Current (Iimp): 25kA (12.5 A·s)
- Voltage Protection Level (Up): <1.5kV
- Short-Circuit Withstand: 50kA
- Mounting: Plug-in cartridge
- IP Rating: IP20
- Operating Temperature: –40°C to +85°C
- Dimensions (H × W × D): 45 × 18 × 73.5 mm
- Weight: 105 g
- Colour: White (RAL 9003)
