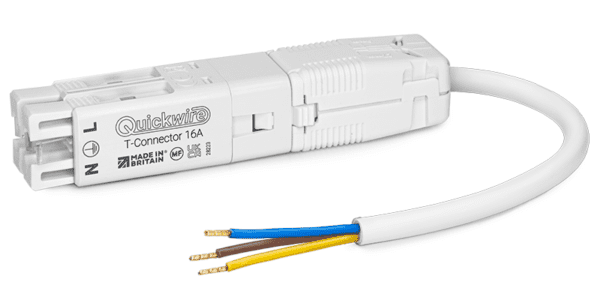

Quickwire QTPS_375_PVC_50 T-Connector Plug with 3-Core 0.75 PVC x 50cm + T-Socket
Quickwire QTPS_375_PVC_50 T-Connector Plug with 3-Core 0.75mm² PVC Cable (50cm) & T-Socket
Product Description
The Quickwire QTPS_375_PVC_50 T-Connector Prewired Plug & Socket is a ready-to-install wiring solution designed for applications where extended cable length is required. Supplied factory prewired with a 3-core 0.75mm² PVC flexible cable in a generous 50cm length, it offers added flexibility between connection points while maintaining a secure plug-and-socket interface.
All prewired plugs feature factory-fitted ferruled connections on the trailing end, ensuring a neat, professional termination and reducing installation time. The Quickwire T-Connector range is available in 2-core or 3-core variants, with standard 15cm and 30cm lengths, as well as bespoke lengths such as this 50cm option.
Designed and manufactured in Great Britain, this T-Connector delivers consistent quality, reliability, and ease of installation for professional electrical and lighting projects.
Features & Benefits
- Prewired T-Connector plug and socket for fast installation
- 3-core 0.75mm² PVC flexible cable
- 50cm cable length for extended reach
- Factory ferruled connections on trailing end
- Available in 2-core or 3-core options
- Standard and bespoke cable lengths available on request
- Designed and manufactured in Great Britain
Technical Specification
Plug Specifications
- Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
- Poles: 3-pole
- Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
- Conductor Size: 0.5mm² – 1.5mm²
- Termination: Screw terminals
- Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
- Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
- IP Rating: IP20 (when plugged in)
Socket Specifications
- Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
- Poles: 3-pole
- Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242Y or 6242B), solid cores (Class 1)
- Termination: Utilises rapid Quickwire push-fit technology
- Cord Grip: Fully automatic
- Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
- Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
- IP Rating: IP30
