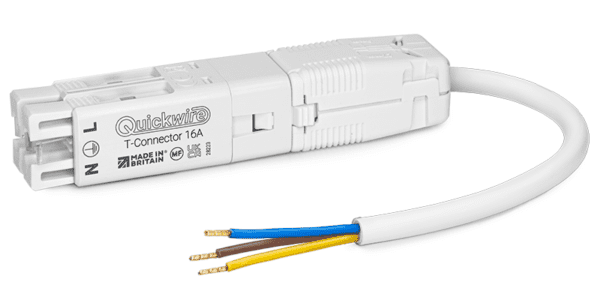

Quickwire QTPS_375_PVC_15 T-Connector Plug with 3-Core 0.75 PVC x 15cm + T-Socket
Quickwire QTPS_375_PVC_15 T-Connector Plug with 3-Core 0.75mm² PVC Cable (15cm) & T-Socket
Product Description
The Quickwire QTPS_375_PVC_15 T-Connector Prewired Plug & Socket is a ready-to-install wiring solution designed to reduce installation time and improve connection reliability. Supplied factory prewired with a 3-core 0.75mm² PVC flexible cable in a compact 15cm length, it is ideal for lighting and electrical applications requiring a secure plug-and-socket connection.
All prewired plugs are supplied with factory-fitted ferruled connections on the trailing end, ensuring a neat, professional termination. The Quickwire T-Connector system is available in both 2-core and 3-core versions, with cable lengths of 15cm or 30cm, and bespoke lengths available on request.
Designed and manufactured in Great Britain, this T-Connector delivers consistent quality and dependable performance for professional installations.
Features & Benefits
- Prewired T-Connector plug and socket for rapid installation
- 3-core 0.75mm² PVC flexible cable
- 15cm cable length (30cm option available)
- Factory ferruled connections on trailing end
- Bespoke cable lengths available on request
- Designed and manufactured in Great Britain
Technical Specification
Plug Specifications
- Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
- Poles: 3-pole
- Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
- Conductor Size: 0.5mm² – 1.5mm²
- Termination: Screw terminals
- Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
- Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
- IP Rating: IP20 (when plugged in)
Socket Specifications
- Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
- Poles: 3-pole
- Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242Y or 6242B), solid cores (Class 1)
- Termination: Utilises rapid Quickwire push-fit technology
- Cord Grip: Fully automatic
- Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
- Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
- IP Rating: IP30
