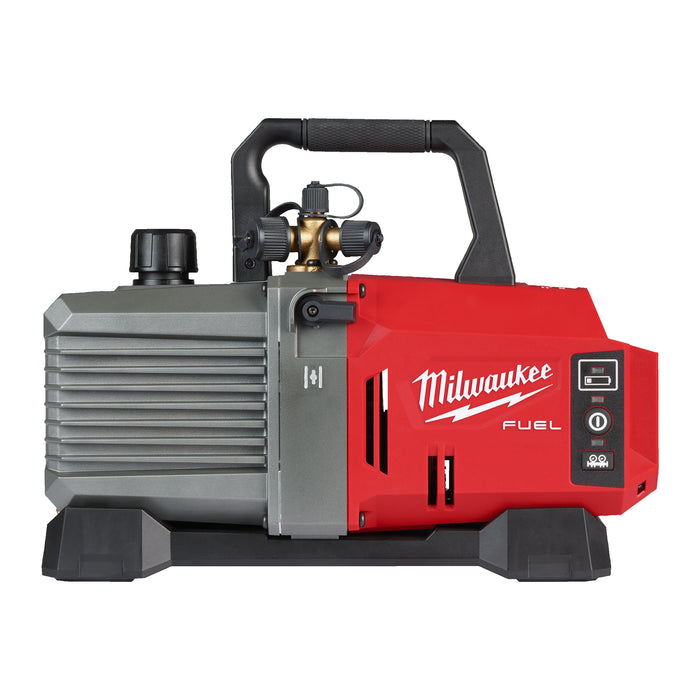

Milwaukee M18FVP5-0 18V FUEL Brushless Vacuum Pump - Bare Unit

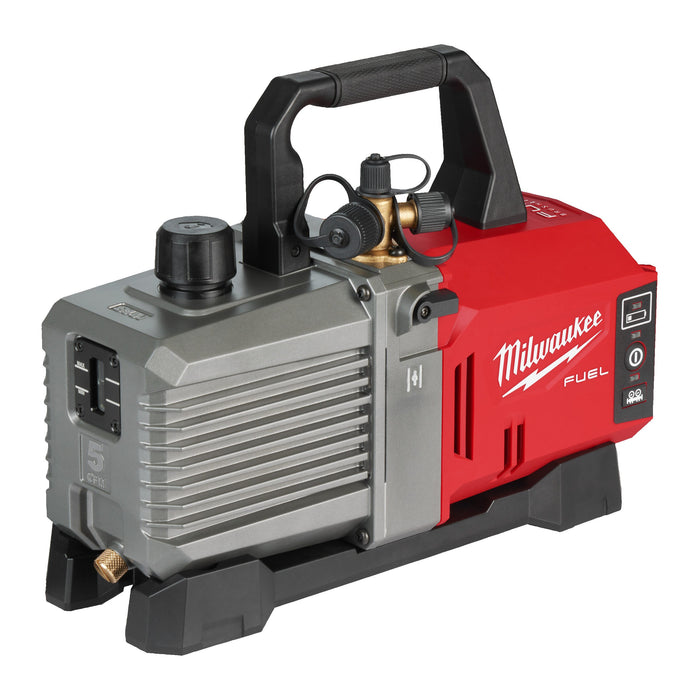

Milwaukee M18FVP5-0 M18 FUEL™ 18V 5 CFM Brushless Vacuum Pump – Bare Unit

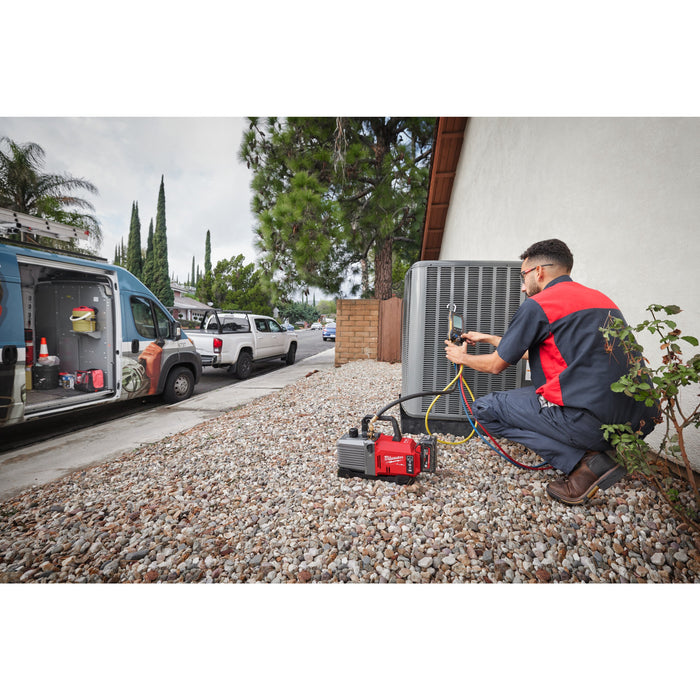

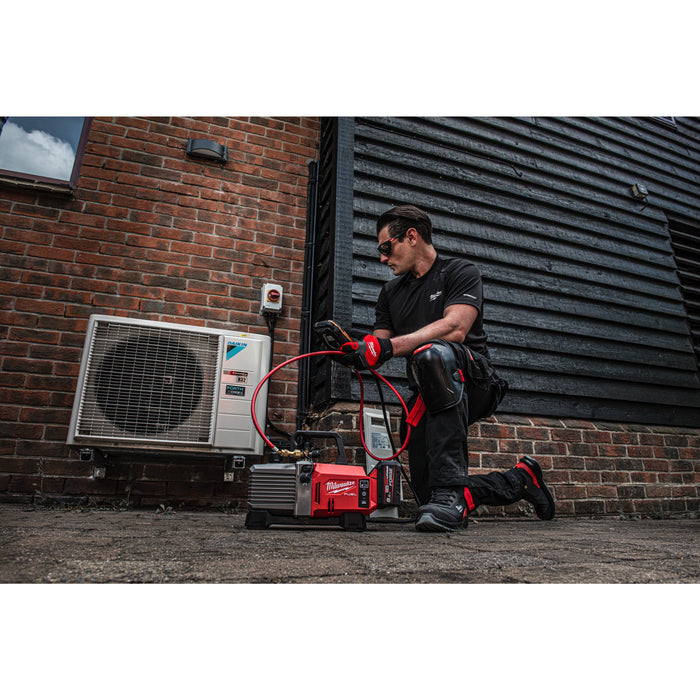

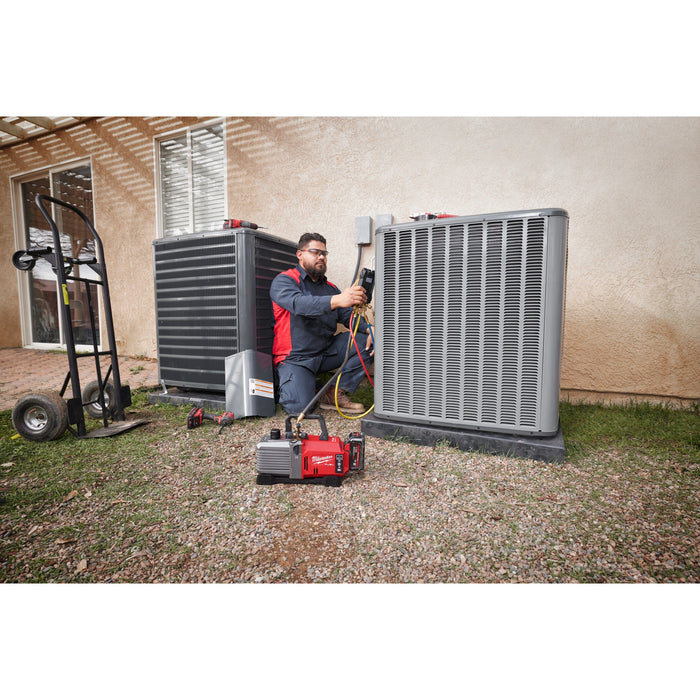

The Milwaukee M18FVP5-0 M18 FUEL™ Brushless Vacuum Pump is a professional cordless solution for evacuating air-conditioning and refrigeration systems without relying on generators, extension leads or temporary mains power. Delivering corded-equivalent performance, it is ideal for HVAC engineers who require fast, portable and dependable system evacuation on site.
Powered by Milwaukee's POWERSTATE™ brushless motor, REDLINK PLUS™ electronic intelligence and REDLITHIUM™ battery technology, the pump provides a flow rate of 142 litres per minute and an ultimate vacuum of 25 microns. When used with an M18™ HIGH OUTPUT™ 8.0Ah battery, it delivers up to 90 minutes of runtime in Manifold Mode or up to 60 minutes in Default Mode, depending on operating conditions.

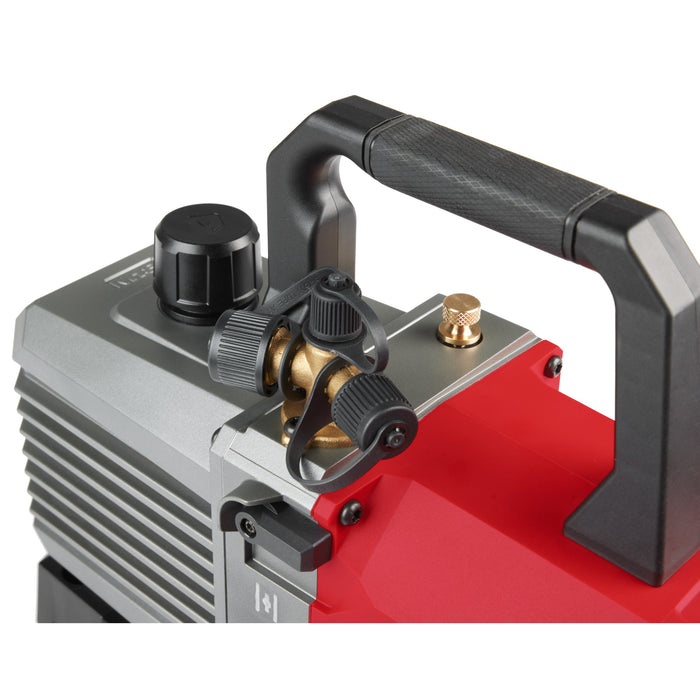

The pump features 1/2-inch, 3/8-inch and 1/4-inch intake ports, together with a supplied 5/16-inch adaptor, allowing straightforward connection to a range of common HVAC hose sizes. A check valve helps maintain the vacuum when the pump is switched off, while the integrated ball valve isolates the pump from the system to support quick battery changes without losing the vacuum.

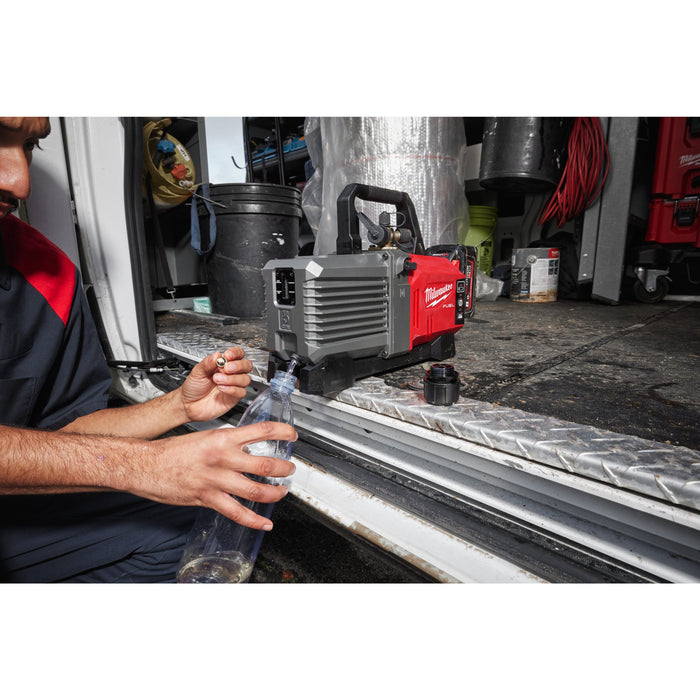

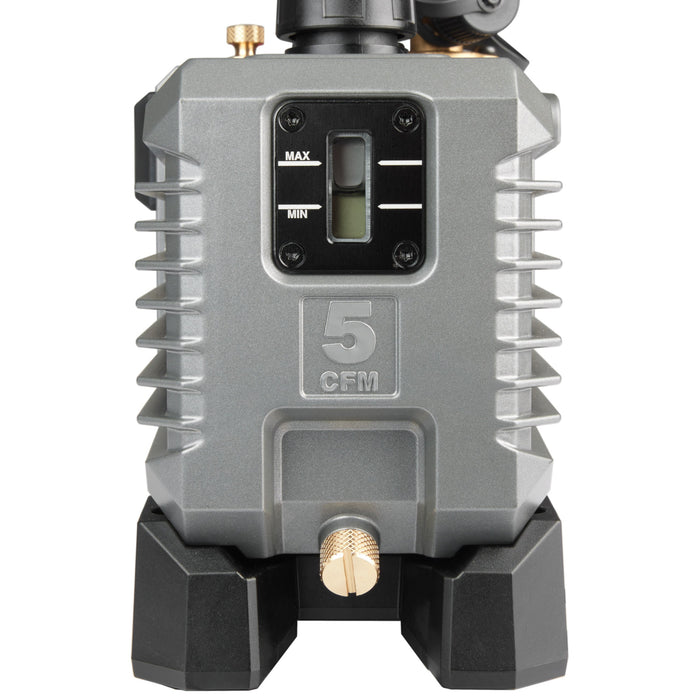

Designed to simplify routine servicing, the M18FVP5-0 includes a gas ballast valve to help reduce the frequency of oil changes, a large oil filling port that removes the need for a funnel and an angled drain for cleaner oil replacement. Audible and visual low-battery warnings provide clear notification when the fitted battery is running low.
Key Features
- Professional cordless vacuum pump designed for HVAC and refrigeration servicing.
- Delivers corded-equivalent performance without generators or temporary mains power.
- Provides up to 90 minutes of runtime in Manifold Mode with an M18™ HIGH OUTPUT™ 8.0Ah battery.
- Provides up to 60 minutes of runtime in Default Mode with an M18™ HIGH OUTPUT™ 8.0Ah battery.
- High 142L/min flow rate supports fast system evacuation.
- Achieves an ultimate vacuum of 25 microns.
- Compatible with A1 and A2L refrigerant classes.

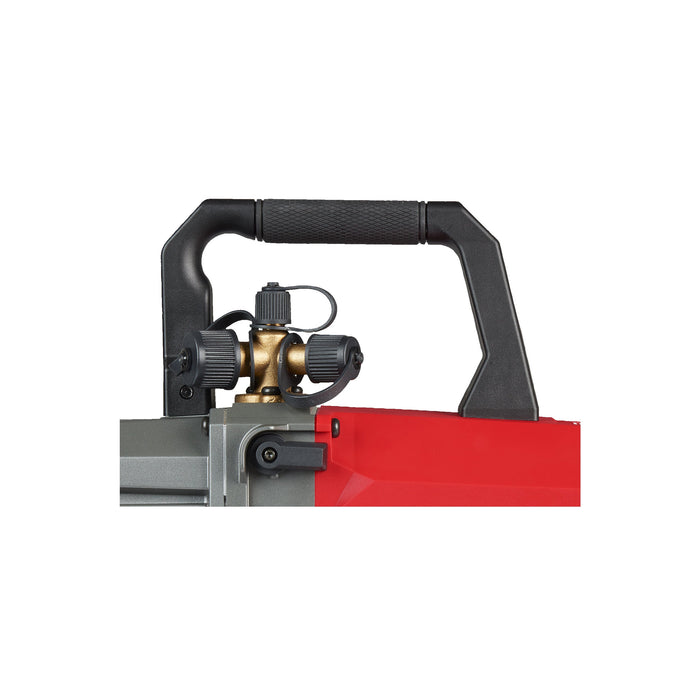

- Features 1/2-inch, 3/8-inch and 1/4-inch intake ports.
- Supplied 5/16-inch adaptor accommodates additional hose sizes.
- Check valve helps protect the vacuum when the pump is not operating.

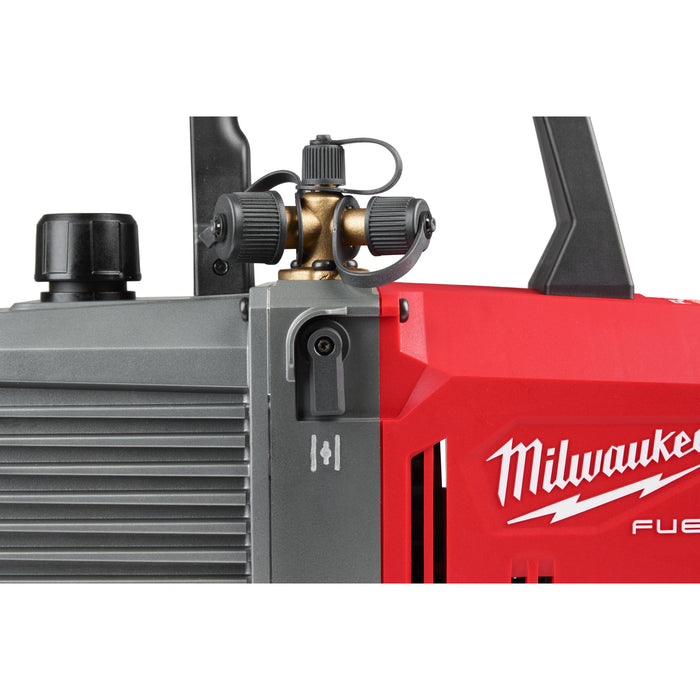

- Ball valve isolates the pump from the system for convenient battery changes.

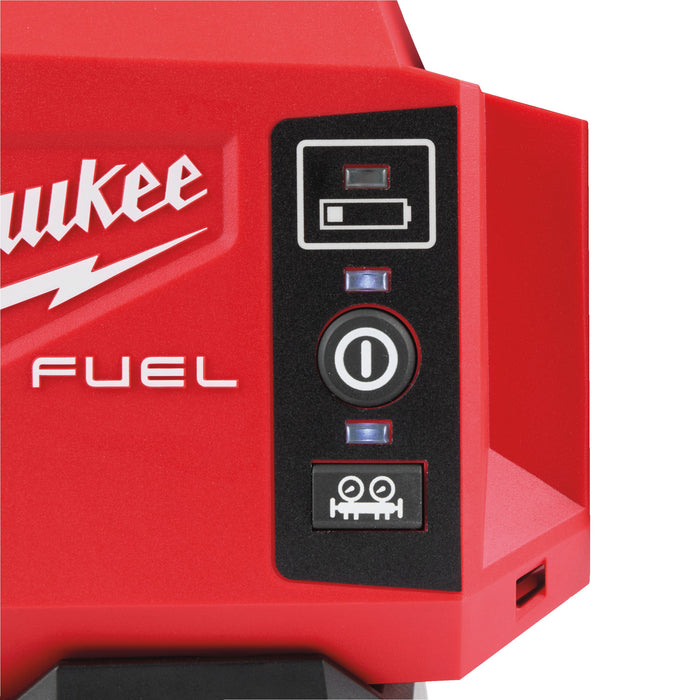

- Audible and visual low-battery alerts provide clear charge notification.
- Gas ballast valve helps reduce the required frequency of oil changes.

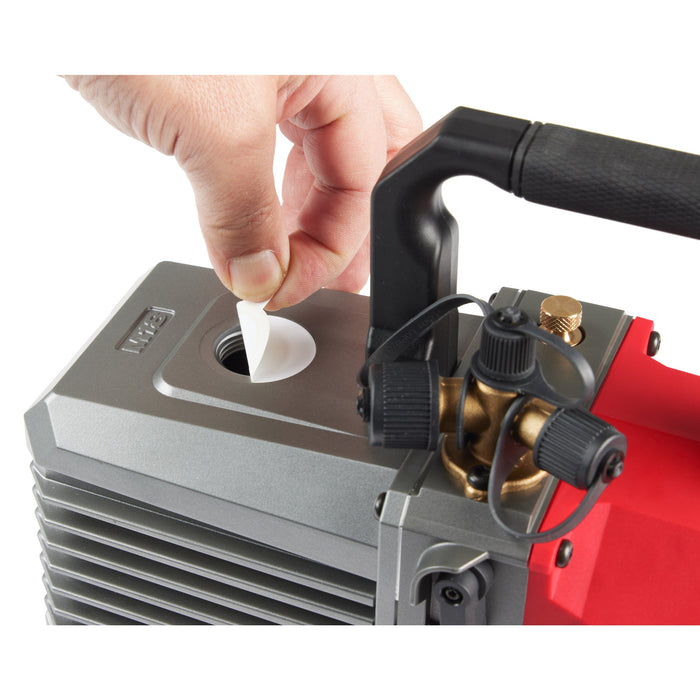

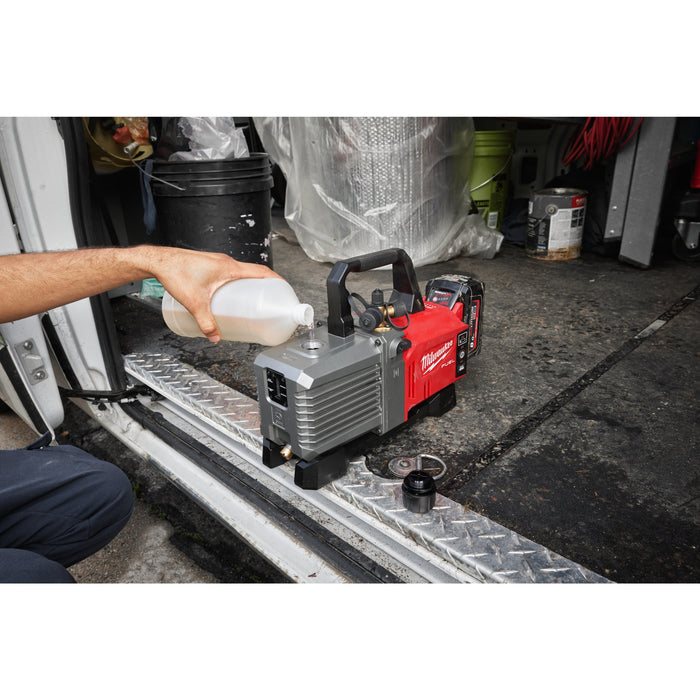

- Large oil filling port allows easier filling without a funnel.
- Angled oil drain helps provide cleaner and more controlled oil changes.
- POWERSTATE™ brushless motor delivers efficient power and durability.
- REDLINK PLUS™ electronics optimise performance and provide overload protection.
- Compatible with all Milwaukee M18™ lithium-ion batteries.
Technical Specifications
- Manufacturer: Milwaukee
- Model: M18FVP5-0
- Part Number: 4933492853
- Product Type: Cordless Vacuum Pump
- Platform: M18 FUEL™
- Voltage: 18V DC
- Motor Type: POWERSTATE™ Brushless
- Battery Type: Li-Ion
- Batteries Supplied: None (Bare Unit)
- Battery Compatibility: All Milwaukee M18™ Batteries
- Flow Rate: 142L/min (5 CFM)
- Ultimate Vacuum: 25 Microns
- Intake Ports: 1/2", 3/8" and 1/4"
- Additional Adaptor: 5/16"
- Oil Capacity: 500ml
- Refrigerant Classes: A1 and A2L
- Maximum Runtime in Manifold Mode: Up to 90 Minutes with M18 HB8 Battery
- Maximum Runtime in Default Mode: Up to 60 Minutes with M18 HB8 Battery
- Weight with Battery: 9.7kg with M18 HB8 Battery
- EAN: 4058546477240
- Supplied In: No kitbox or carry bag supplied
Ideal Applications

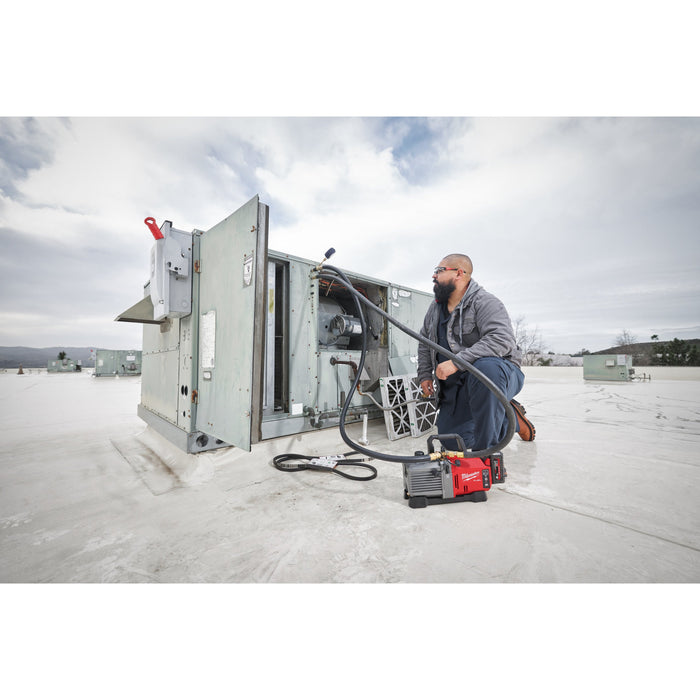

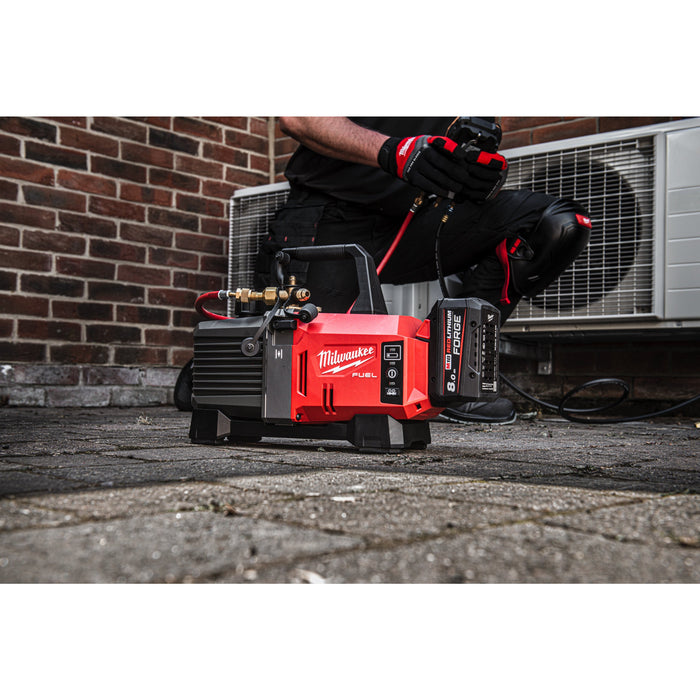

Ideal for air-conditioning engineers, refrigeration technicians, heat pump installers, mechanical contractors and HVAC maintenance professionals evacuating A1 and A2L refrigerant systems during installation, servicing and repair work.
What's Included
- 1 × Milwaukee M18FVP5-0 M18 FUEL™ 5 CFM Vacuum Pump
- 1 × 500ml Vacuum Pump Oil Bottle
- 1 × 5/16" Adaptor
- Battery not included
- Charger not included
- No kitbox or carry bag supplied
