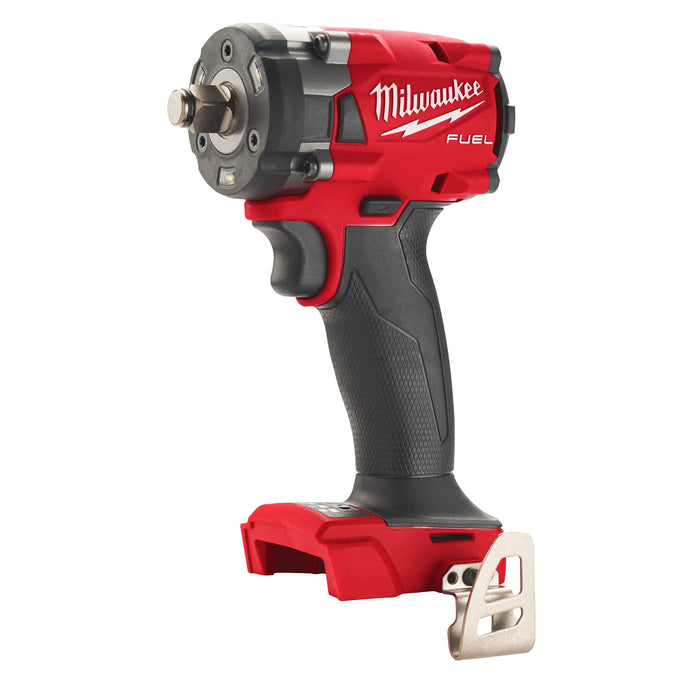

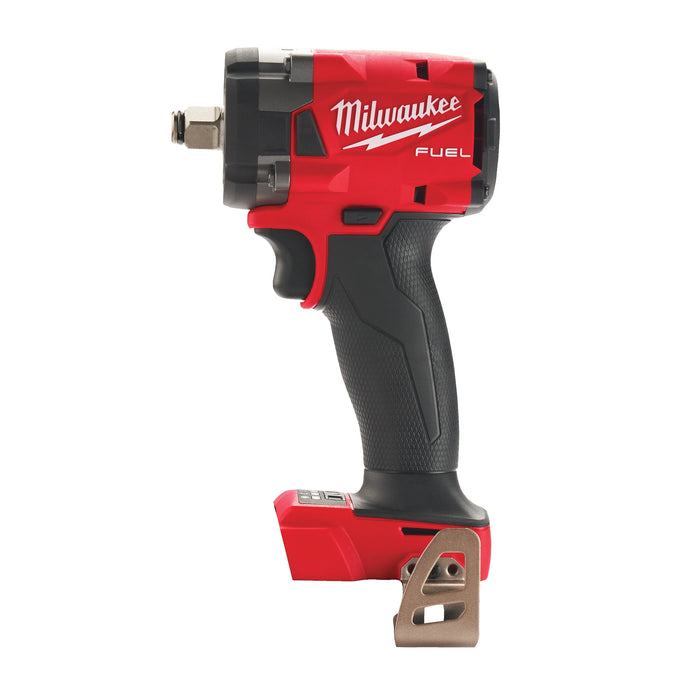

Milwaukee M18FIW2F38-0X 18V FUEL Brushless 3/8'' Compact Impact Wrench with Friction Ring & Case - Bare Unit
Milwaukee M18FIW2F38-0X M18 FUEL™ 18V 3/8" Compact Impact Wrench with Friction Ring and HD Box – Bare Unit
The Milwaukee M18FIW2F38-0X M18 FUEL™ Compact Impact Wrench combines impressive fastening performance with an exceptionally compact design. Measuring only 124mm in length, this professional 18V impact wrench provides excellent access in confined spaces while delivering up to 339Nm of fastening torque.
Milwaukee's 4-Mode DRIVE CONTROL allows the speed and torque output to be adjusted for different fastening applications. The dedicated bolt removal mode delivers maximum torque before automatically reducing the rotational speed once the fastener has loosened, helping to prevent dropped nuts and bolts. Auto shut-off mode limits fastening torque to approximately 34Nm, supporting controlled hand-tight installation and reducing the risk of overtightening.
Built around the Milwaukee FUEL™ platform, the tool combines a POWERSTATE™ brushless motor, REDLINK PLUS™ electronic intelligence and REDLITHIUM™ battery technology to provide excellent power, runtime and durability. A 3/8" square friction ring enables quick socket changes, while integrated Tri-LED lighting improves visibility around the fastener. This bare unit is supplied with a reversible belt hook and a robust HD Box.
Key Features
- Compact M18 FUEL™ impact wrench designed for high-performance fastening in confined spaces.
- Produces up to 339Nm of fastening torque and 339Nm of nut-busting torque.
- Only 124mm in overall length for improved access in restricted working areas.
- 4-Mode DRIVE CONTROL provides adjustable speed and torque settings.
- Bolt removal control reduces speed after the fastener is loosened to help prevent drops.
- Auto shut-off mode limits fastening torque to approximately 34Nm to reduce overtightening.
- 3/8" square drive with friction ring for fast and secure socket changes.
- Tri-LED work lights provide clear, high-definition illumination around the fastening point.
- POWERSTATE™ brushless motor delivers excellent power, efficiency and durability.
- REDLINK PLUS™ electronics provide advanced overload protection and performance control.
- Reversible belt hook supports convenient tool storage between applications.
- Compatible with all Milwaukee M18™ lithium-ion batteries.
Technical Specifications
- Manufacturer: Milwaukee
- Model: M18FIW2F38-0X
- Part Number: 4933478650
- Product Type: Cordless Compact Impact Wrench
- Platform: M18 FUEL™
- Voltage: 18V
- Motor Type: POWERSTATE™ Brushless
- Tool Reception: 3/8" Square Drive
- Socket Retention: Friction Ring
- Fastening Torque: 102 / 203 / 339 / 34Nm
- Nut-Busting Torque: 339Nm
- No-Load Speed: 0–800 / 0–1,650 / 0–2,400 / 0–1,000rpm
- Impact Rate: 0–1,000 / 0–2,400 / 0–3,500ipm
- Maximum Bolt Diameter: M16
- Overall Length: 124mm
- Battery Type: Li-Ion
- Batteries Supplied: 0
- Battery Compatibility: All Milwaukee M18™ Batteries
- Weight with Battery: 1.8kg with M18 B5 Battery
- Sound Pressure Level: 99.79dB(A)
- Sound Pressure Level Uncertainty: 3dB(A)
- Sound Power Level: 110.79dB(A)
- Sound Power Level Uncertainty: 3dB(A)
- Impact Tightening Vibration: 17.24m/s²
- Vibration Uncertainty: 1.5m/s²
- EAN: 4058546348434
- Supplied In: HD Box
Ideal Applications
Ideal for automotive technicians, mechanics, engineers, maintenance teams, construction professionals and installers carrying out wheel, machinery, steelwork and general high-torque fastening tasks, particularly where access is restricted.
What's Included
- 1 × Milwaukee M18FIW2F38-0X M18 FUEL™ 18V 3/8" Compact Impact Wrench
- 1 × Reversible Belt Hook
- 1 × Milwaukee HD Box
- Battery not included
- Charger not included
