Milwaukee M12FRAIWF12-0 12V FUEL Brushless 1/2" Right Angle Impact Wrench with Friction Ring - Bare Unit

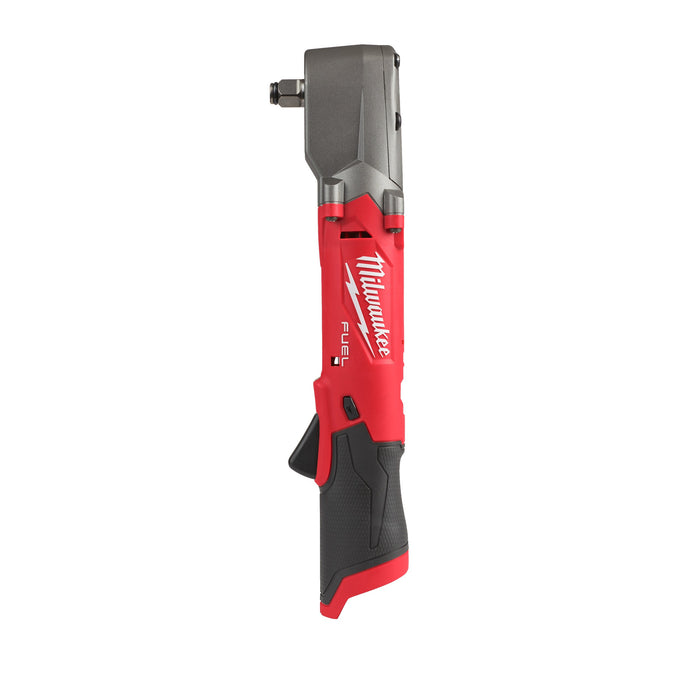

Milwaukee M12FRAIWF12-0 M12 FUEL™ 1/2" Right Angle Impact Wrench with Friction Ring – Bare Unit

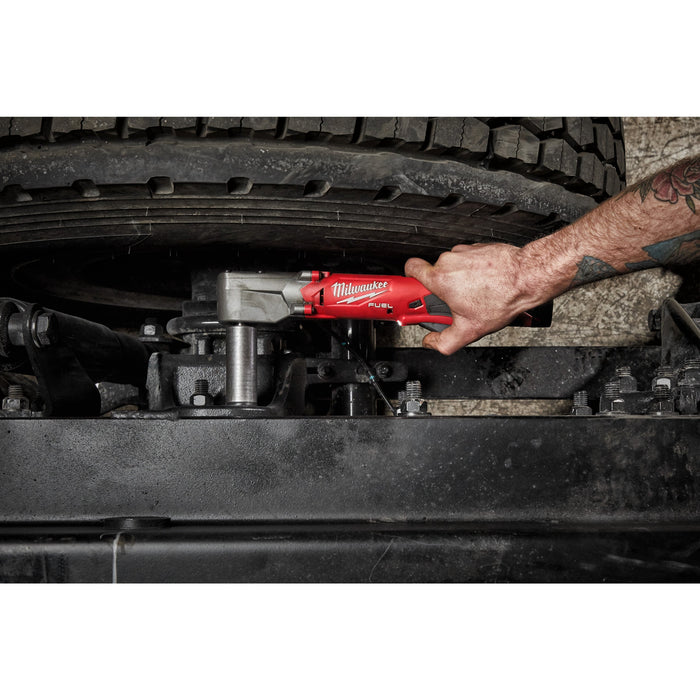

The Milwaukee M12FRAIWF12-0 M12 FUEL™ Right Angle Impact Wrench is a compact, high-performance cordless fastening tool engineered for professional mechanics, automotive technicians and maintenance engineers working in confined spaces. Its slim right-angle design provides outstanding access where conventional impact wrenches cannot reach, making it ideal for engine bays, machinery and structural applications.
Powered by Milwaukee's POWERSTATE™ brushless motor, REDLINK PLUS™ electronic intelligence and REDLITHIUM™ battery technology, the impact wrench delivers up to 270Nm of fastening torque and 300Nm of nut-busting torque. The compact 71mm head profile allows excellent manoeuvrability, while the extended body design improves reach into difficult-to-access areas.
The integrated 4-Mode DRIVE CONTROL allows users to select the optimum speed and power for the application. Auto Shut-Off Mode helps prevent over-tightening by limiting torque during fastening, while Bolt Removal Mode reduces speed after fastener breakaway for greater control when removing fixings.
A 1/2-inch square anvil with friction ring enables quick socket changes, while the bright LED work light improves visibility in darker workspaces. The premium rubber overmould offers increased comfort and enhanced resistance to corrosive workshop materials, making the tool suitable for demanding professional environments.
Key Features
- Compact right angle impact wrench for professional fastening applications.
- Delivers up to 270Nm fastening torque.
- Provides up to 300Nm nut-busting torque for stubborn fasteners.

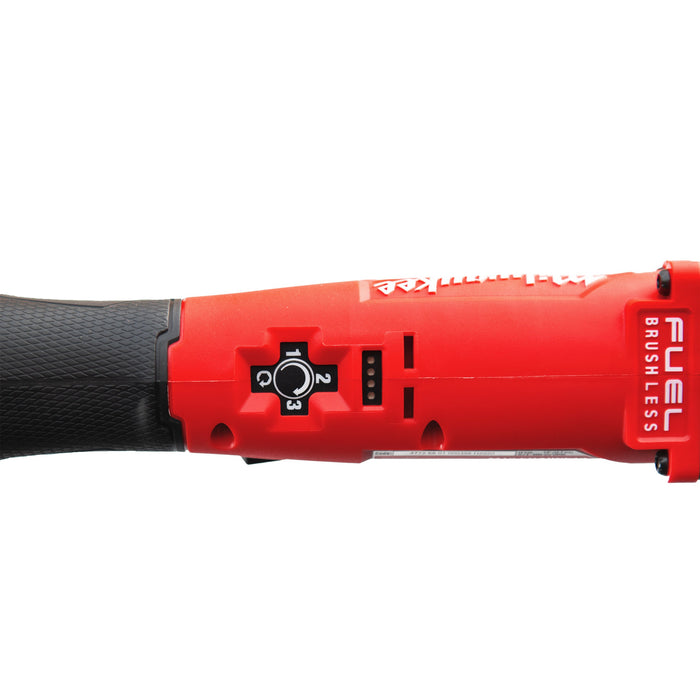

- 4-Mode DRIVE CONTROL offers precise performance for different applications.
- Auto Shut-Off Mode helps prevent over-tightening.
- Bolt Removal Mode slows the tool after fastener breakaway for improved control.

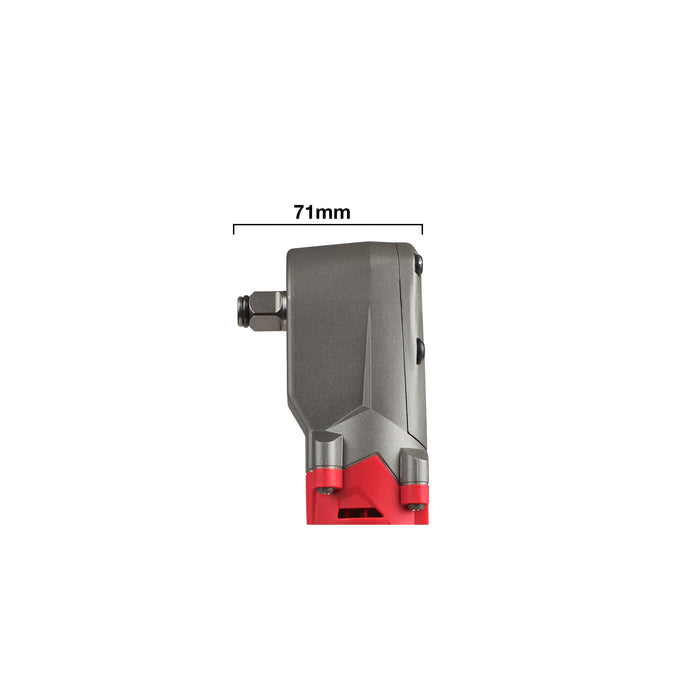

- Compact 71mm head provides excellent access in confined spaces.

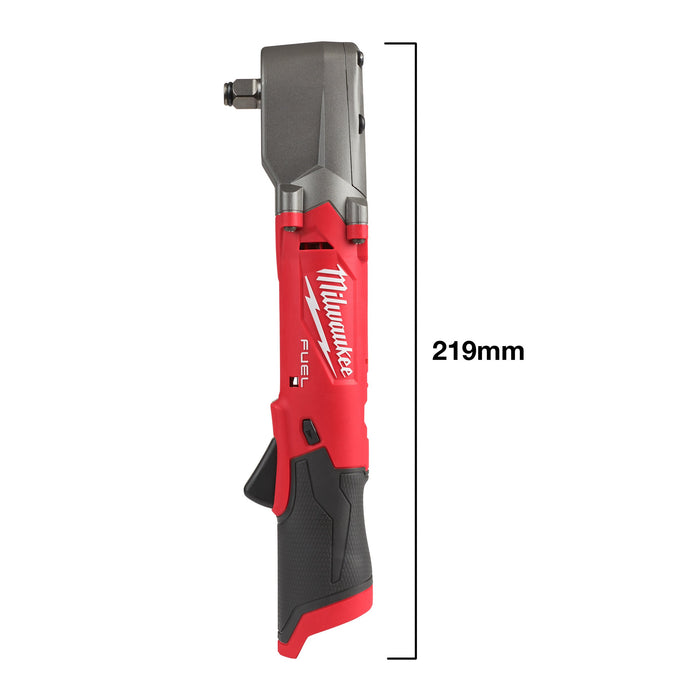

- Long body profile improves reach into difficult working areas.
- 1/2" square anvil with friction ring allows quick socket changes.
- Integrated LED work light illuminates the working area.
- Premium rubber overmould improves comfort and resists corrosive materials.
- POWERSTATE™ brushless motor delivers exceptional performance and durability.
- REDLINK PLUS™ electronics optimise performance and protect the tool and battery.
- Compatible with all Milwaukee M12™ lithium-ion batteries.
Technical Specifications
- Manufacturer: Milwaukee
- Model: M12FRAIWF12-0
- Part Number: 4933471699
- Product Type: Cordless Right Angle Impact Wrench
- Platform: M12 FUEL™
- Voltage: 12V
- Motor Type: POWERSTATE™ Brushless
- Battery Type: REDLITHIUM™ Li-Ion
- Batteries Supplied: None (Bare Unit)
- Battery Compatibility: All Milwaukee M12™ Batteries
- Drive Size: 1/2" Square with Friction Ring
- Maximum Fastening Torque: 270Nm
- Maximum Nut-Busting Torque: 300Nm
- Maximum Bolt Diameter: M16
- No-Load Speed: 0-1,150 / 0-2,300 / 0-3,000 / 0-3,000rpm
- Impact Rate: 0-1,350 / 0-2,700 / 0-3,600ipm
- Drive Modes: 4-Mode DRIVE CONTROL with Auto Shut-Off and Bolt Removal Mode
- Head Profile: 71mm
- Weight with Battery: 1.7kg (with M12 B4 Battery)
- Sound Pressure Level: 96.55dB(A)
- Sound Pressure Level Uncertainty: 3dB(A)
- Sound Power Level: 107.55dB(A)
- Sound Power Level Uncertainty: 3dB(A)
- Vibration Level: 11.25m/s²
- Vibration Uncertainty: 1.5m/s²
- EAN: 4058546295981
- Supplied In: No kitbox or carry bag supplied
Ideal Applications

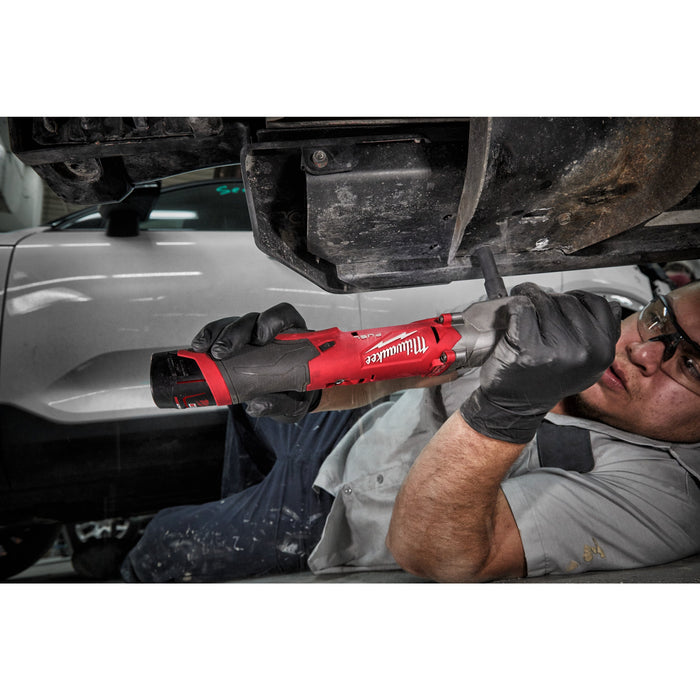

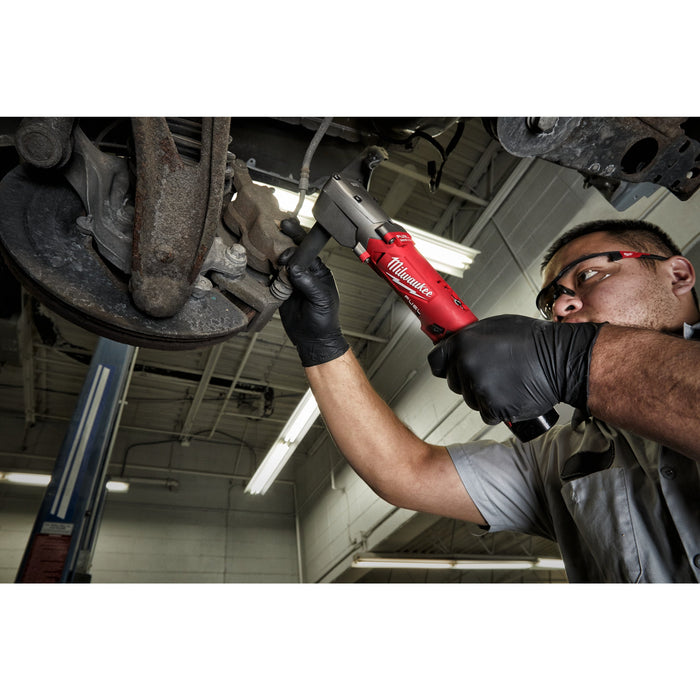

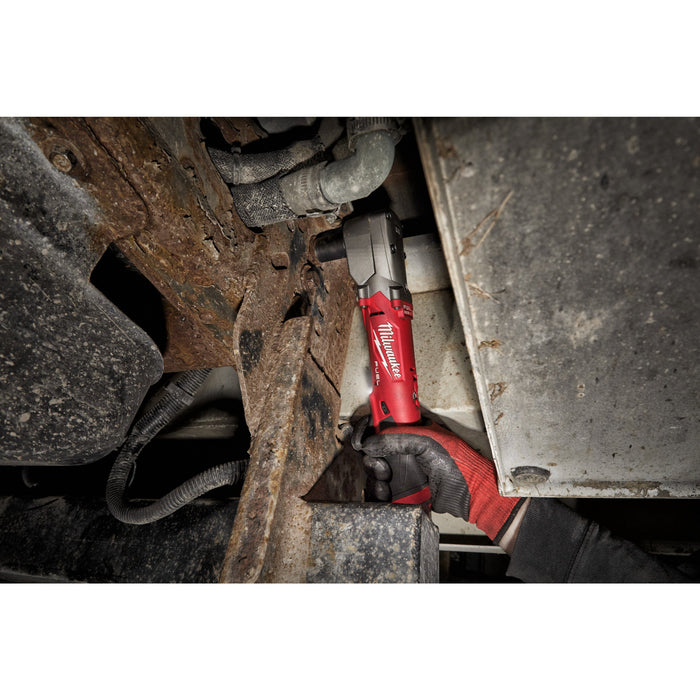

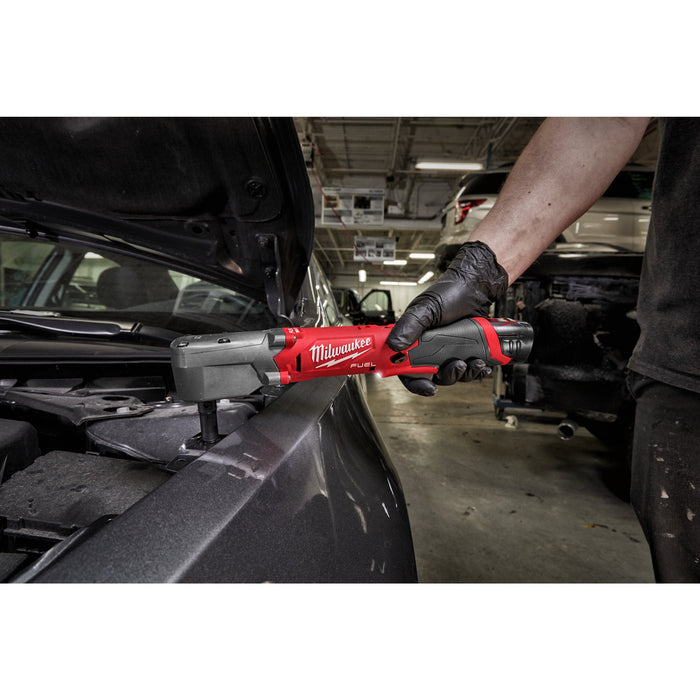

Ideal for automotive technicians, vehicle repair workshops, industrial maintenance engineers, plant mechanics, HVAC installers, fabrication professionals and service engineers requiring high torque performance in confined or difficult-to-reach locations.
What's Included
- 1 × Milwaukee M12FRAIWF12-0 M12 FUEL™ 1/2" Right Angle Impact Wrench
- Battery not included
- Charger not included
- No kitbox or carry bag supplied
Downloads
Data Sheet:
