Milwaukee M12FJS-0 12V FUEL Cordless Body Grip Jigsaw - Bare Unit

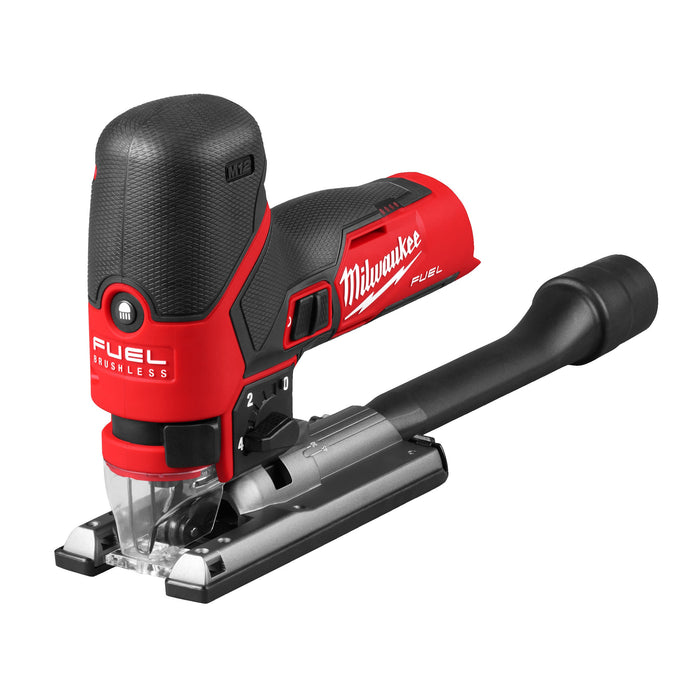

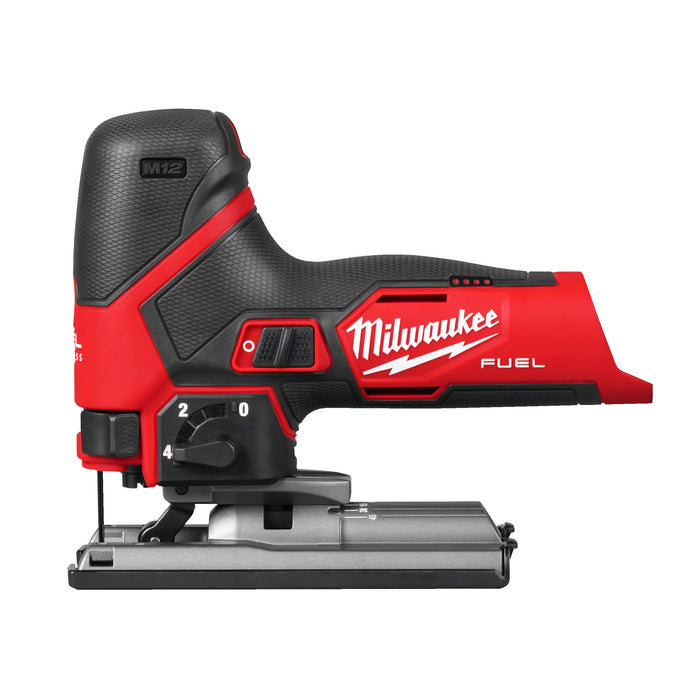

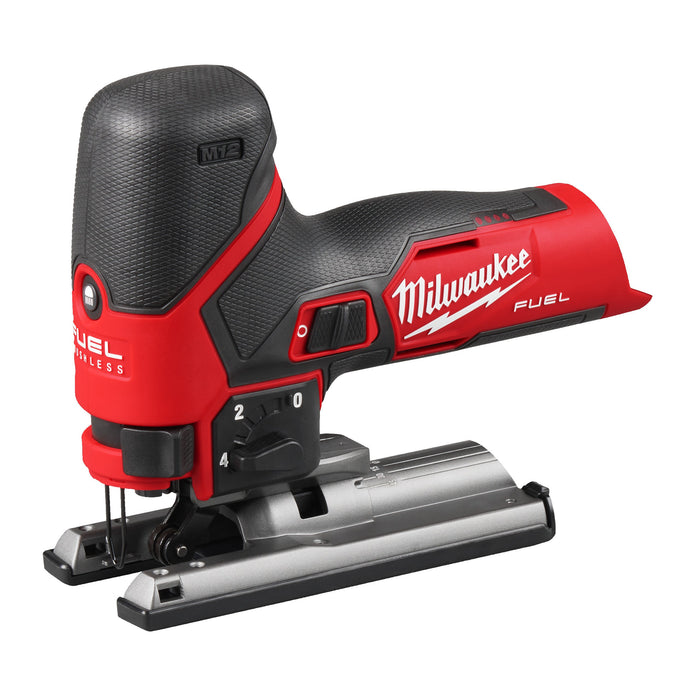

Milwaukee M12FJS-0 M12 FUEL™ 12V Brushless Body Grip Jigsaw – Bare Unit

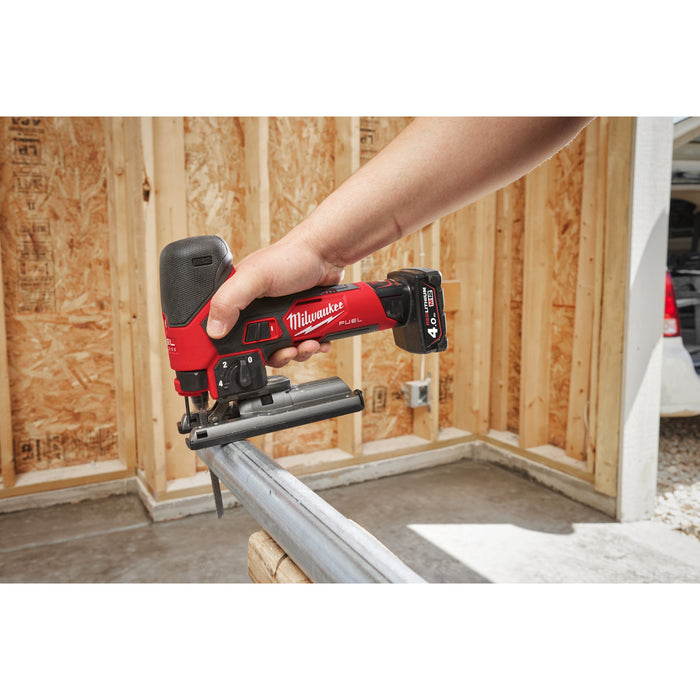

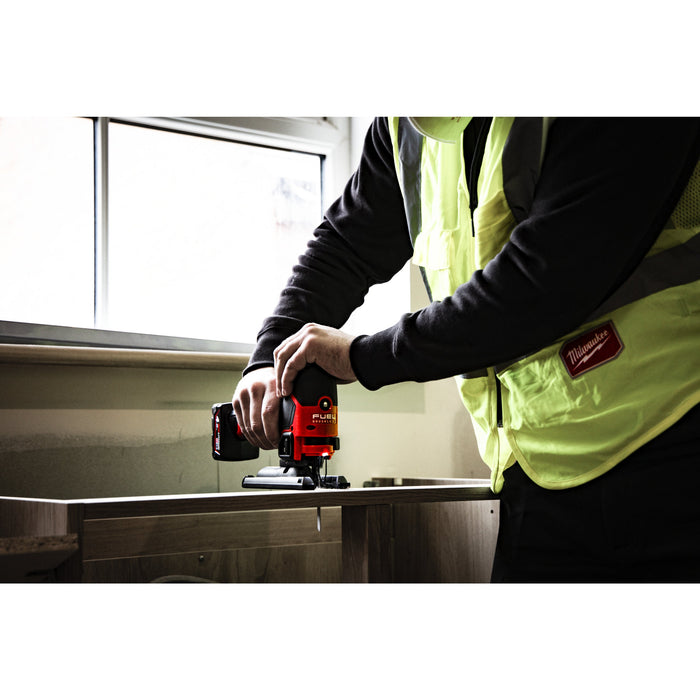

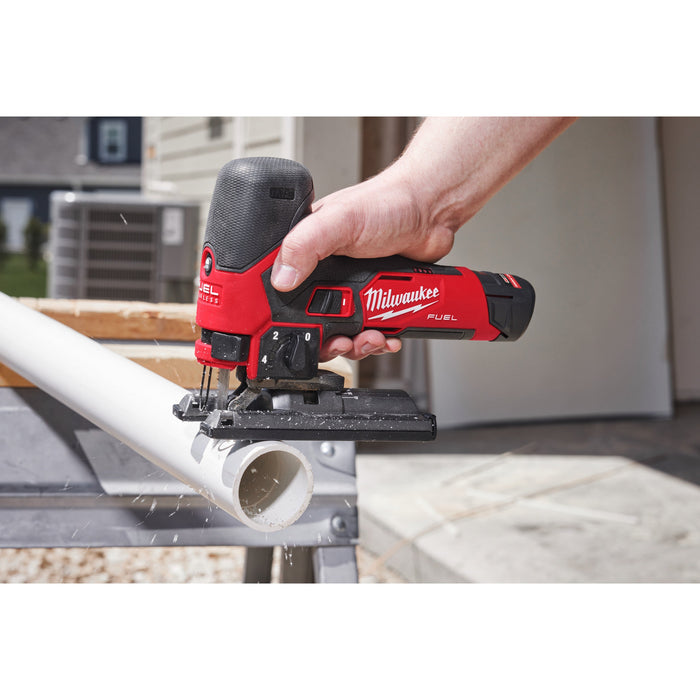

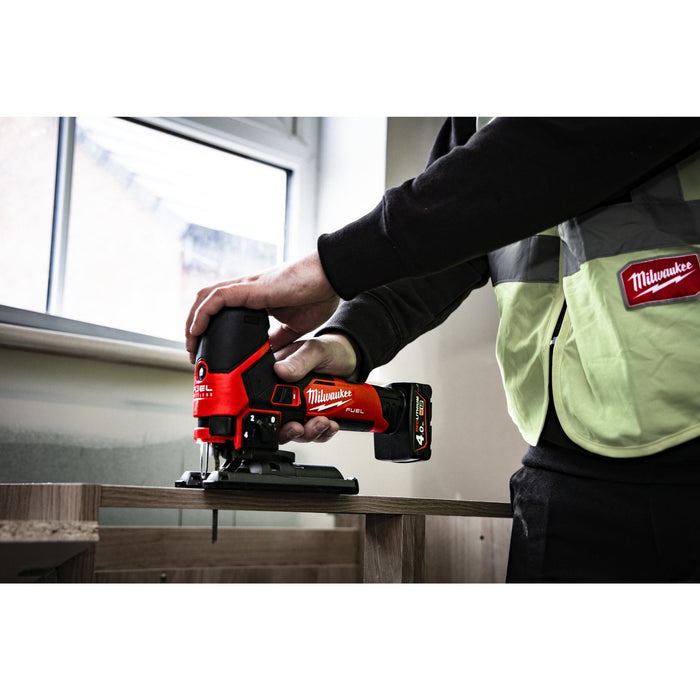

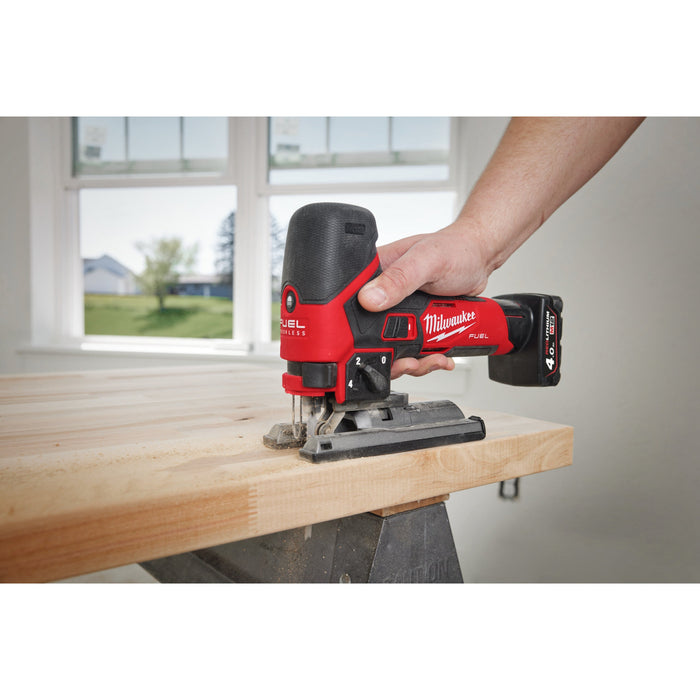

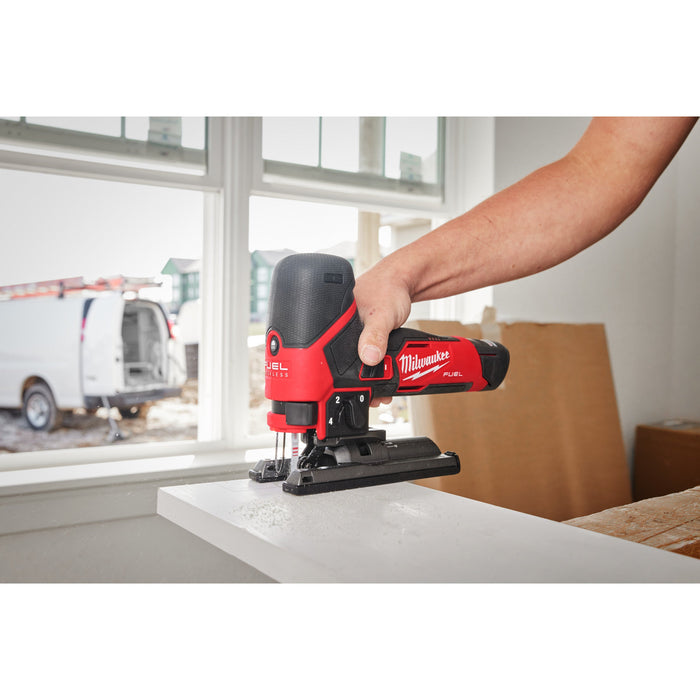

The Milwaukee M12FJS-0 M12 FUEL™ Body Grip Jigsaw is a compact, professional cordless saw designed for precise cutting in wood, steel and aluminium. Its ergonomic body grip format provides close control over the cutting line, making it ideal for detailed curves, cut-outs and general installation work in confined spaces.
Powered by Milwaukee's POWERSTATE™ brushless motor, REDLINK PLUS™ electronic intelligence and REDLITHIUM™ battery technology, the jigsaw delivers a strong balance of power, runtime and durability. When used with an M12™ 4.0Ah battery, it can cut up to 24 metres through 19mm OSB, depending on the blade, material and operating conditions.
The six-speed control includes an automatic start mode that begins at a lower speed before increasing when load is detected, helping users achieve smoother and more accurate cut starts. A 22mm stroke length and high cutting rate provide fast, controlled performance, while the five-stage cutting action combines four pendulum settings with a straight-cut setting.

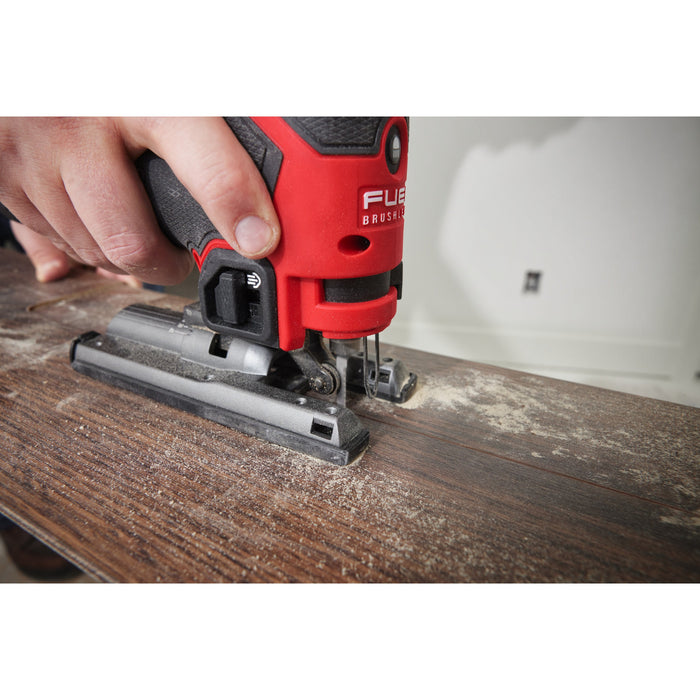

Milwaukee's patented FIXTEC™ blade clamp enables quick, tool-free blade changes. The integrated dust blower keeps the cut line visible, while the manually switchable LED improves illumination in darker working areas. A detachable soft shoe helps prevent scratches when working on delicate finished surfaces.
Key Features
- Compact M12 FUEL™ body grip jigsaw for accurate professional cutting.

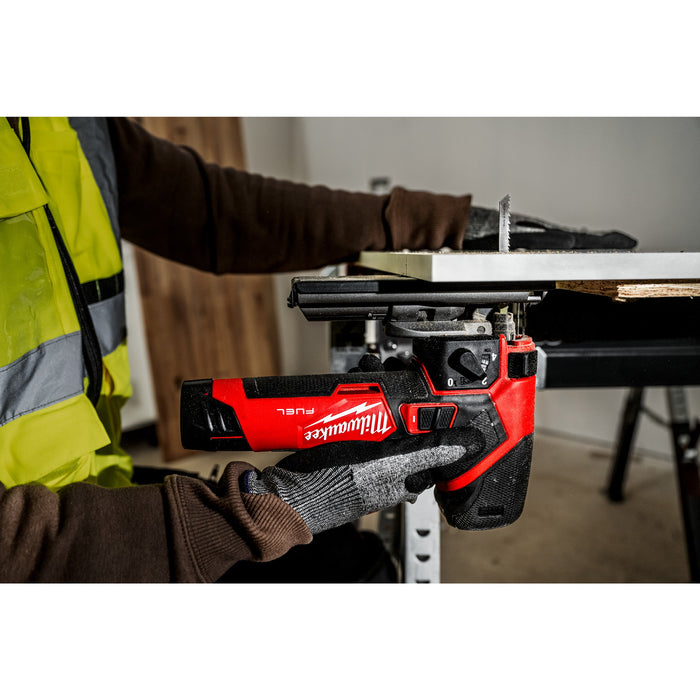

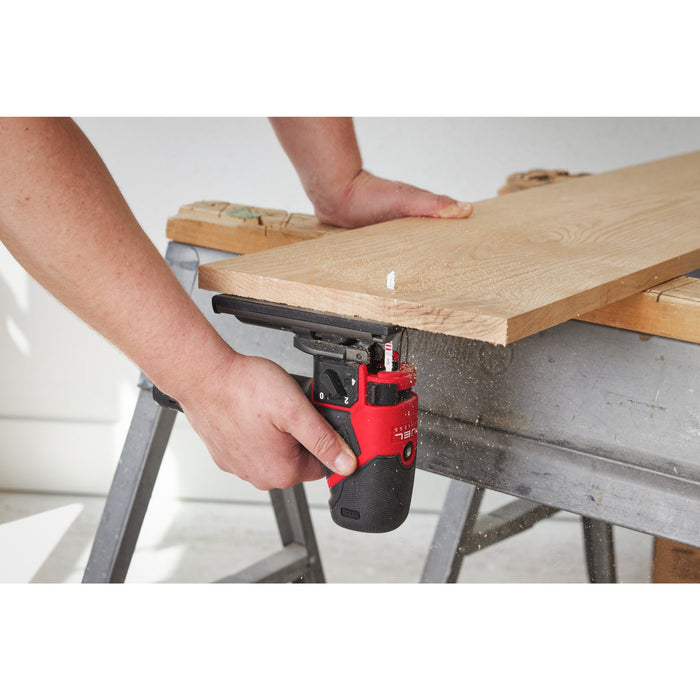

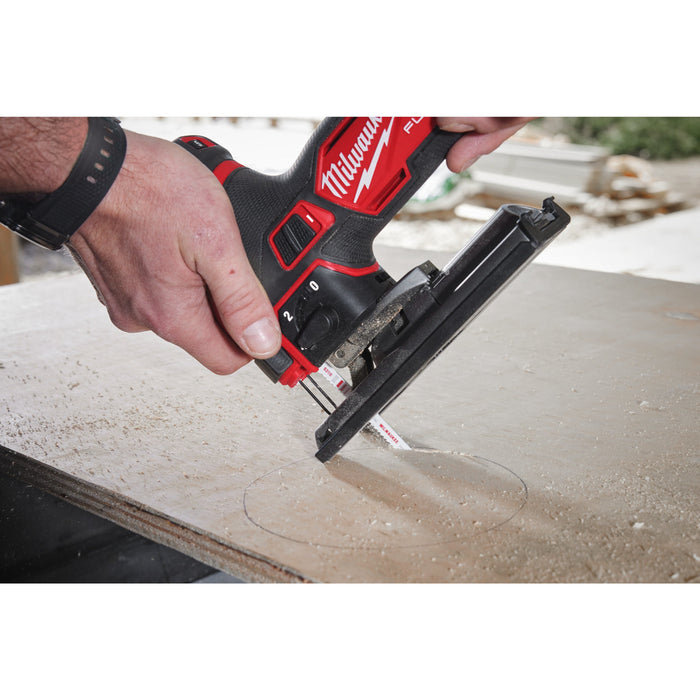

- Suitable for straight cuts, curved cuts, internal cut-outs and detailed finishing work.
- POWERSTATE™ brushless motor provides efficient cutting power and durability.
- Up to 24 metres of cutting in 19mm OSB with an M12™ 4.0Ah battery.

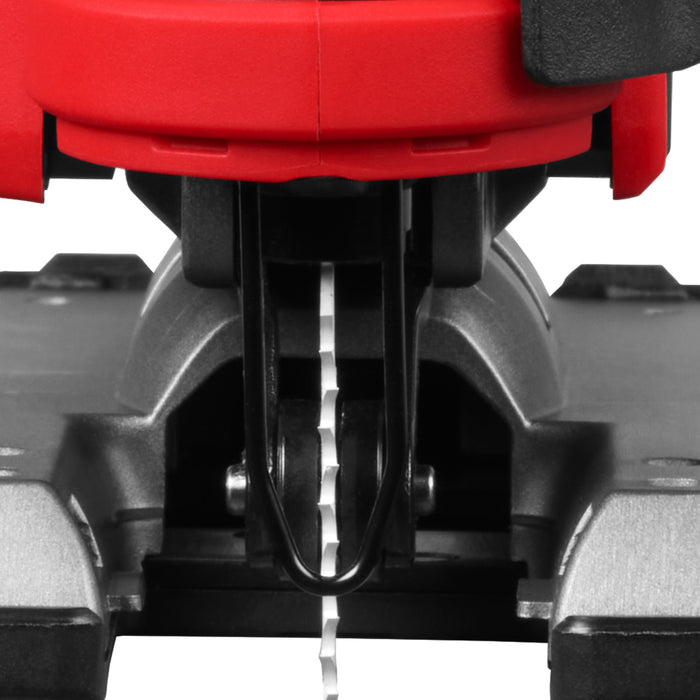

- Patented FIXTEC™ blade clamp allows fast, tool-free blade changes.

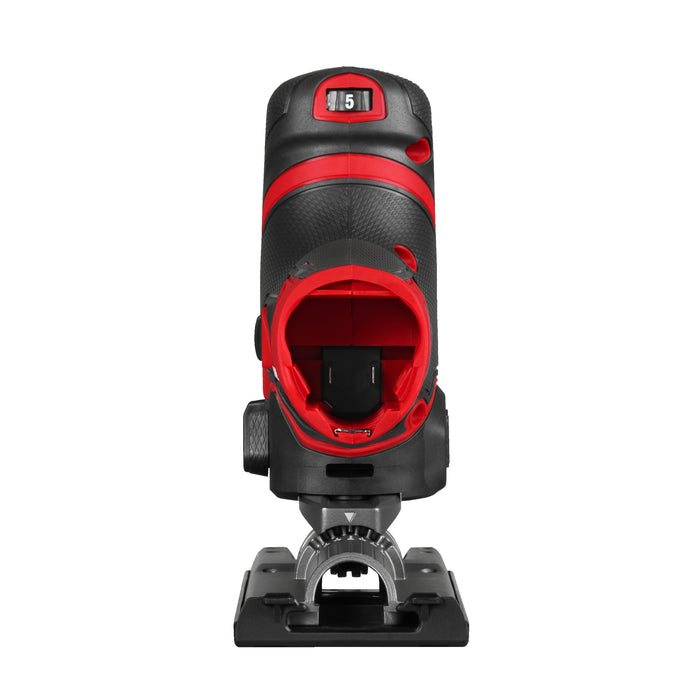

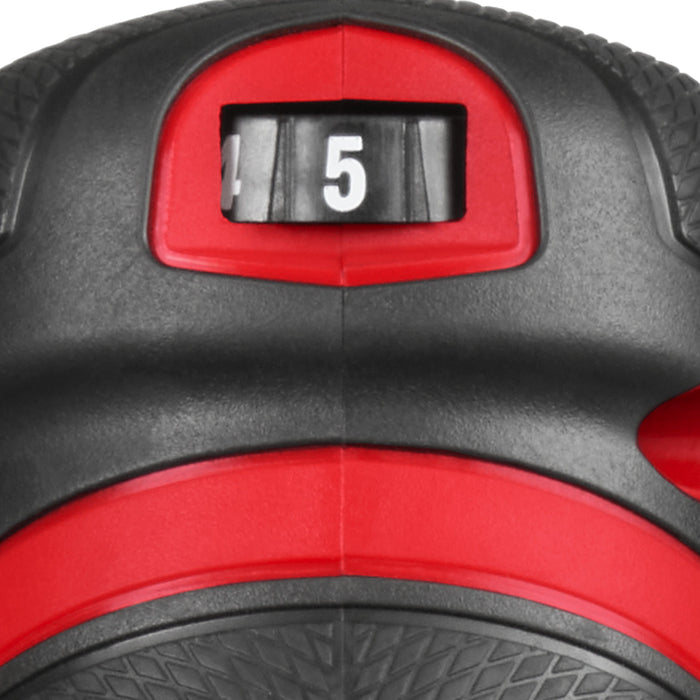

- Six speed settings provide controlled performance across different materials.
- Automatic start mode begins slowly and increases speed when load is detected.
- High stroke rate supports smooth cutting with reduced chipping and vibration.

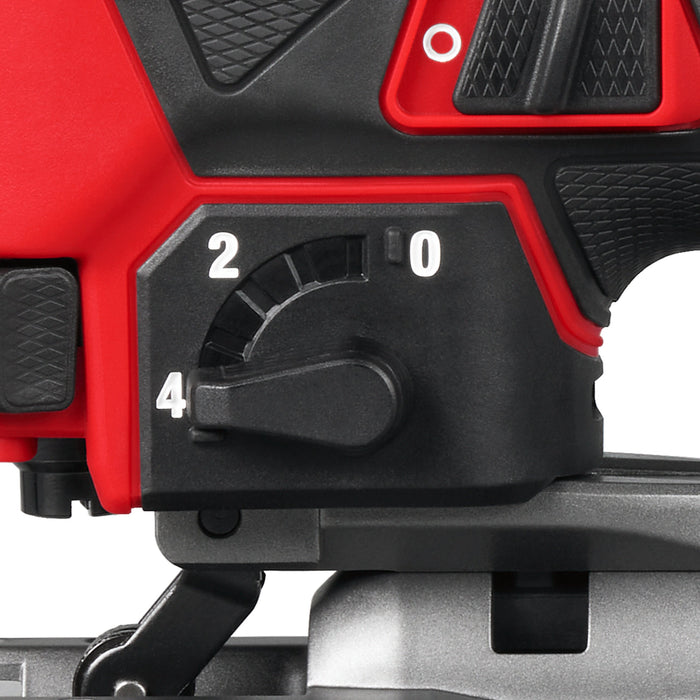

- Five-stage cutting action, including four pendulum settings and a straight-cut setting.
- Dust blower keeps the cutting line clear of wood dust.
- Integrated LED light improves visibility and can be switched off manually.
- Detachable soft shoe helps prevent marks and scratches on delicate materials.
- Supplied with a blade, dust extraction adaptor, dust cover, splinter guard and soft shoe.
- Compatible with all Milwaukee M12™ lithium-ion batteries.
Technical Specifications
- Manufacturer: Milwaukee
- Model: M12FJS-0
- Part Number: 4933500574
- Product Type: Cordless Body Grip Jigsaw
- Platform: M12 FUEL™
- Voltage: 12V
- Motor Type: POWERSTATE™ Brushless
- Battery Type: REDLITHIUM™ Li-Ion
- Batteries Supplied: None (Bare Unit)
- Battery Compatibility: All Milwaukee M12™ Batteries
- No-Load Stroke Rate: 800–3,000spm
- Stroke Length: 22mm
- Bevel Capacity: 45°
- Maximum Cutting Capacity in Wood: 70mm
- Maximum Cutting Capacity in Steel: 3mm
- Maximum Cutting Capacity in Aluminium: 3mm
- Pendulum Action: Yes
- Pendulum Settings: Five-stage action, including four pendulum settings and straight cut
- Weight with Battery: 1.7kg with M12 B2 Battery
- EAN: 4058546618766
- Supplied In: No kitbox or carry bag supplied
Ideal Applications

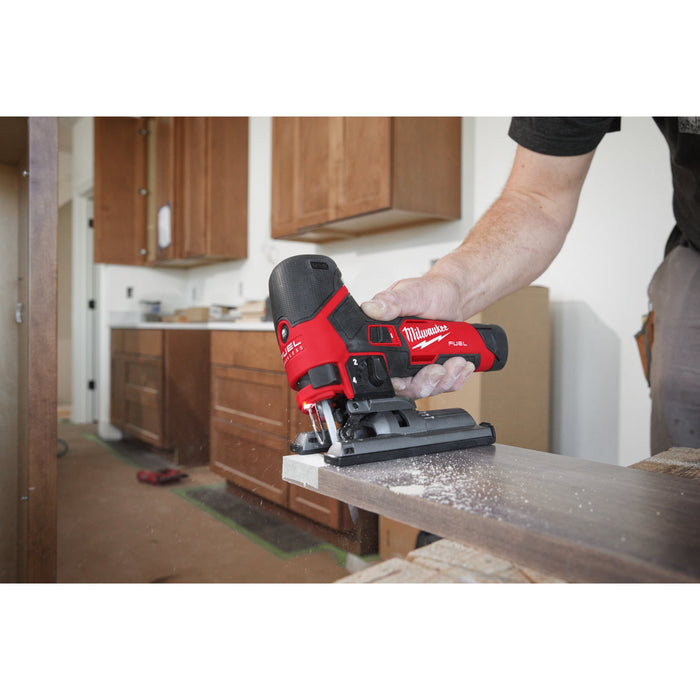

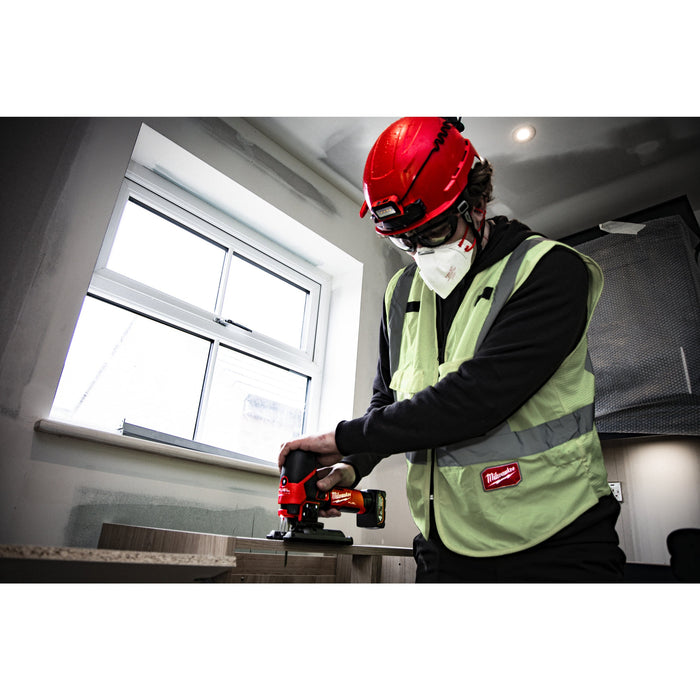

Ideal for carpenters, joiners, kitchen fitters, flooring installers, shopfitters, electricians and maintenance professionals cutting timber, sheet materials, aluminium and thin steel.
What's Included
- 1 × Milwaukee M12FJS-0 M12 FUEL™ Body Grip Jigsaw
- 1 × Jigsaw Blade

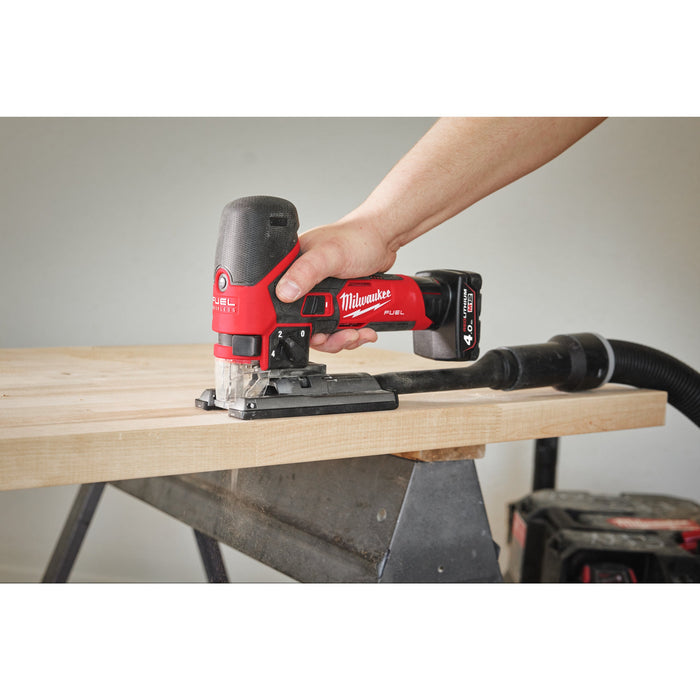

- 1 × Dust Extraction Adaptor
- 1 × Dust Cover
- 1 × Splinter Guard
- 1 × Soft Shoe
- Battery not included
- Charger not included
- No kitbox or carry bag supplied
Downloads
Data Sheet:
