LIVE Electrical RKN320B-030 3P+N 20A B Curve 10kA 30mA Type A Bidirectional RCBO

LIVE Electrical RKN320B-030 3P+N 20A B Curve 10kA 30mA Type A Bidirectional RCBO

Product Description

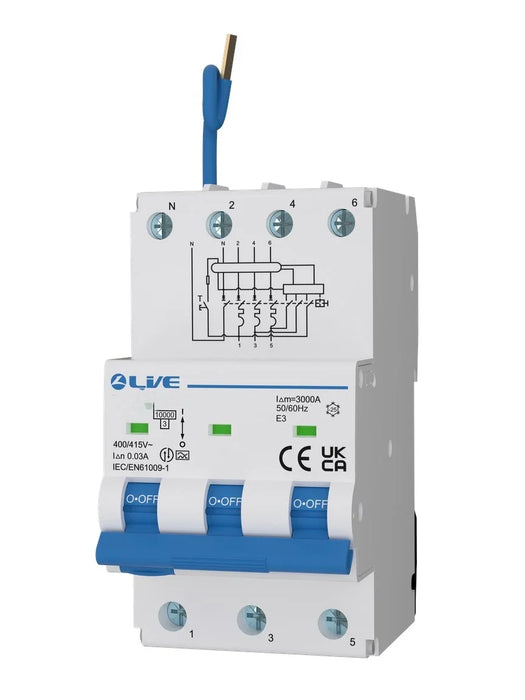

The LIVE Electrical RKN320B-030 is a 3P+N bidirectional Type A RCBO designed to provide combined overcurrent and residual current protection for 400/415V electrical installations. Rated at 20A with a B curve tripping characteristic, 30mA residual current sensitivity and a 10kA breaking capacity, it provides reliable circuit protection for suitable three-phase applications.

Featuring bidirectional operation and a switched neutral, this RCBO is suitable for installations where current may flow in either direction. It combines residual current and overcurrent protection within a single device and complies with IEC/EN 61009-1.

Key Features & Benefits

• 3P+N configuration for suitable three-phase electrical circuits.
• 20A rated current with B curve tripping characteristic.
• 10kA rated breaking capacity for robust fault protection.
• 30mA rated residual current sensitivity.
• Type A residual current protection.
• Bidirectional design suitable for current flow in either direction.
• Switched neutral configuration.
• Designed for 400/415V AC electrical systems.
• Complies with IEC/EN 61009-1.

Technical Specification

• Manufacturer: LIVE Electrical
• Product Code: RKN320B-030
• Device Type: RCBO
• Poles: 3P+N
• Rated Current: 20A
• Rated Operating Voltage: 400/415V AC
• Tripping Curve: B Curve
• Breaking Capacity: 10kA
• Residual Current Type: Type A
• Rated Sensitivity: 30mA
• Operation: Bidirectional
• Neutral: Switched Neutral
• Terminal Torque: 1.2/2.0Nm
• Standard: IEC/EN 61009-1
