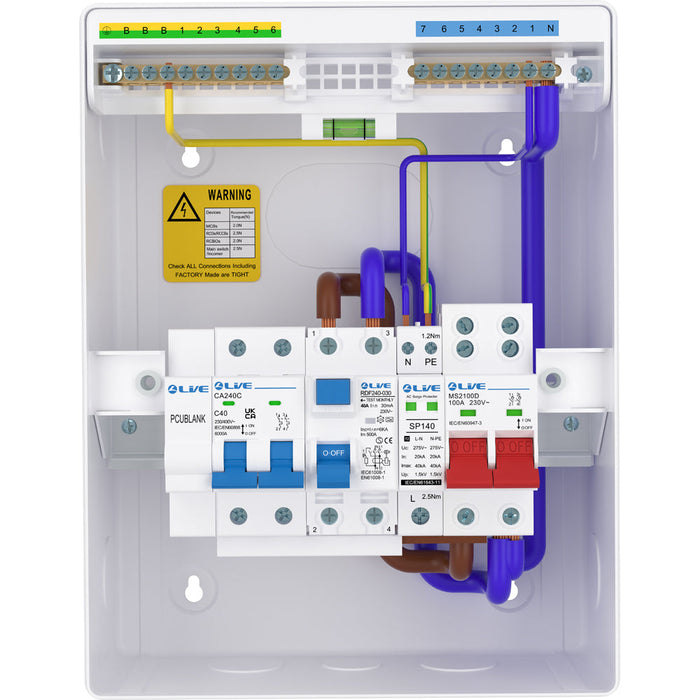

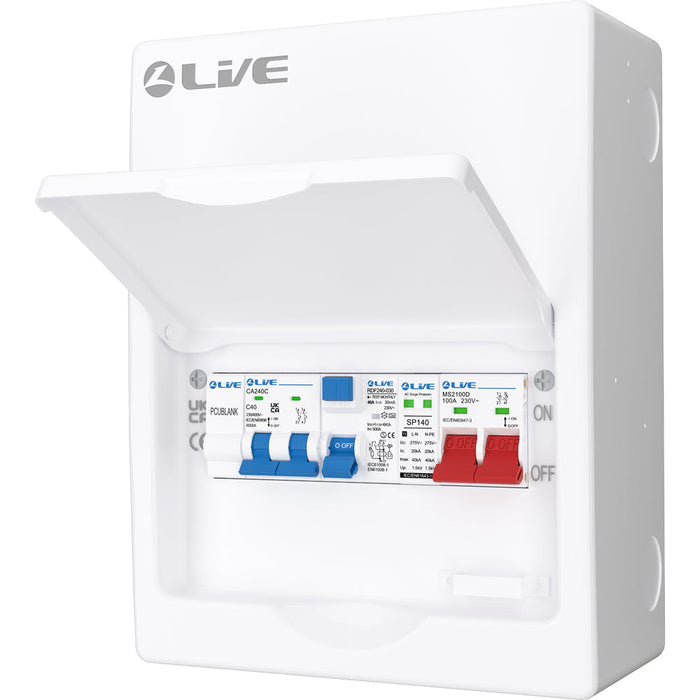

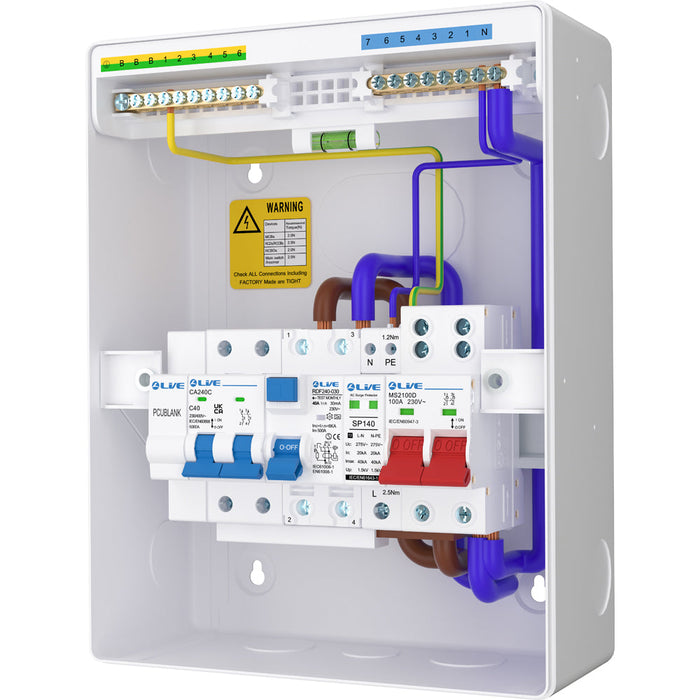

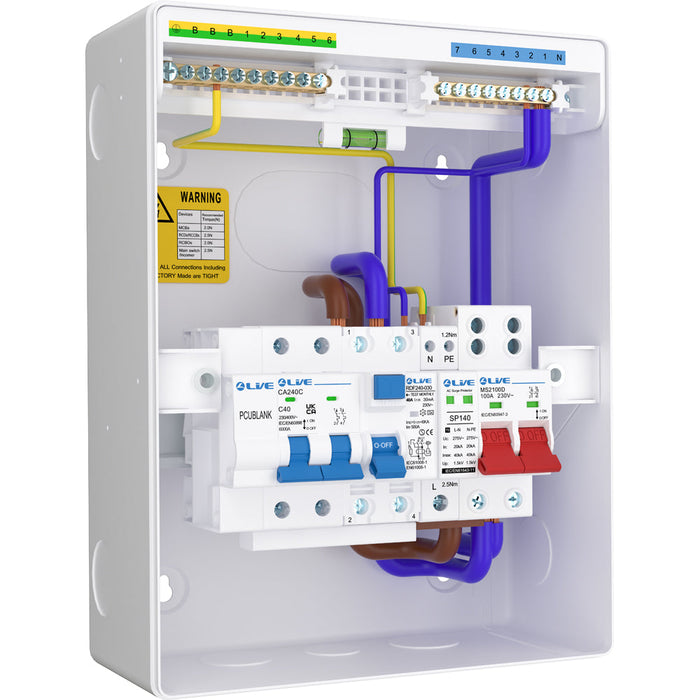

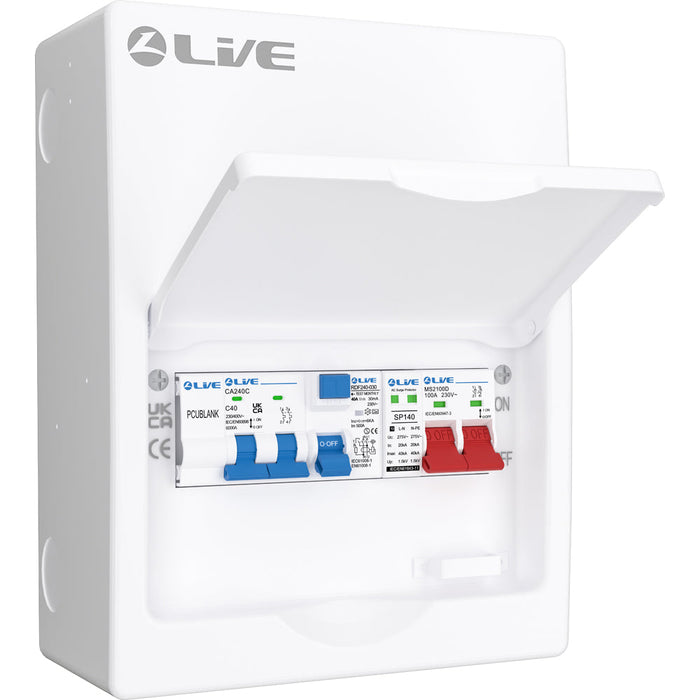

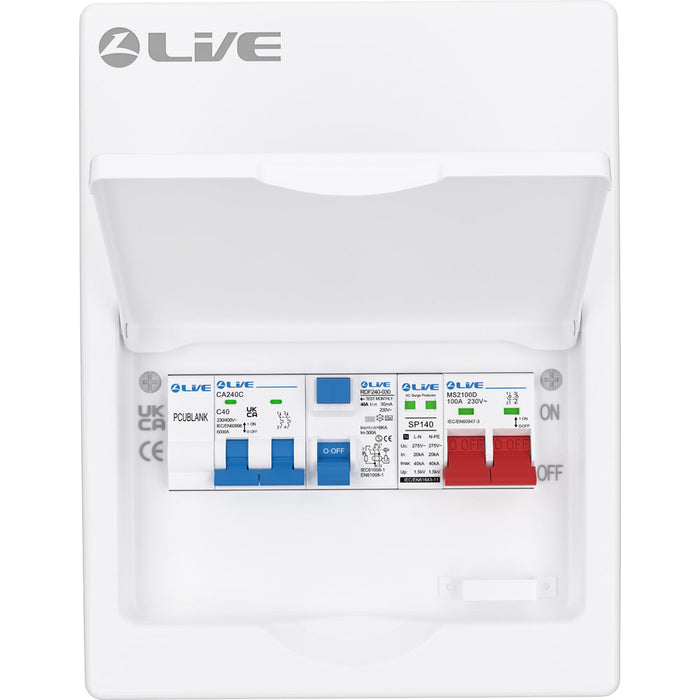

LIVE Electrical LHP840MSF 8 Module Metal Heat Pump Consumer Unit c/w 100A Main Switch, 40A Type F RCD, 2P 40A B Curve 6kA MCB & T2 20/40kA SPD
LIVE Electrical LHP840MSF 8 Module Metal Heat Pump Consumer Unit with 100A Main Switch, 40A Type F RCD, 40A B Curve MCB & Type 2 SPD
Product Overview
The LIVE Electrical LHP840MSF is an 8 module metal heat pump consumer unit designed to provide dedicated electrical protection for heat pump installations. Supplied pre-configured with essential protective devices, this compact unit combines isolation, residual current, overcurrent and surge protection within a robust metal enclosure.
The LHP840MSF incorporates a 100A main switch and a 40A 30mA Type F RCD for residual current protection. It is also equipped with a 2-pole 40A B Curve MCB with a 6kA short-circuit breaking capacity, providing overcurrent and short-circuit protection for the dedicated heat pump circuit.
An integrated Type 2 20/40kA surge protection device (SPD) helps protect the heat pump installation and connected equipment against transient overvoltages. With all key protective components housed within an 8 module metal consumer unit, the LHP840MSF provides a practical solution for professional heat pump installations.
Key Features
- Dedicated consumer unit for heat pump protection
- 8 module metal consumer unit
- Supplied with 100A main switch
- 40A Type F RCD
- 30mA residual current sensitivity
- 2-pole 40A B Curve MCB
- 6kA short-circuit breaking capacity
- Type 2 surge protection device (SPD)
- 20/40kA surge protection rating
- Combines isolation, residual current, overcurrent and surge protection
- Pre-configured for convenient installation
- Robust metal enclosure
Specification
- Manufacturer: LIVE Electrical
- Product Code: LHP840MSF
- Application: Heat Pump Protection
- Enclosure: Metal Consumer Unit
- Number of Modules: 8
- Main Switch: 100A
- RCD Type: Type F
- RCD Current Rating: 40A
- Residual Current: 30mA
- MCB: 2 Pole 40A B Curve
- MCB Breaking Capacity: 6kA
- Tripping Curve: B Curve
- Surge Protection: Type 2 SPD
- SPD Rating: 20/40kA
