LIVE Electrical CN110C 1P+N 10A C Curve 6kA MCB

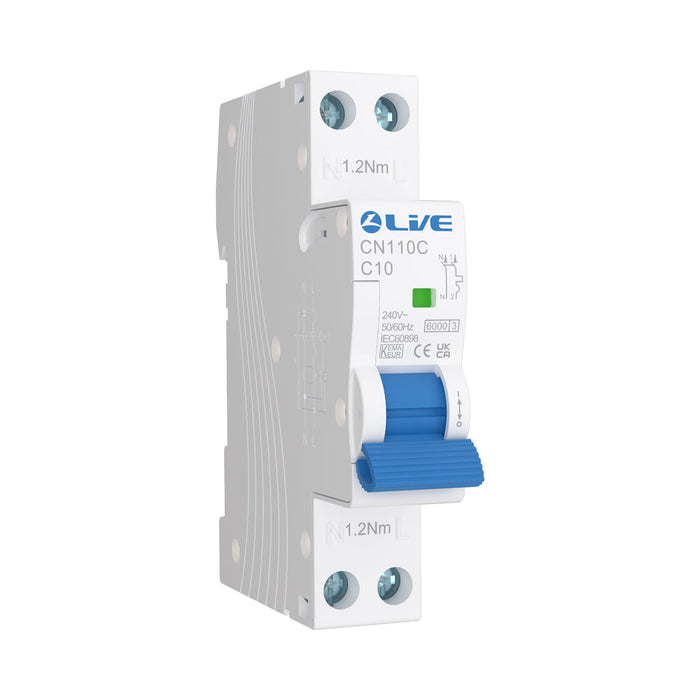

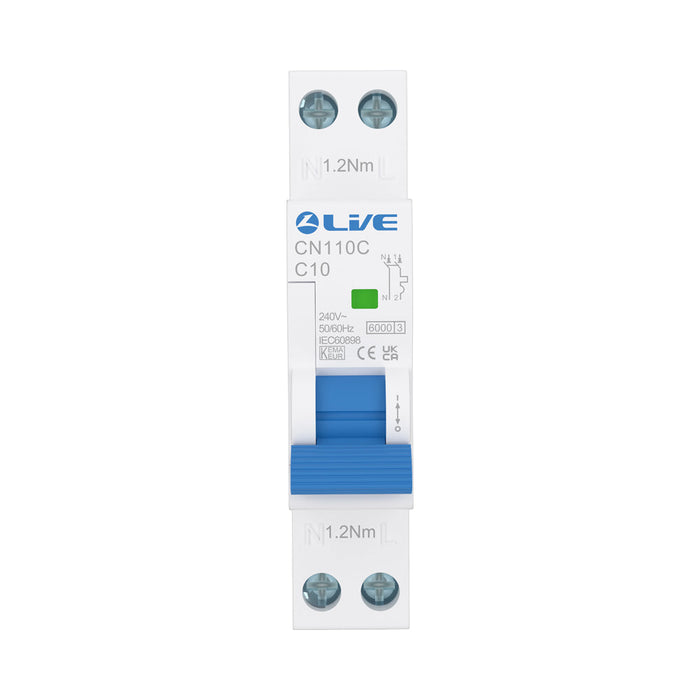

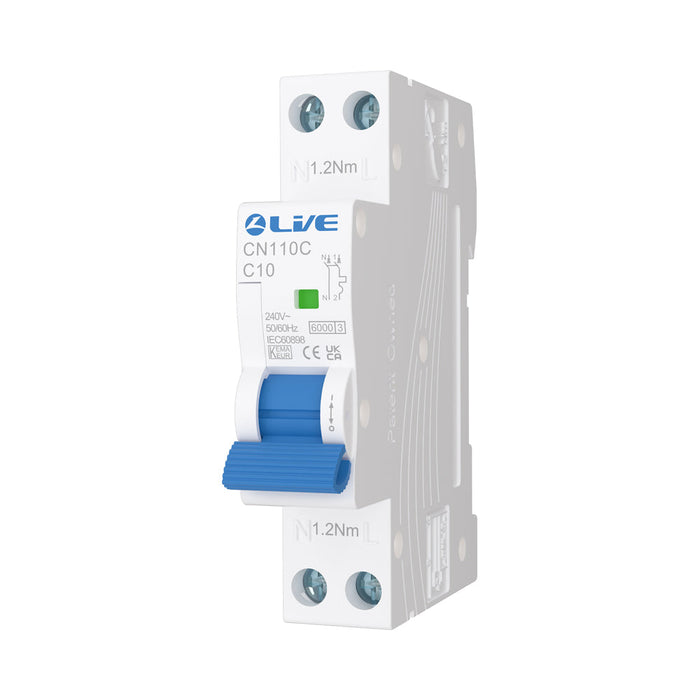

LIVE Electrical CN110C 10A Type C 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN110C 10A Type C Miniature Circuit Breaker (MCB) provides dependable overload and short-circuit protection for domestic and commercial electrical installations. Designed specifically for LIVE Electrical SRN Dual Busbar consumer units, this compact 1P+N circuit breaker combines a 10A rated current, Type C tripping characteristic and 6kA breaking capacity in a space-saving single-module design.
Featuring a Type C trip curve, the CN110C is particularly suitable for appropriately designed circuits with moderate inrush currents, such as certain LED lighting installations, small motors and inductive electrical equipment. Its compact construction allows efficient use of space within compatible distribution boards while helping maintain reliable electrical circuit protection.
Key Features
- 10A Rated Current: Provides overload protection for electrical circuits designed for a 10A protective device.
- Type C Tripping Curve: Suitable for circuits with moderate start-up currents, including selected lighting systems and inductive loads.
- 6kA Breaking Capacity: Capable of interrupting short-circuit fault currents up to its rated breaking capacity of 6000A.
- 1P+N Configuration: Provides single-pole overcurrent protection with neutral switching in one compact device.
- Single-Module Design: Space-efficient construction helps maximise available capacity within compatible consumer units.
- 240V AC Rated Voltage: Designed for suitable single-phase electrical installations.
- SRN Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar distribution boards.
- IP20 Protection: Provides protection against finger access to hazardous parts.
- 10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
- Wide Operating Temperature Range: Designed for operation in ambient temperatures from -25°C to +40°C.
Technical Specifications
| Manufacturer | LIVE Electrical |
|---|---|
| Product Code | CN110C |
| Product Type | Miniature Circuit Breaker (MCB) |
| Pole Configuration | 1P+N |
| Rated Current | 10A |
| Rated Voltage | 240V AC |
| Tripping Characteristic | Type C |
| Rated Frequency | 50/60Hz |
| Number of Modules | 1 |
| Short-Circuit Breaking Capacity | 6kA |
| Mechanical Life | 4,000 Cycles (as supplied) |
| Degree of Protection | IP20 |
| Maximum Terminal Capacity | 10mm² |
| Terminal Tightening Torque | 1.2Nm |
| Operating Temperature | -25°C to +40°C |
| Compatible Distribution Boards | LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN110C 10A MCB is suitable for appropriately designed domestic and commercial electrical installations requiring Type C overcurrent protection. Typical applications may include LED lighting circuits with higher start-up currents, small motor circuits, control equipment and other suitably rated inductive loads. It is designed for installation within compatible LIVE Electrical SRN Dual Busbar consumer units.
Selection of a Type C MCB should take account of the circuit design, prospective fault current and required disconnection times.
