LIVE Electrical CN106C 1P+N 6A C Curve 6kA MCB

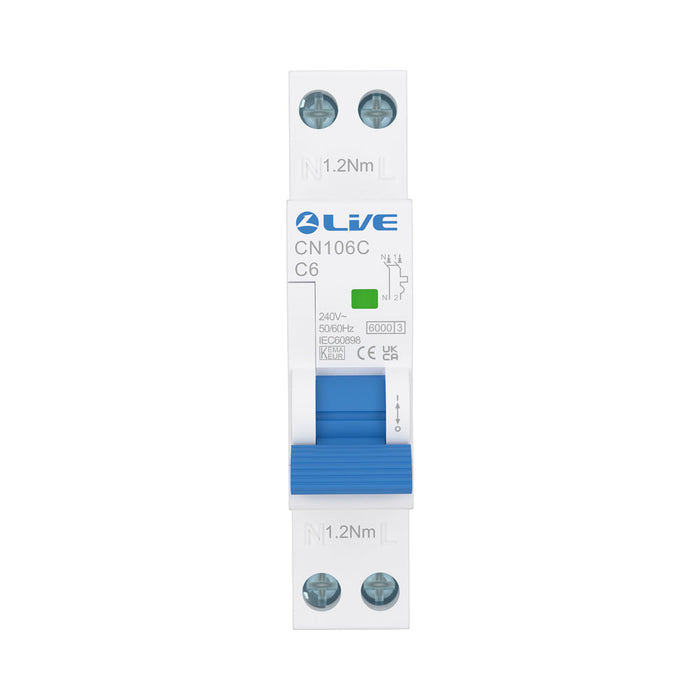

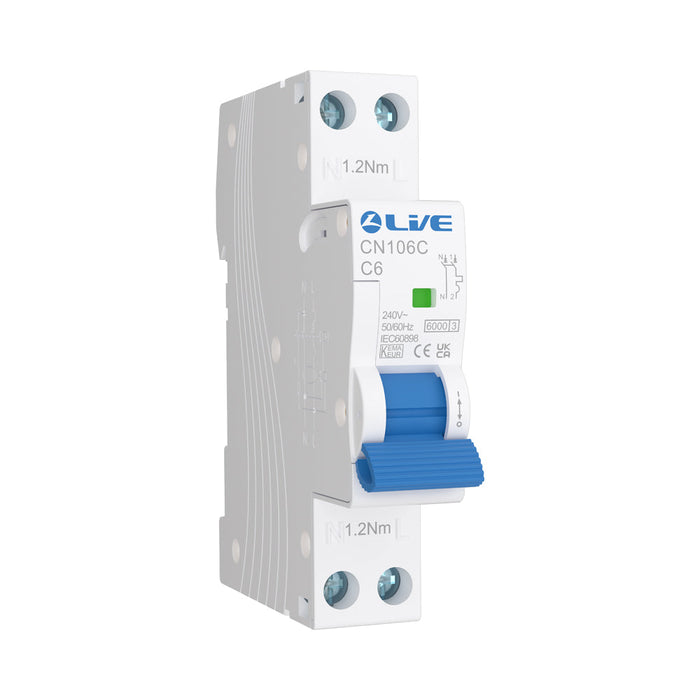

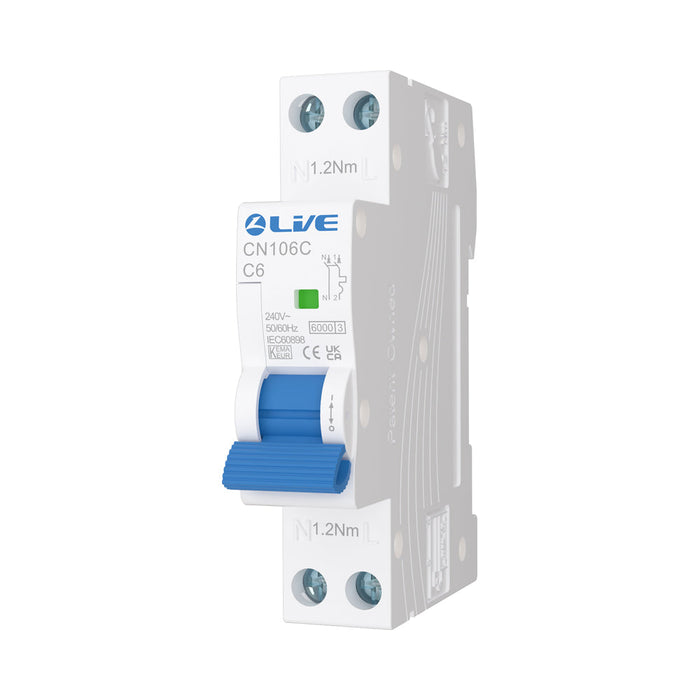

LIVE Electrical CN106C 6A Type C 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN106C 6A Type C Miniature Circuit Breaker (MCB) provides reliable overload and short-circuit protection for domestic and commercial electrical installations. Featuring a 1P+N configuration, 6kA breaking capacity and compact single-module design, this circuit breaker is specifically designed for use with LIVE Electrical SRN Dual Busbar consumer units.
With a 6A rated current and Type C tripping characteristic, the CN106C is suitable for appropriately designed electrical circuits with moderate inrush currents, including certain lighting systems and equipment with inductive loads. Its space-saving construction allows efficient installation within compatible distribution boards while providing dependable circuit protection.
Key Features
- 6A Rated Current: Provides overload protection for electrical circuits designed for a 6A protective device.
- Type C Tripping Curve: Suitable for circuits with moderate inrush currents, including certain inductive loads and lighting equipment.
- 6kA Breaking Capacity: Designed to interrupt short-circuit fault currents up to its rated breaking capacity of 6000A.
- 1P+N Configuration: Combines single-pole overcurrent protection with neutral switching in one compact device.
- Single-Module Design: Space-efficient construction helps maximise available capacity within compatible consumer units.
- 240V AC Rated Voltage: Designed for suitable single-phase electrical installations.
- SRN Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar distribution boards.
- IP20 Protection: Provides protection against finger access to hazardous parts.
- 10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
- Wide Operating Temperature Range: Designed for operation in ambient temperatures from -25°C to +40°C.
Technical Specifications
| Manufacturer | LIVE Electrical |
|---|---|
| Product Code | CN106C |
| Product Type | Miniature Circuit Breaker (MCB) |
| Pole Configuration | 1P+N |
| Rated Current | 6A |
| Rated Voltage | 240V AC |
| Tripping Characteristic | Type C |
| Rated Frequency | 50/60Hz |
| Number of Modules | 1 |
| Short-Circuit Breaking Capacity | 6kA |
| Mechanical Life | 4,000 Cycles (as supplied) |
| Degree of Protection | IP20 |
| Maximum Terminal Capacity | 10mm² |
| Terminal Tightening Torque | 1.2Nm |
| Operating Temperature | -25°C to +40°C |
| Compatible Distribution Boards | LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN106C 6A MCB is suitable for appropriately designed domestic and commercial electrical installations requiring Type C overcurrent protection. Typical applications may include lighting circuits with higher start-up currents, certain LED lighting systems and other suitably rated inductive loads. It is designed for installation within compatible LIVE Electrical SRN Dual Busbar consumer units.
