LIVE Electrical CN106B 1P+N 6A B Curve 6kA MCB

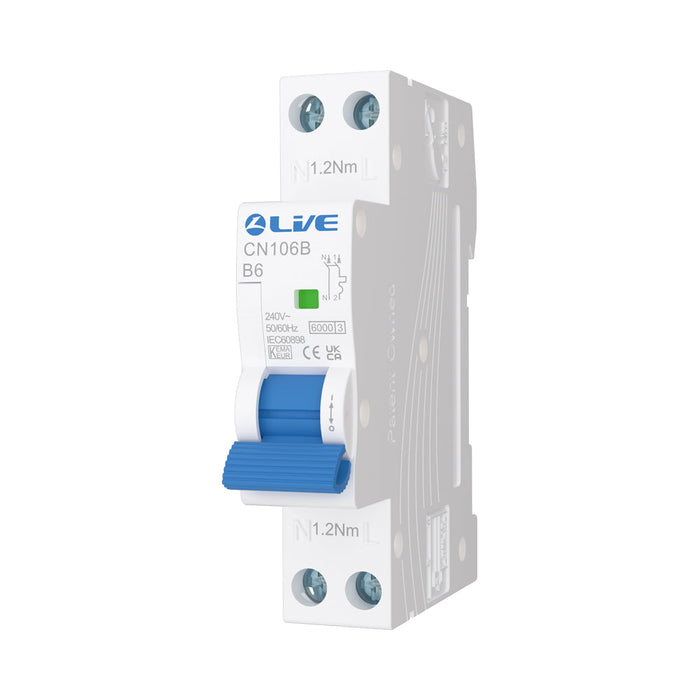

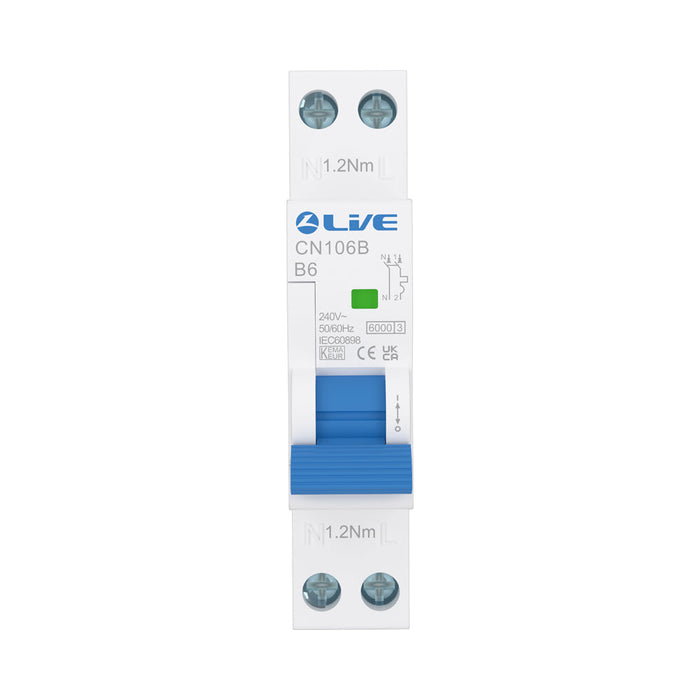

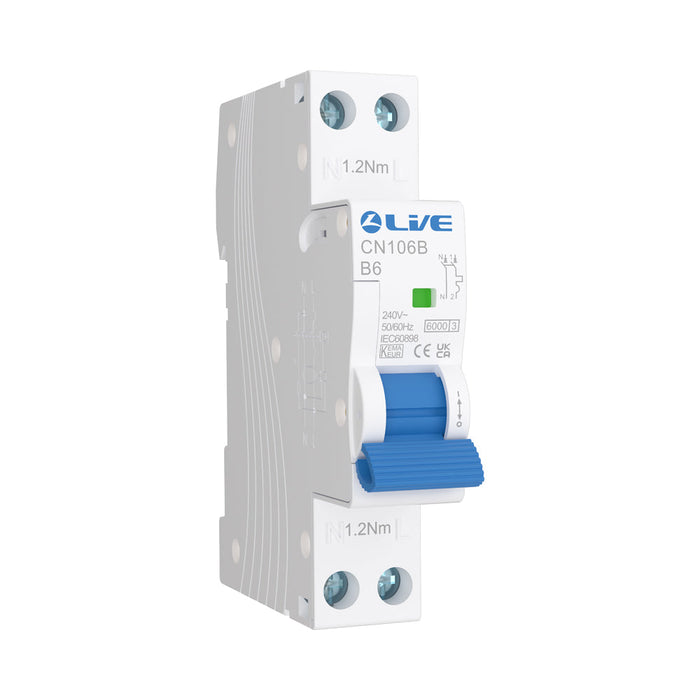

LIVE Electrical CN106B 6A Type B 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN106B 6A Type B Miniature Circuit Breaker (MCB) is designed to provide reliable overcurrent and short-circuit protection in electrical distribution systems. Featuring a compact 1P+N configuration and a 6kA breaking capacity, this single-module MCB is specifically designed for use with LIVE Electrical SRN Dual Busbar consumer units.
With a 6A rated current and Type B tripping characteristic, the CN106B is suitable for electrical circuits with relatively low inrush currents, including appropriate domestic and commercial lighting applications. Its space-saving design enables straightforward integration into compatible distribution boards.
Key Features
- 6A Rated Current: Provides overcurrent protection for suitably rated electrical circuits.
- Type B Tripping Curve: Designed for circuits with low inrush currents, including typical lighting applications.
- 6kA Breaking Capacity: Offers short-circuit protection with a rated breaking capacity of 6000A.
- 1P+N Configuration: Combines single-pole protection with neutral switching in a compact design.
- Single-Module Width: Space-efficient construction for compatible consumer units.
- 240V AC Operation: Suitable for electrical installations operating at the specified rated voltage.
- Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar boards.
- IP20 Protection: Provides protection against finger contact with hazardous parts.
- 10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
Technical Specifications
| Manufacturer | LIVE Electrical |
|---|---|
| Product Code | CN106B |
| Product Type | Miniature Circuit Breaker (MCB) |
| Pole Configuration | 1P+N |
| Rated Current | 6A |
| Rated Voltage | 240V AC |
| Tripping Characteristic | Type B |
| Rated Frequency | 50/60Hz |
| Number of Modules | 1 |
| Short-Circuit Breaking Capacity | 6kA |
| Mechanical Life | 4,000 Cycles (as supplied) |
| Degree of Protection | IP20 |
| Maximum Terminal Capacity | 10mm² |
| Terminal Tightening Torque | 1.2Nm |
| Operating Temperature | -25°C to +40°C |
| Compatible Distribution Boards | LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN106B 6A MCB is suitable for appropriately designed domestic and commercial electrical installations requiring Type B circuit protection. It is particularly useful for lighting circuits and other low-inrush applications within compatible LIVE Electrical SRN Dual Busbar consumer units.
