Integral ILSENPIR010 PIR Sensor Batten Mount On/Off Control 360Deg Single Detector 10m Range IP65 White
Integral ILSENPIR010 PIR Sensor Batten Mount On/Off Control 360° 10m Range IP65 White
Product Description

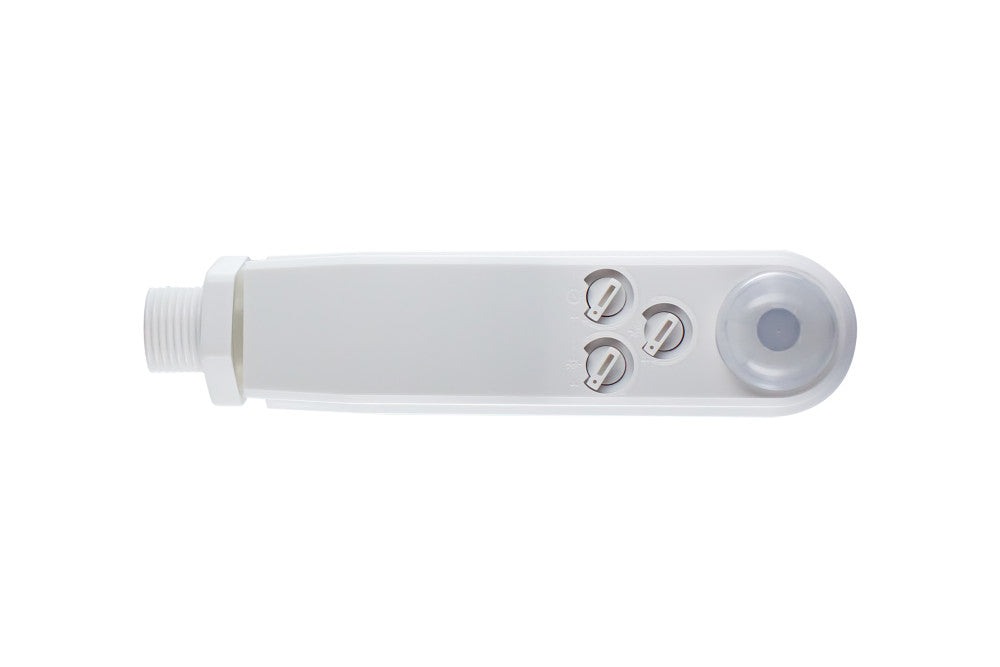

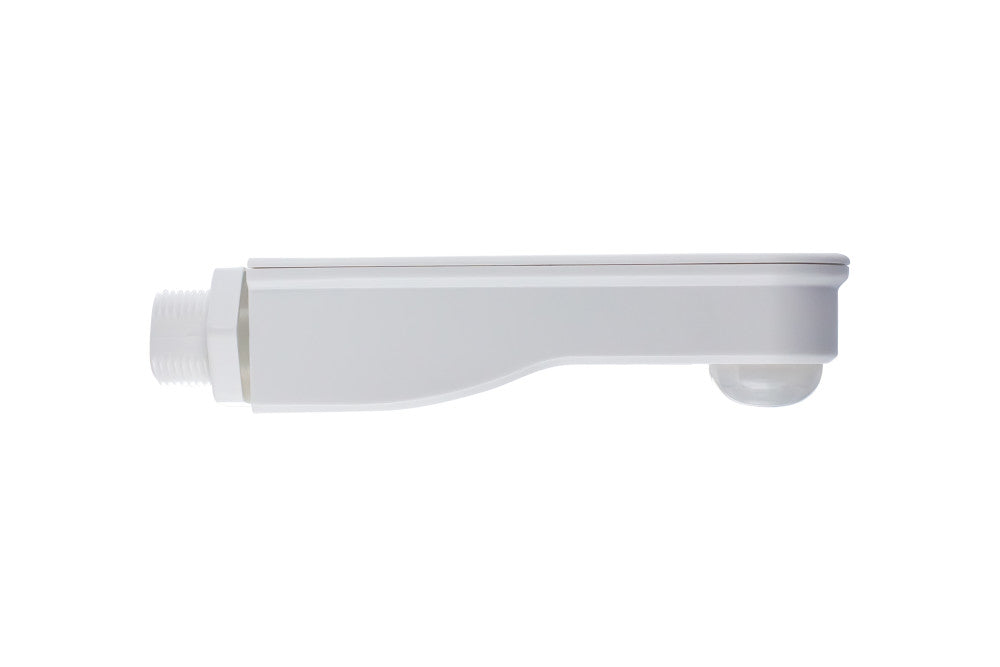

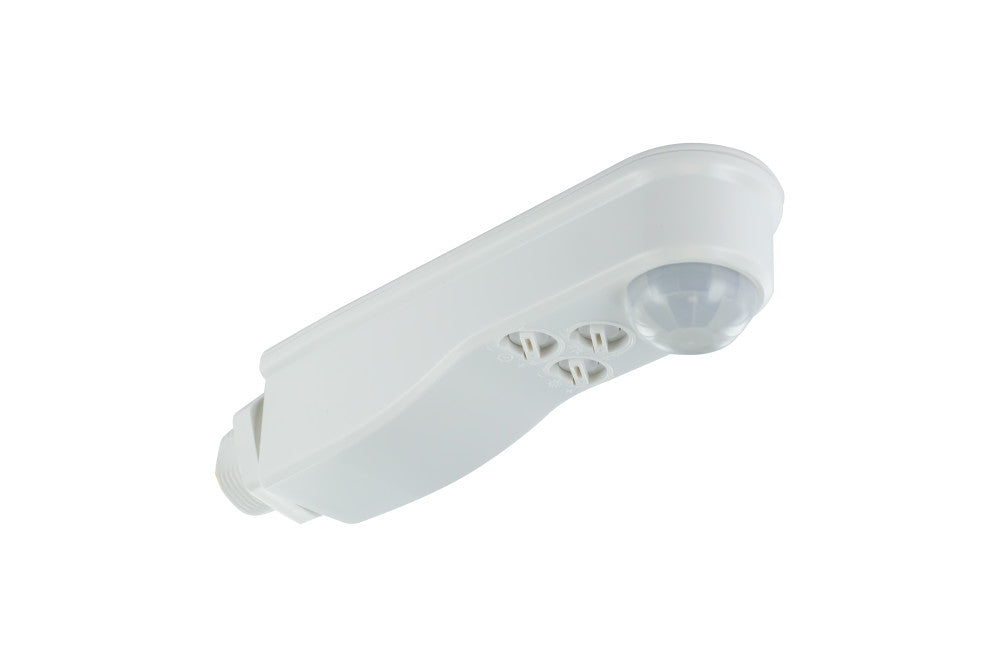

The Integral ILSENPIR010 PIR Sensor is a batten-mounted motion detector designed to provide automatic on/off lighting control for a wide range of indoor and outdoor applications. Featuring 360° PIR detection, an IP65-rated housing and adjustable operating settings, it offers flexible and reliable lighting control.
The sensor provides adjustable hold times, detection sensitivity and daylight thresholds, allowing operation to be tailored to suit the installation. A built-in photocell enables dusk-to-dawn operation, while the 8-hour override mode provides additional control when continuous lighting is required.

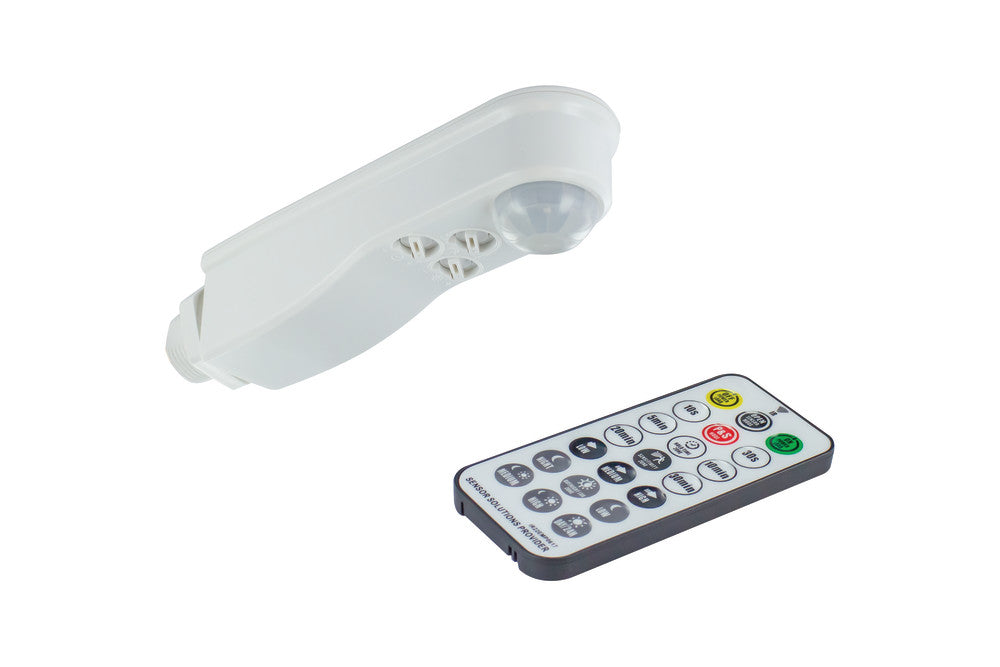

Supplied with a handheld remote control, the ILSENPIR010 allows convenient adjustment of the sensor settings. It operates from a 110–240V AC supply and supports loads up to 1200W incandescent or 300W LED.
Key Features
- Batten-mounted PIR motion sensor with automatic on/off control
- 360° detection coverage
- Detection range up to 10m
- IP65 rated for protection against dust and water
- Adjustable hold times: 10 seconds, 30 seconds, 5 minutes, 10 minutes, 20 minutes or 30 minutes
- Adjustable sensitivity settings: Low approximately 2m, Medium approximately 6m and High approximately 12m
- Selectable daylight thresholds: <10 lux, <25 lux, <250 lux, <500 lux or 24-hour operation
- Built-in photocell function for dusk-to-dawn operation
- 8-hour override mode
- Maximum rated load: 1200W incandescent or 300W LED
- 110–240V AC input
- Supplied with handheld remote control
- White finish
Specification
- Brand: Integral
- Product Code: ILSENPIR010
- Sensor Type: PIR
- Mounting: Batten mount
- Detection Angle: 360°
- Detection Range: Up to 10m
- Input Voltage: 110–240V AC
- Maximum Incandescent Load: 1200W
- Maximum LED Load: 300W
- IP Rating: IP65
- Colour: White
- Control: On/Off
Data Sheet:
