Integral ILMDC003 Evolight 410Lm 3.8W 2700K Dimmable 36 Beam with Junction Box

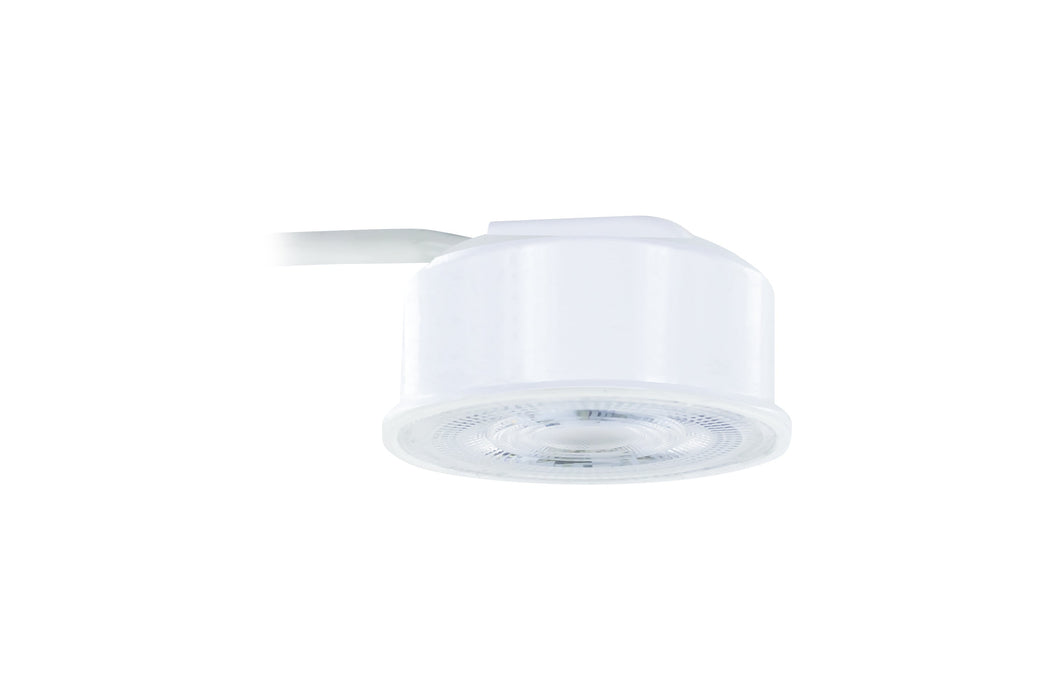

Integral ILMDC003 Evolight LED Module 3.8W 410lm 2700K Warm White Dimmable 36° Beam with Junction Box
Product Description
The Integral ILMDC003 Evolight LED Module with Junction Box is an innovative, energy-efficient lighting solution designed to simplify modern recessed downlight installations. Consuming just 3.8W while producing 410 nominal lumens, this compact LED module delivers warm white illumination and provides a practical alternative to traditional MR16 and GU10 lighting systems.
Featuring a 2700K warm white colour temperature, the Evolight creates a soft, welcoming atmosphere, making it ideal for living rooms, bedrooms, dining areas, hotels and hospitality environments. Its 36° beam angle delivers focused directional illumination, suitable for ceiling spotlights, accent lighting and general recessed lighting applications.
Designed as a pre-wired 240V LED lighting solution, the Integral Evolight can replace traditional 12V MR16 lamps, lamp holders and transformers, as well as 240V GU10 lamps and holders. This integrated design reduces the need for separate lighting components, making it a convenient choice for upgrades and new installations.
The ILMDC003 features an exceptionally slim 29mm profile, making it particularly suitable for installations where ceiling void space is restricted. Its compact construction helps avoid obstructions above the ceiling, while the supplied 28cm connection cable provides flexibility during installation.
Supplied with a Fast-Fit screwless junction box, the Evolight incorporates a piano-key style terminal block designed for quick, tool-free cable connections. This convenient connection system helps streamline installation and reduce wiring time.
The Integral ILMDC003 also features dimmable LED technology, allowing brightness adjustment when used with a compatible dimmer. It is suitable for compatible non-dimming installations and can be combined with the Integral LED Evofire+ range for an efficient and versatile downlight solution.
Key Features
- Energy-Efficient LED Technology: Consumes just 3.8W while producing 410 nominal lumens of light.
- Warm White Illumination: 2700K colour temperature creates a comfortable and inviting lighting atmosphere.
- 345 Useful Lumens: Provides effective directional illumination with 410 nominal lumens.
- Dimmable Functionality: Allows adjustable brightness when connected to a compatible LED dimmer.
- 36° Beam Angle: Delivers focused lighting suitable for recessed downlights, ceiling spotlights and accent lighting.
- Fast-Fit Junction Box Included: Supplied with a screwless connection box for convenient installation.
- Piano-Key Terminal Block: Designed for quick, tool-free cable connections.
- Pre-Wired 240V Design: Eliminates the need for a separate 12V transformer in suitable replacement installations.
- Versatile Lamp Replacement: Designed to replace compatible 12V MR16 lamps, holders and transformers, or 240V GU10 lamps and holders.
- Ultra-Slim 29mm Profile: Suitable for installations with limited ceiling void space.
- 28cm Connection Cable: Supplied pre-wired to simplify installation and provide positioning flexibility.
- Evofire+ Compatibility: Suitable for use with compatible Integral LED Evofire+ downlight fittings.
- Flexible Lighting Applications: Suitable for compatible canless downlight systems, including non-dimming installations.
Technical Specifications
- Brand: Integral LED
- Product Code: ILMDC003
- Product Range: Evolight
- Product Type: Pre-Wired LED Downlight Module with Junction Box
- Wattage: 3.8W
- Nominal Luminous Flux: 410lm
- Useful Luminous Flux: 345lm
- Colour Temperature: 2700K
- Light Colour: Warm White
- Beam Angle: 36°
- Dimmable: Yes
- Operating Voltage: 240V
- Module Height: 29mm
- Supplied Cable Length: 28cm
- Junction Box: Fast-Fit Screwless Junction Box Included
- Terminal Type: Piano-Key Style Screwless Terminal Block
- Compatible Range: Integral LED Evofire+
Applications
The Integral ILMDC003 Evolight LED module with junction box is suitable for a variety of indoor lighting applications, including:
- Living room and bedroom recessed downlights
- Kitchen and dining room ceiling spotlights
- Hotels, restaurants and hospitality lighting
- Hallways, corridors and entrance areas
- Residential and commercial lighting upgrades
- Ceiling installations with restricted void space
- Replacement of compatible MR16 and GU10 lighting systems
- Integral LED Evofire+ downlight installations
