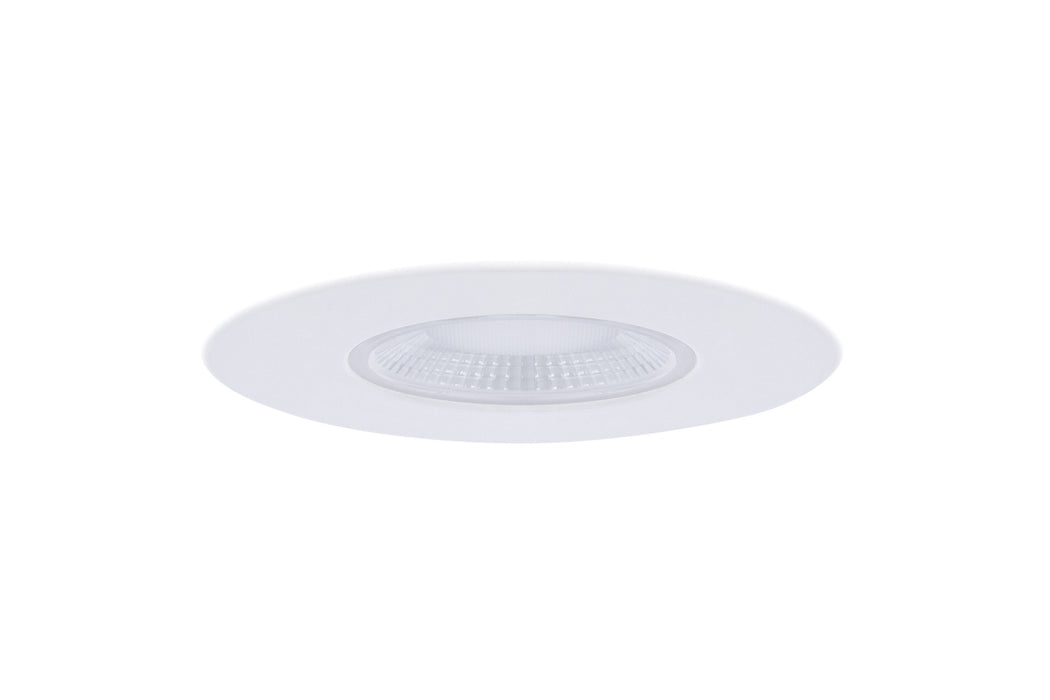

Integral ILDLFR70S005 XFire Core Maxi CCT Switchable Fire-Rated Downlight 6W 780Lm 70-90mm Cutout IP65 Dimmable c/w White Bezel 3000K/4000K/6000K
Integral ILDLFR70S005 XFire Core Maxi 6W CCT Switchable Fire-Rated LED Downlight 780lm IP65 Dimmable - White

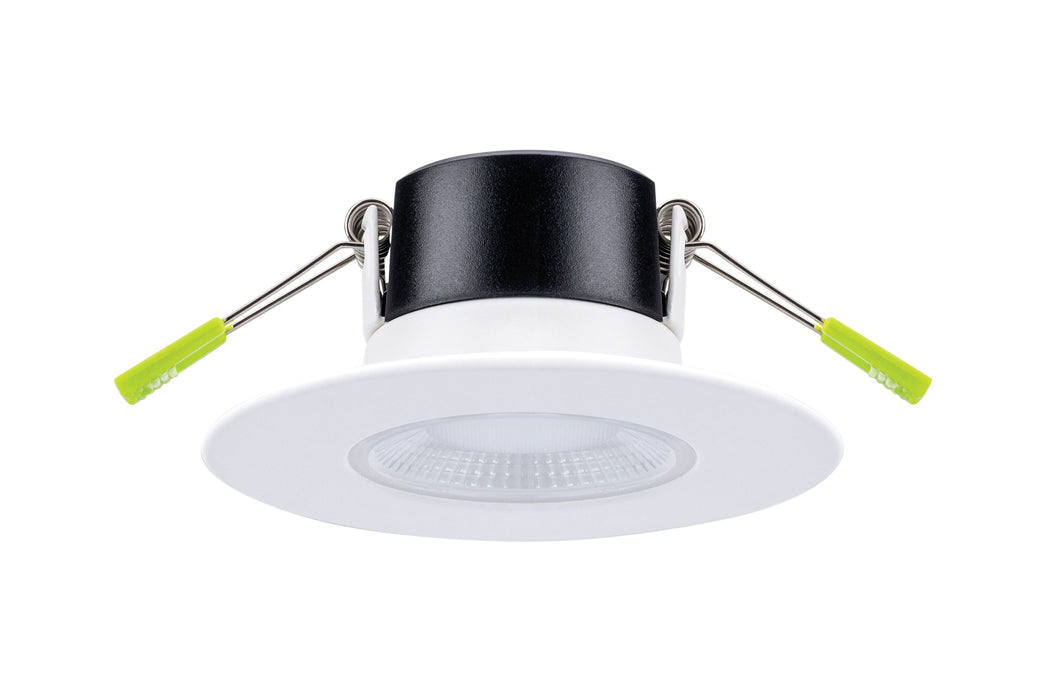

The Integral XFire Core Maxi ILDLFR70S005 is a versatile 6W fire-rated LED downlight designed for energy-efficient lighting and convenient retrofit installations. Featuring a wider 96mm white bezel and an adjustable 70-90mm ceiling cut-out, this recessed downlight is ideal for replacing existing fittings while providing a neat, professional finish. Delivering 780 lumens at an impressive efficacy of 130lm/W, it combines excellent illumination with low energy consumption.
Equipped with CCT switchable technology, the XFire Core Maxi offers three selectable colour temperatures: 3000K Warm White, 4000K Cool White and 6000K Daylight. This flexibility allows you to choose the ideal lighting tone for kitchens, bathrooms, bedrooms, hallways, living areas and commercial interiors.
The downlight features dimmable functionality for adjustable brightness and a 60° beam angle for effective light distribution. Its IP65 ingress protection rating provides resistance to dust and water jets, making it suitable for moisture-prone environments when installed in accordance with relevant electrical regulations.
Designed with installers in mind, the Integral XFire Core Maxi incorporates a loop-in/loop-out push-fit connector with a piano-key terminal block for straightforward wiring. The larger white bezel helps cover existing ceiling openings, making this fire-rated LED downlight a practical solution for both refurbishment projects and new lighting installations.
Key Features:
- 6W fire-rated LED downlight from the Integral XFire Core Maxi range.
- Delivers 780 lumens with high luminous efficacy of 130lm/W.
- CCT switchable between 3000K Warm White, 4000K Cool White and 6000K Daylight.
- Dimmable functionality for flexible brightness control.
- IP65 rated for protection against dust and water jets.
- 60° beam angle for effective general and task illumination.
- Wide 96mm white bezel provides a neat finish and is ideal for retrofit installations.
- Compatible with ceiling cut-outs ranging from 70mm to 90mm.
- Loop-in/loop-out push connector with piano-key terminal block for easy installation.
- Compact, energy-efficient design suitable for residential and commercial interiors.
- Ideal for replacing existing downlights with larger ceiling openings.
Technical Specifications:
- Manufacturer: Integral LED
- Product Code: ILDLFR70S005
- Product Range: XFire Core Maxi
- Product Type: Fire-Rated LED Downlight
- Power Consumption: 6W
- Luminous Flux: 780lm
- Luminous Efficacy: 130lm/W
- Colour Temperature: 3000K / 4000K / 6000K
- Beam Angle: 60°
- IP Rating: IP65
- Fire-Rated: Yes
- Dimmable: Yes
- Cut-Out Diameter: 70-90mm
- Bezel Diameter: 96mm
- Bezel Finish: White
- Connection Type: Loop-in/loop-out push-fit terminal block
- Installation Type: Recessed Ceiling Mounting
Data Sheet:
