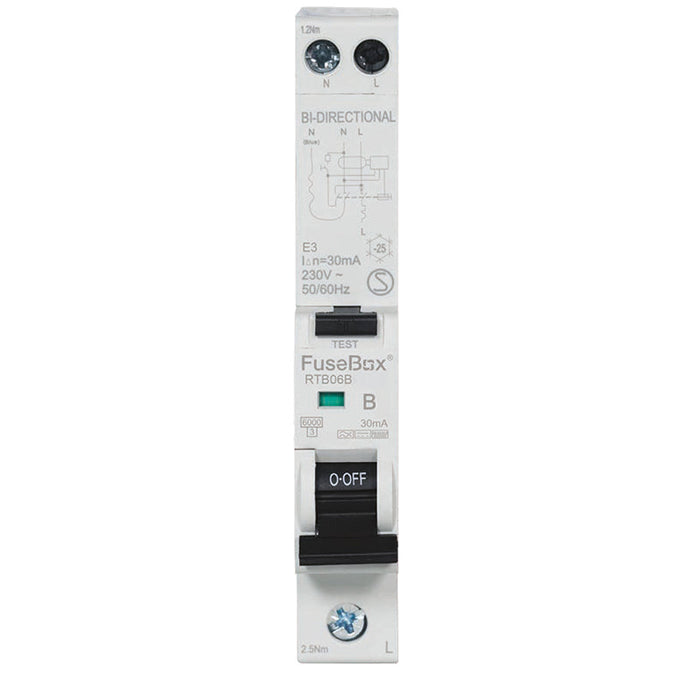

FuseBox RTB06B25BD 25A 1P+N (Switched) B Curve 6kA 30mA Type B Bi-Directional RCBO
FuseBox RTB06B25BD 25A 1P+N Switched B Curve 6kA 30mA Type B Bi-Directional RCBO
Product Description
The FuseBox RTB06B25BD is a 25A B Curve Type B bi-directional RCBO designed to provide reliable circuit protection for modern electrical installations incorporating electronic loads and equipment where current may flow in either direction. Combining residual current, overcurrent and short-circuit protection within a single device, it offers comprehensive protection for demanding electrical applications.
Featuring 30mA Type B residual current protection, the RTB06B25BD is designed to detect AC, pulsating DC and smooth DC residual fault currents. Its bi-directional functionality provides protection regardless of the direction of current flow, making it particularly suitable for modern technologies including heat pumps, solar PV systems and EV charging equipment.
With a 25A current rating, B Curve tripping characteristic and 6kA short-circuit breaking capacity, this 1P+N switched RCBO provides a versatile protection solution for suitable domestic, commercial and industrial electrical installations.
Key Features & Benefits
- 25A Type B bi-directional RCBO
- B Curve tripping characteristic
- 1P+N switched configuration
- 30mA residual current protection
- 6kA short-circuit breaking capacity
- Bi-directional operation provides protection in either direction of current flow
- Detects AC, pulsating DC and smooth DC residual fault currents
- Combines earth leakage, overcurrent and short-circuit protection in one device
- Designed for circuits supplying modern electronic equipment
- Ideal for appropriate heat pump, solar PV and EV charging applications
- Suitable for domestic, commercial and industrial installations
Product Specifications
- Brand: FuseBox
- Product Code: RTB06B25BD
- Product Type: Bi-Directional RCBO
- Rated Current: 25A
- Curve: B Curve
- Configuration: 1P+N Switched
- Breaking Capacity: 6kA
- Residual Current Rating: 30mA
- RCD Type: Type B
- Current Flow: Bi-Directional
