Aico Ei168RC RadioLINK Mains Powered Base Rechargeable Lithium Backup

Aico Ei168RC RadioLINK Mains Powered Base Rechargeable Lithium Backup

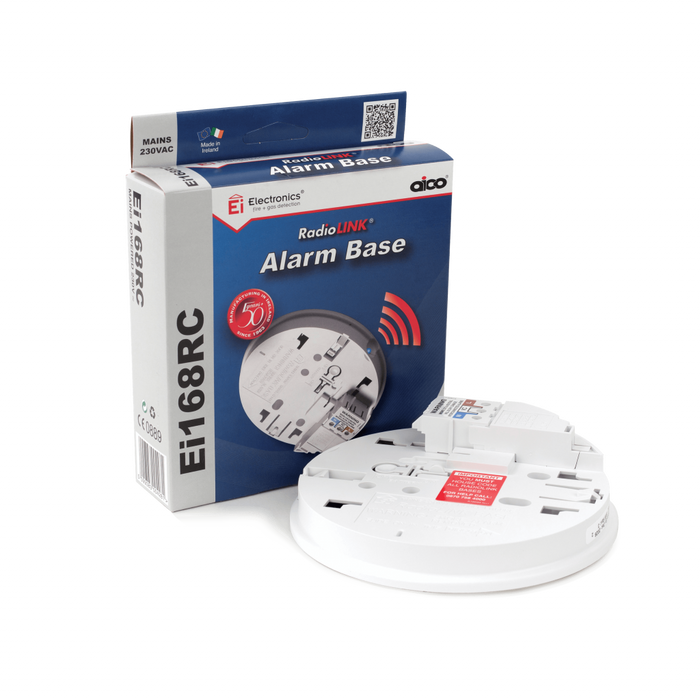

The Ei168RC RadioLINK Base is an easi-fit mounting plate with built-in RadioLINK technology. It provides wireless interconnect between alarms, i.e. when one alarm is triggered, all alarms in the system sound.

Features

• Mains powered base with rechargeable lithium cell back-up
• Add this to the 140RC series alarms for RadioLINK wireless interconnection
• Compatible with other Aico wireless interconnection products
• Eliminates tricky wiring runs
• Saves time, mess and money
• Makes it easier to add in new alarms and accessories

Specifications

• Supply Voltage: 230V AC, 50Hz
• Battery Back-up: Rechargeable lithium
• RF Frequency: 868, 499Mhz RadioLINK protocol.
• RF Power: +5dBm.
• RF Range: 30 metres
• System Size: 12 RadioLINK devices max.
• Operating Temperature: 0 to 40°C. Storage – 0 to 35°C (in a dry area).
• Humidity Range: 15% to 95% relative humidity.
• Indicators: Blue LED for RF and fault signals.
• Plastic Material: UL94V0 flame retardant
• Dimensions – Product: 150mm dia. x 37mm (20mm installed).
• Guarantee: 5 years
• Approvals: CE certified / EN300220-3 (RF) / 301498-3 (EMC).
