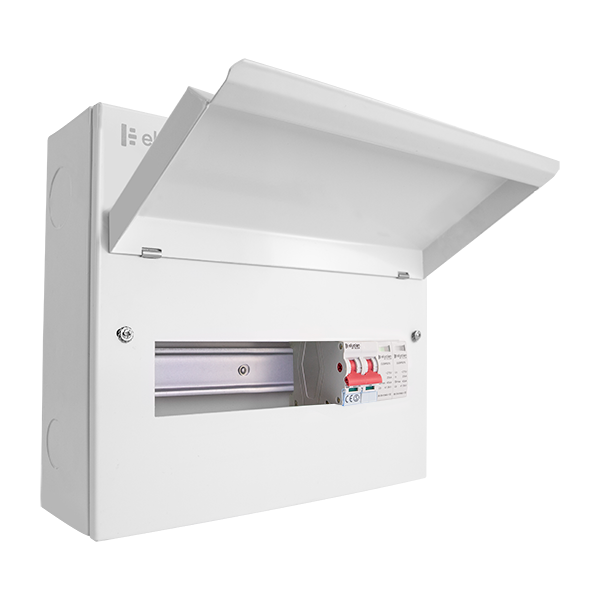

Click Elucian CUEB12MSSP8 12 Way Metal Consumer Unit with 100A Main Switch & Type 2 SPD
Click Elucian CUEB12MSSP8 12 Way Metal Consumer Unit with 100A Main Switch & Type 2 SPD
Functional, stylish, and innovative, our Elucian range of consumer units provides an exceptional option for any residential or light commercial environment. Packed with features making installation quick and simple for electricians, with a clear labelling kit for easy identification for the customer. A great range of configurations and sizes makes Elucian perfect for any installation requirement.
Features & Benefits
Metal Consumer Units
All Elucian consumer units are constructed using non combustible and robust metal housings. They ensure compliance against the third amendment which was added to the BS 7671 wiring regulations in 2015 requiring consumer units in domestic premises to have a non-combustible enclosure.
Mains Switch Tail Clamp
Each consumer and mini unit come supplied and pre-fitted with a Mains Switch Tail Clamp for added stress relief to ensure the Mains Tail terminations do not come loose and to help fix the Mains Switch Isolator more securely to prevent any rocking or movement. The Mains Switch Tail Clamp will accept a maximum of 25mm2 double insulated tails.
Variable Knockout Sizes
The units all come supplied with a wide range of 40mm, 32mm, 25mm and 20mm knockouts making each board universally adaptable for all installation and cable types.
Rear Knockouts
The units also come supplied with rear knockouts to provide ample cabling capacity for any installation type. Each knockout will be supplied with a 0.5M grommet strip to allow a smooth entry into the board, protecting cable from any potential sharp edges.
Shrouded Live Bus Bar
Our live bus bar comes supplied with the shroud pre-fitted for extra safety and convenience. Our Neutral and Earth Bus Bars are supplied with backed off screws allowing a faster installation.
Accessories Pack
Contains a Sticker Set for clear circuit identification and caution warnings, Grommet Knockout Strips, 2 x Blank Modules, a detailed instruction sheet for all recommended installation details and a Live Bus Bar, Cover and Caps for added insulation and installation completion.
This item is 12 Way Metal Consumer Unit with 100A Main Switch & Type 2 SPD
Features
- Total Ways: 12
- Free Ways: 8
- Dimensions With Door (mm): 294 (W) x 260 (H) x 115 (D)
- Enclosure Dimensions (mm): 294 (W) x 260 (H) x 92 (D)
- 10 Year Warranty
Data Sheet:
Click Here for Data Sheet
