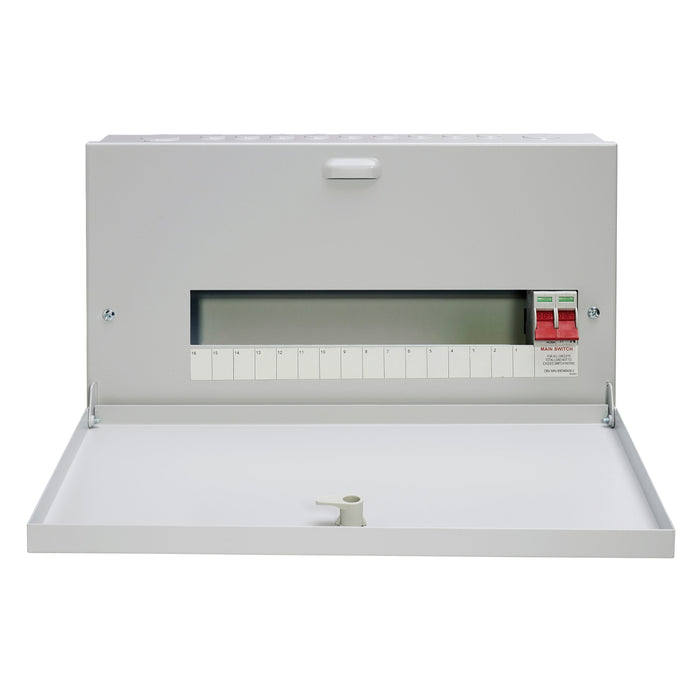

Crabtree 18SN16L Loadstar 16 Way 100A 1P+N Type A Surface Distribution Board c/w Switch Disconnector
Crabtree 18SN16L Loadstar 16 Way 100A 1P+N Surface Distribution Board with Switch Disconnector
Product Overview
The Crabtree 18SN16L Loadstar 16 Way 100A Surface Distribution Board is a high-capacity, surface-mounted solution engineered for safe, compliant, and efficient electrical distribution in domestic, commercial, and light industrial environments. Supplied complete with a 100A 1P+N switch disconnector, it provides secure isolation and reliable performance where a large number of outgoing circuits are required.
Designed and manufactured in the UK to BS EN 61439-3, this Loadstar distribution board offers long-term durability, regulatory compliance, and full compatibility with the Crabtree Loadstar range of final circuit protection devices.
Key Features & Benefits
- 16-way surface mounted distribution board with main switch only configuration (Type ‘A’).
- Supplied with a 100A main switch disconnector featuring twin line and neutral supply terminals.
- Includes a 100A fixed busbar assembly for consistent and secure internal connections.
- Compatible with Crabtree Loadstar 10kA SP MCBs from 6A to 63A.
- Accepts Crabtree Loadstar RCBOs ranging from 6A to 50A.
- Supports installation of the Crabtree miniature Type 2 SPD (CRT2SPD3W/1) for enhanced surge protection.
- Finished in durable RAL 7035 grey powder-coated steel for professional appearance and corrosion resistance.
- Designed and manufactured in the UK to BS EN 61439-3.
Ideal Applications
Ideal for surface-mounted installations requiring extensive circuit capacity, including commercial buildings, plant rooms, industrial units, and larger domestic electrical systems.
Technical Summary
- Ways: 16
- Rated Current: 100A
- Poles: 1P+N
- Mounting: Surface
- Standard: BS EN 61439-3
- Finish: RAL 7035 Grey Powder Coat
