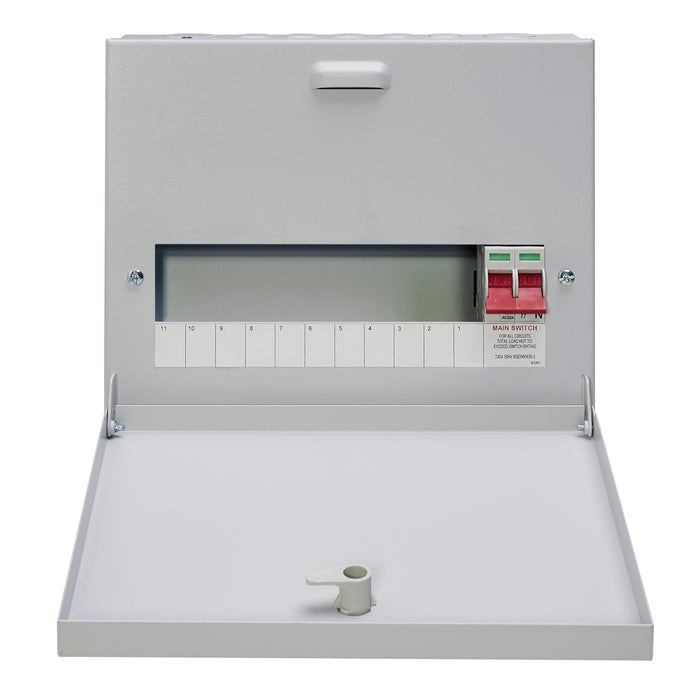

Crabtree 18SN11L Loadstar 11 Way 100A 1P+N Type A Surface Distribution Board c/w Switch Disconnector
Crabtree 18SN11L Loadstar 11 Way 100A 1P+N Surface Distribution Board with Switch Disconnector
Product Overview
The Crabtree 18SN11L Loadstar 11 Way 100A Surface Distribution Board is a high-capacity, surface-mounted solution designed for safe and reliable electrical distribution across domestic, commercial, and light industrial installations. Supplied complete with a 100A 1P+N switch disconnector, it provides secure isolation and dependable performance in demanding environments.
Manufactured in the UK to BS EN 61439-3, this Loadstar distribution board combines robust construction with compatibility across the Crabtree Loadstar protection range, making it a flexible and future-proof choice for modern electrical systems.
Key Features & Benefits
- 11-way surface mounted distribution board with main switch only configuration (Type ‘A’).
- Supplied with a 100A main switch disconnector featuring twin line and neutral supply terminals.
- Includes a 100A fixed busbar assembly for secure internal connections.
- Compatible with Crabtree Loadstar 10kA SP MCBs from 6A to 63A.
- Accepts Crabtree Loadstar RCBOs ranging from 6A to 50A.
- Supports installation of the Crabtree miniature Type 2 SPD (CRT2SPD3W/1) for surge protection.
- Finished in durable RAL 7035 grey powder-coated steel for long-term protection.
- Designed and manufactured in the UK to BS EN 61439-3.
Ideal Applications
Ideal for surface-mounted installations requiring multiple outgoing circuits, including commercial premises, utility rooms, plant areas, and larger domestic electrical systems.
Technical Summary
- Ways: 11
- Rated Current: 100A
- Poles: 1P+N
- Mounting: Surface
- Standard: BS EN 61439-3
- Finish: RAL 7035 Grey Powder Coat
