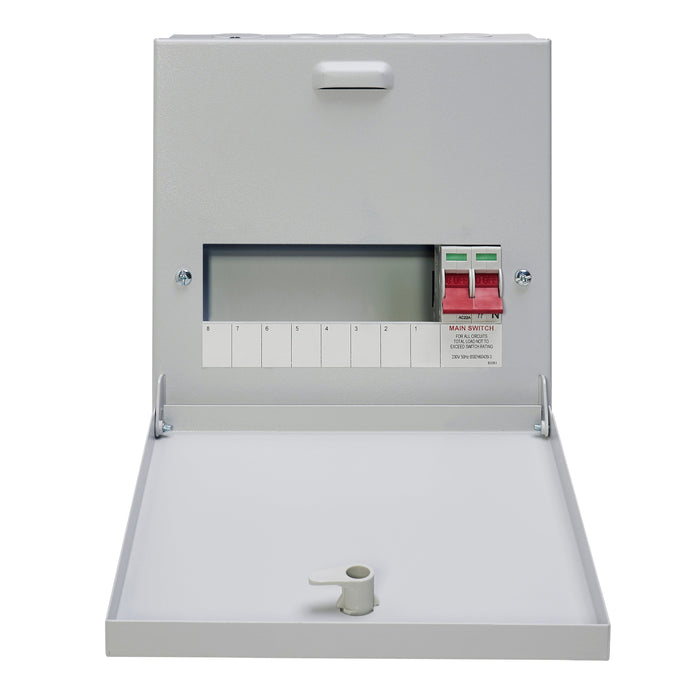

Crabtree 18SN08L Loadstar 8 Way 100A 1P+N Type A Surface Distribution Board c/w Switch Disconnector
Crabtree 18SN08L Loadstar 8 Way 100A 1P+N Surface Distribution Board with Switch Disconnector
Product Overview
The Crabtree 18SN08L Loadstar 8 Way 100A Surface Distribution Board provides a dependable, compliant solution for surface-mounted electrical distribution in domestic, commercial, and light industrial environments. Supplied complete with a 100A 1P+N switch disconnector, it offers secure isolation and straightforward installation where a surface enclosure is required.
Designed and manufactured in the UK to BS EN 61439-3, this Loadstar board delivers long-lasting performance with a durable powder-coated finish and compatibility with a wide range of Crabtree final circuit protection devices.
Key Features & Benefits
- 8-way surface mounted distribution board with main switch only configuration (Type ‘A’).
- Includes a 100A main switch disconnector with twin line and neutral supply terminals.
- Supplied with a 100A fixed busbar assembly for reliable internal connection.
- Compatible with Crabtree Loadstar 10kA SP MCBs (6A to 63A).
- Accepts Crabtree Loadstar RCBOs from 6A to 50A.
- Supports the Crabtree miniature Type 2 SPD (CRT2SPD3W/1) for surge protection.
- Finished in RAL 7035 grey durable powder coat for a professional appearance.
- Designed and manufactured in the UK to BS EN 61439-3.
Ideal For
Suitable for surface-mounted installations in utility rooms, plant areas, commercial back-of-house spaces, and domestic settings where an 8-way board is required for multiple final circuits.
Technical Summary
- Ways: 8
- Rated Current: 100A
- Poles: 1P+N
- Mounting: Surface
- Standard: BS EN 61439-3
- Finish: RAL 7035 Grey Powder Coat
