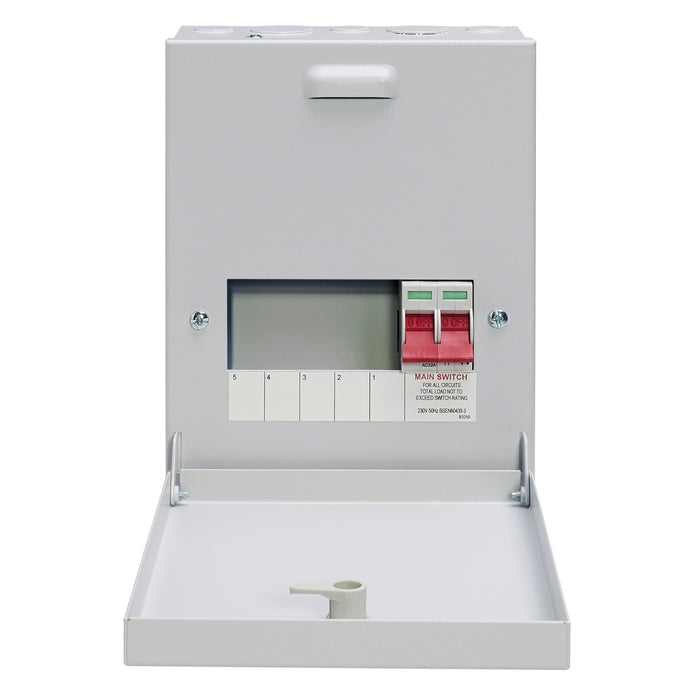

Crabtree 18SN05L Loadstar 5 Way 100A 1P+N Type A Surface Distribution Board c/w Switch Disconnector
Crabtree 18SN05L Loadstar 5 Way 100A 1P+N Surface Distribution Board with Switch Disconnector
Product Overview
The Crabtree 18SN05L Loadstar 5 Way 100A Surface Distribution Board is a robust and reliable solution for low-voltage electrical distribution in residential, commercial, and light industrial installations. Supplied complete with a 100A switch disconnector, this surface-mounted board delivers safe isolation and dependable circuit protection in a compact, professional enclosure.
Designed and manufactured in the UK, the Loadstar range complies with BS EN 61439-3, ensuring high performance, safety, and long-term durability. Its neutral and line switching capability makes it ideal for modern electrical installations requiring enhanced protection and compliance.
Key Features & Benefits
- 5-way surface mounted distribution board with main switch only configuration.
- Supplied with a 100A 1P+N switch disconnector for safe isolation.
- Twin line and neutral supply terminals with a fixed 100A busbar assembly.
- Compatible with Crabtree Loadstar 10kA SP MCBs (6A to 63A).
- Accepts Crabtree Loadstar RCBOs from 6A to 50A.
- Supports installation of Crabtree Type 2 SPD (CRT2SPD3W/1) for surge protection.
- Durable RAL 7035 grey powder-coated steel enclosure.
- Designed and manufactured in the UK to BS EN 61439-3.
Applications
This Loadstar distribution board is suitable for a wide range of applications, including domestic consumer units, commercial electrical installations, plant rooms, and utility areas where surface mounting is required.
Technical Compliance
- Rated Current: 100A
- Configuration: 1 Pole + Neutral (1P+N)
- Mounting Type: Surface
- Standard: BS EN 61439-3
