Crabtree 17VMTPNLA Powerstar 3P Surge Arrester Kit - Type 1
Crabtree 17VMTPNLA Powerstar 3P Surge Arrester Kit – Type 1
The Crabtree 17VMTPNLA Powerstar Type 1 Surge Arrester Kit provides advanced surge protection for Powerstar VM160 panel boards. Designed to protect electrical systems from high-energy transient overvoltages, this kit helps safeguard equipment and maintain system reliability in commercial and industrial installations.

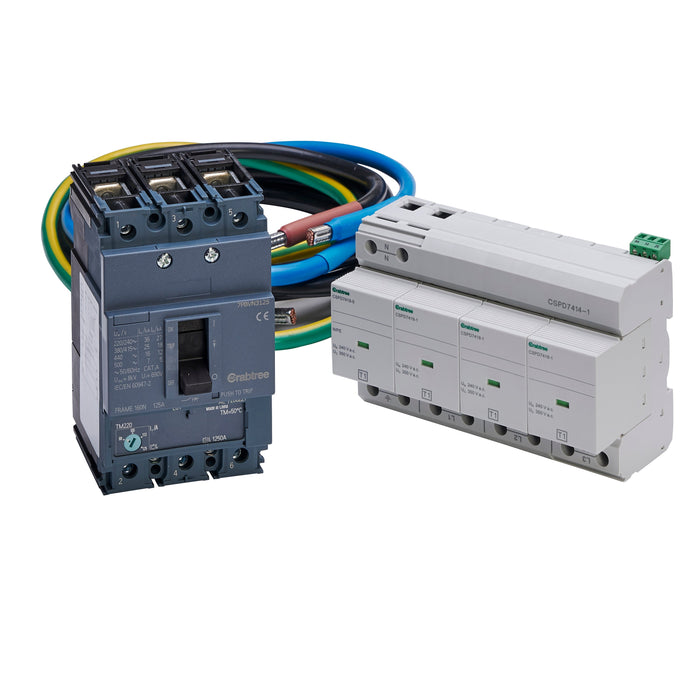

The kit includes a Type 1 surge protection device (SPD) along with a Crabtree 7PBV MCCB for SPD protection, ensuring safe operation and compliance with modern electrical protection standards. It also includes a cable loom kit and a dedicated SPD mounting bracket for straightforward installation.
Designed to integrate neatly within the Powerstar VM160 system, the SPD fits into the dedicated knock-out slot in the panel board, while the MCCB utilises the bottom right-hand way for connection. The kit is fully 18th Edition compliant and suitable for installations operating at a nominal voltage of 240/415V AC.
Key Features
- Type 1 surge arrester kit for Powerstar VM160 panel boards
- Includes Type 1 SPD for high-energy surge protection
- Supplied with Crabtree 7PBV MCCB for SPD protection
- Includes cable loom kit and dedicated SPD mounting bracket
- 18th Edition compliant surge protection solution
- SPD fits into dedicated knock-out slot in the panel board
- MCCB utilises the bottom right-hand way for connection
- Nominal operating voltage 240/415V AC
