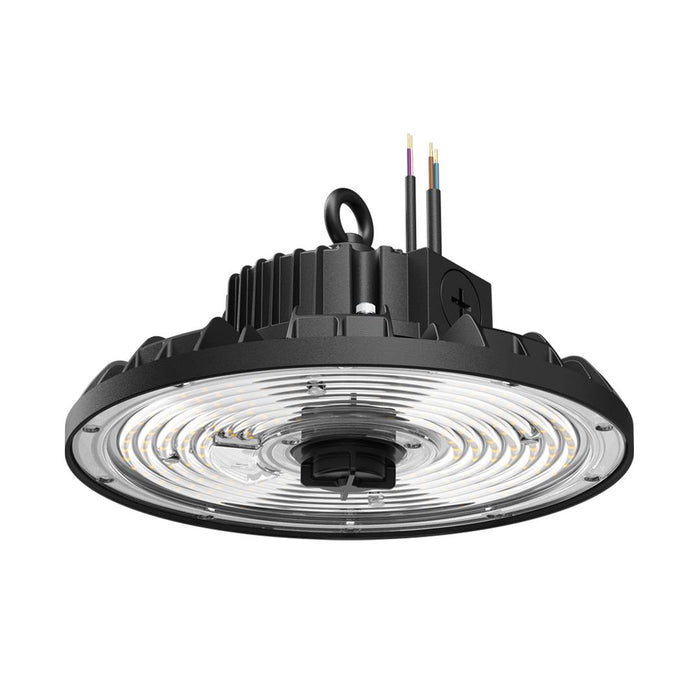

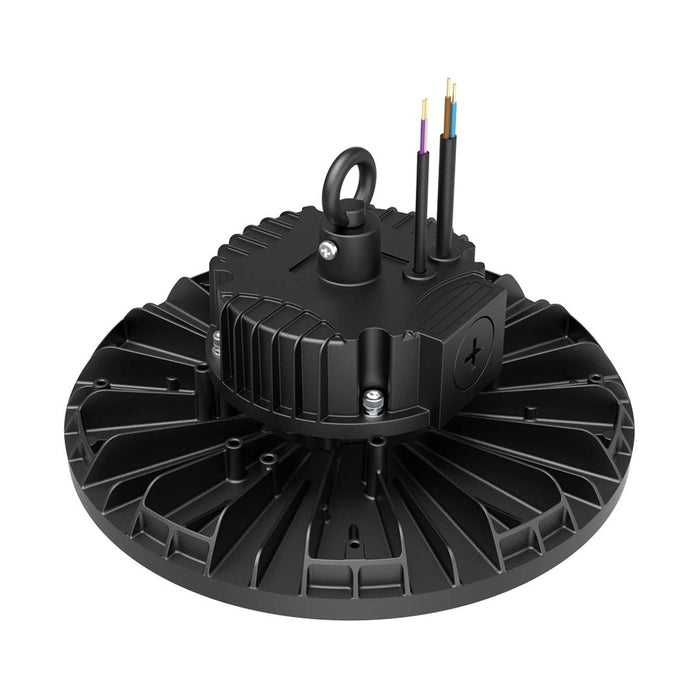

Collingwood HBAS1V40EMS FlexBay 100W/125W/150W IP65 High Bay Luminaire Emergency, 0-10V, 4000K
Collingwood HBAS1V40EMS Flex High Bay Luminaire Emergency 100W/125W/150W 0-10V 4000K
Product Description
The Collingwood HBAS1V40EMS Flex Emergency High Bay is a high-performance, wattage-switchable LED luminaire designed for commercial, industrial and high-ceiling applications. Offering selectable 100W, 125W and 150W outputs with efficiency of up to 150lm/W, it delivers powerful 4000K neutral white illumination while providing integrated emergency functionality.
Designed for flexible and energy-efficient installations, the HBAS1V40EMS supports 0-10V dimming and a range of plug-in Zhaga sensor options. Its compact construction, removable driver and pre-wired supply cable help simplify installation and maintenance, while the IP65-rated aluminium housing provides reliable protection in demanding environments.
Features & Benefits
- Integrated emergency functionality for enhanced safety in commercial and industrial installations.
- Selectable 100W, 125W or 150W output for flexible lighting requirements.
- High efficiency of up to 150lm/W for excellent energy performance.
- Delivers approximately 15,000lm, 18,800lm or 22,500lm depending on the selected wattage.
- 4000K neutral white colour temperature ideal for warehouses, workshops and industrial spaces.
- 0-10V dimming enables flexible lighting control and energy management.
- Twist-and-lock Zhaga sensor compatibility allows lighting controls to be installed quickly.
- Compatible with Casambi, daylight, PIR and step-dim control options.
- Emergency options include manual test, self-test and DALI-2.
- Compact and lightweight construction helps simplify installation.
- Removable driver provides convenient access for maintenance.
- Impact and corrosion-resistant aluminium housing for long-term durability.
- 100% recyclable aluminium housing supports more sustainable installations.
- Pre-wired with 1.0m H05RN-F 3 x 1.0mm² cable.
- Suitable for ceiling mounting or suspension using jack chain, M10 drop rod or catenary wire.
- IP65 rated for protection against dust and water ingress.
- 90° beam angle provides effective light distribution across large areas.
Specifications
- Product Code: HBAS1V40EMS
- Wattage: 100W / 125W / 150W selectable
- Lumen Output: 15,000lm / 18,800lm / 22,500lm
- Colour Temperature: 4000K
- CRI: >80
- Beam Angle: 90°
- IP Rating: IP65
- Dimming: 0-10V
- Sensor Options: Casambi, daylight, PIR and step-dim
- Emergency Options: Manual test, self-test and DALI-2
- Mounting Type: Ceiling or suspended
- Body Material: ADC12 aluminium alloy
- Colour / Finish: Black
