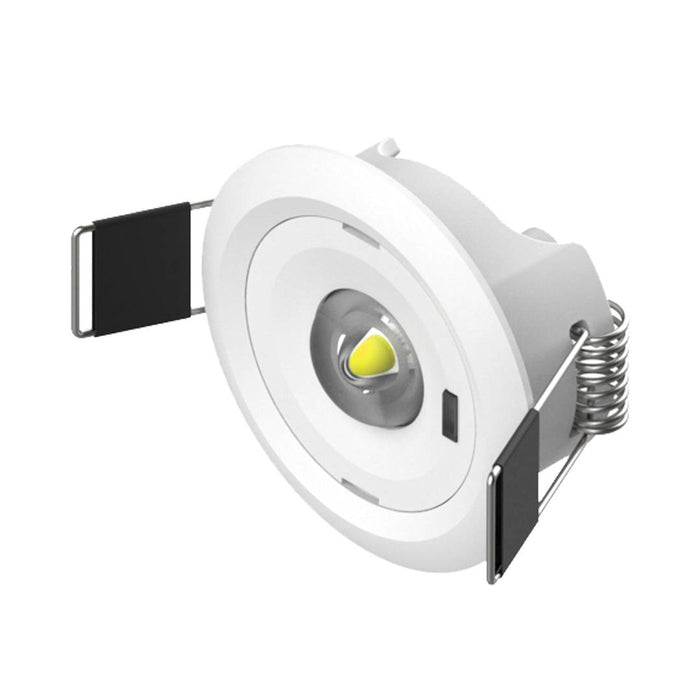

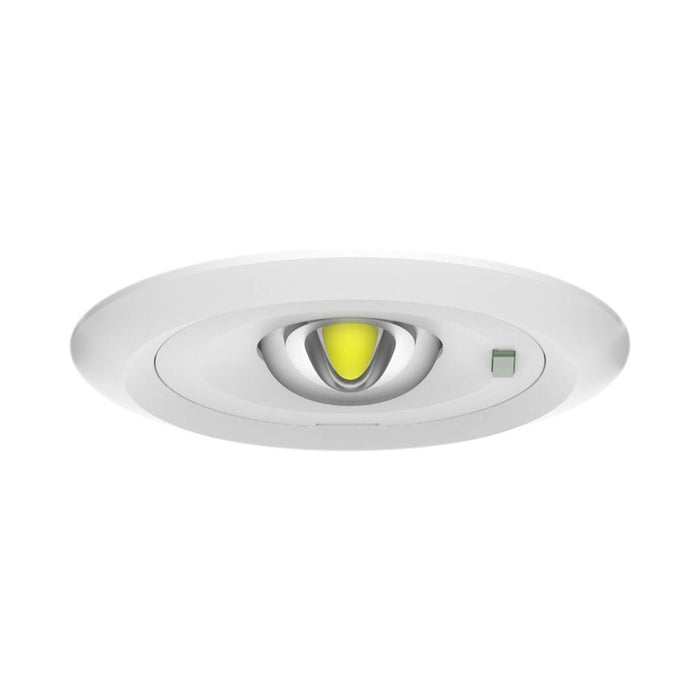

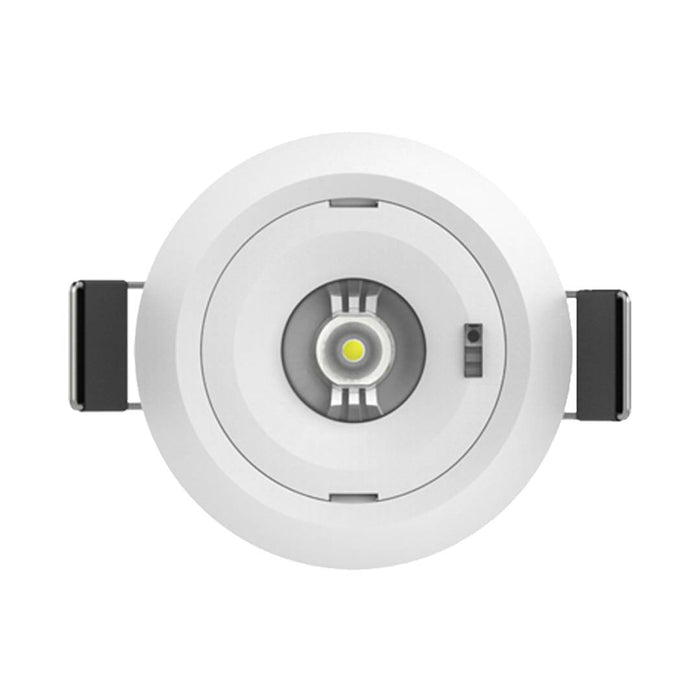

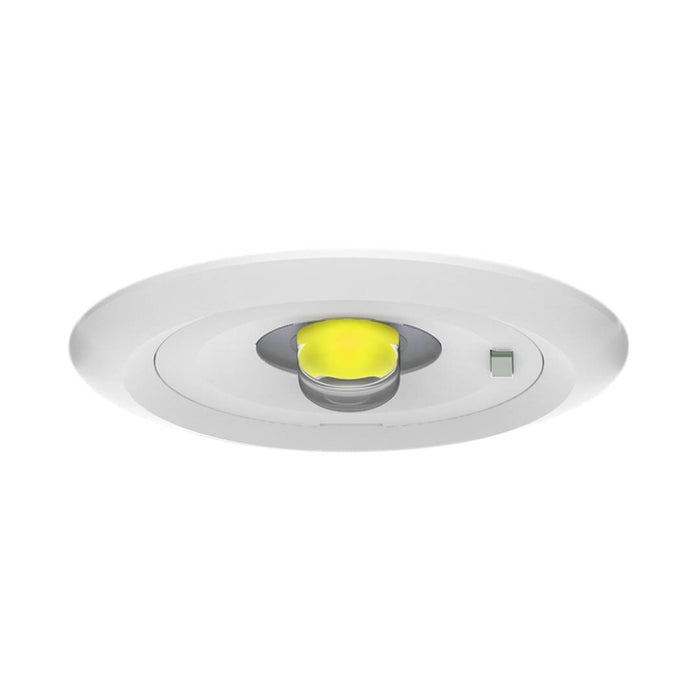

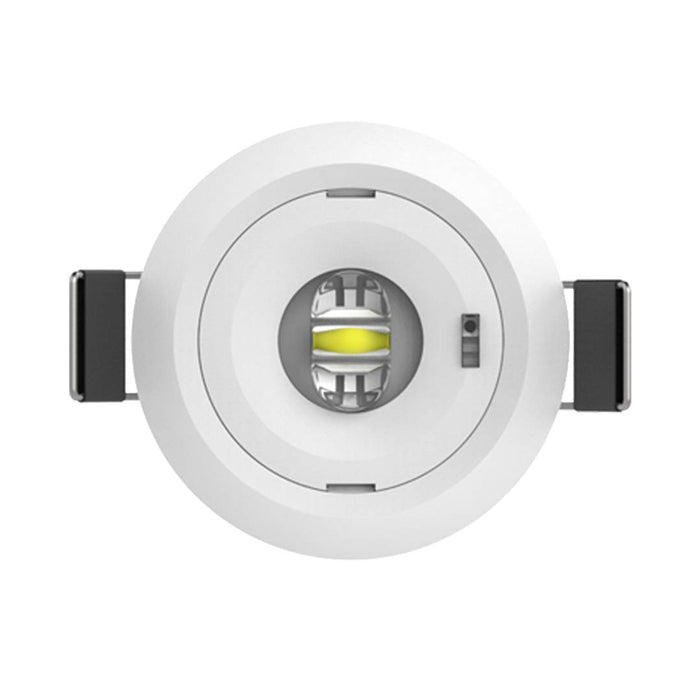

Collingwood EMRW1MS Salvus Route Recessed Emergency Downlight, White, Non-Maintained, Manual & Self-Test, 1.5W, IP20
Collingwood EMRW1MS Salvus Route Recessed Emergency Downlight White Non-Maintained Manual & Self-Test 1.5W IP20
Product Description
The Collingwood EMRW1MS Salvus Route is a compact 1.5W recessed emergency LED downlight designed to provide reliable non-maintained emergency illumination in commercial, public and industrial buildings. Delivering 150 lumens at 6500K, it offers a discreet ceiling-mounted solution for escape routes, corridors and open-area emergency lighting applications.
Supplied with both open-area and corridor lenses, the Salvus Route can be configured to provide suitable light distribution for different emergency lighting layouts. Its wide 148° beam angle and compact recessed design make it a versatile choice where unobtrusive emergency lighting is required.
The luminaire combines manual-test and self-test functionality in a single product for flexible commissioning and maintenance. Removing the green 2-pin jumper connector switches the unit to manual-test operation. A long-life LiFePO4 battery with temperature monitoring and a rugged polycarbonate housing provide dependable performance.
Features & Benefits
- Compact 1.5W non-maintained recessed LED emergency downlight.
- Delivers 150 lumens of 6500K emergency illumination.
- Combined manual-test and self-test functionality provides flexible testing and maintenance.
- Switches to manual-test operation by removing the green 2-pin jumper connector.
- Long-life LiFePO4 battery provides dependable emergency performance.
- Battery temperature monitoring supports reliable battery operation.
- Open-area and corridor lenses included for flexible emergency lighting layouts.
- Wide 148° beam angle provides effective emergency light distribution.
- Rugged polycarbonate construction for long-lasting performance.
- Recessed ceiling installation provides a neat and discreet appearance.
- 50mm cut-out for compact installation.
- Ideal for escape routes, corridors, open areas and general emergency lighting applications.
Specifications
- Product Code: EMRW1MS
- Product Range: Salvus Route
- Emergency Operation: Non-maintained
- Wattage: 1.5W
- Lumen Output: 150lm
- Colour Temperature: 6500K
- Beam Angle: 148°
- IP Rating: IP20
- Cut-Out: 50mm
- Emergency Test Options: Manual test / Self-test
- Lens Options: Open area and corridor lenses included
- Mounting Type: Recessed ceiling
- Base Shape: Round
- Body Material: Polycarbonate
- Colour / Finish: White
- Sensor: None
- Light Window: 1
