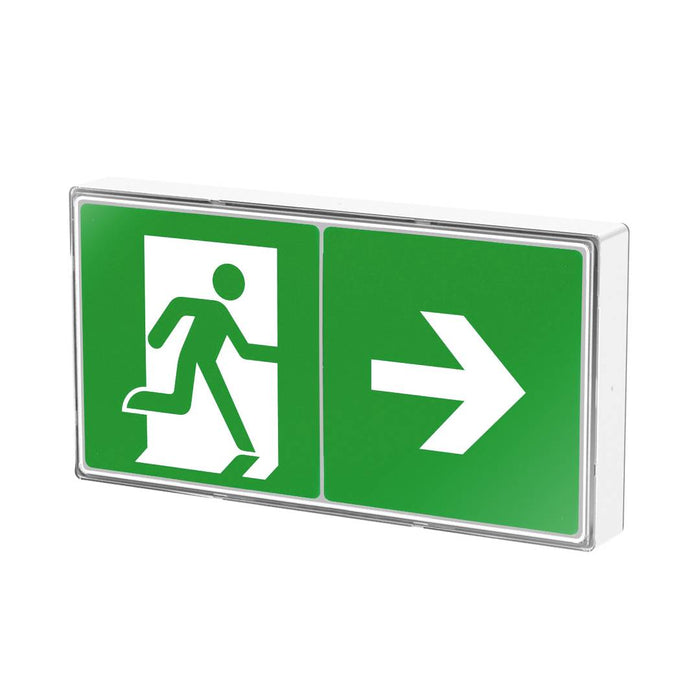

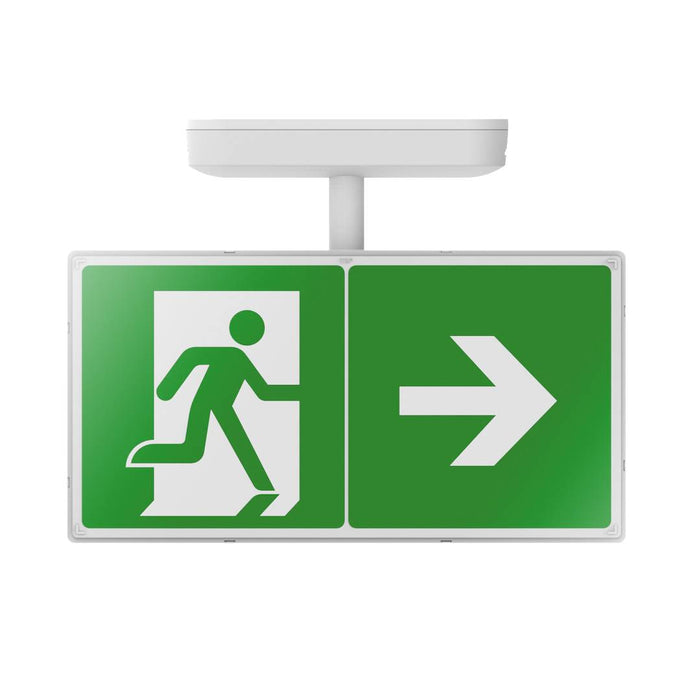

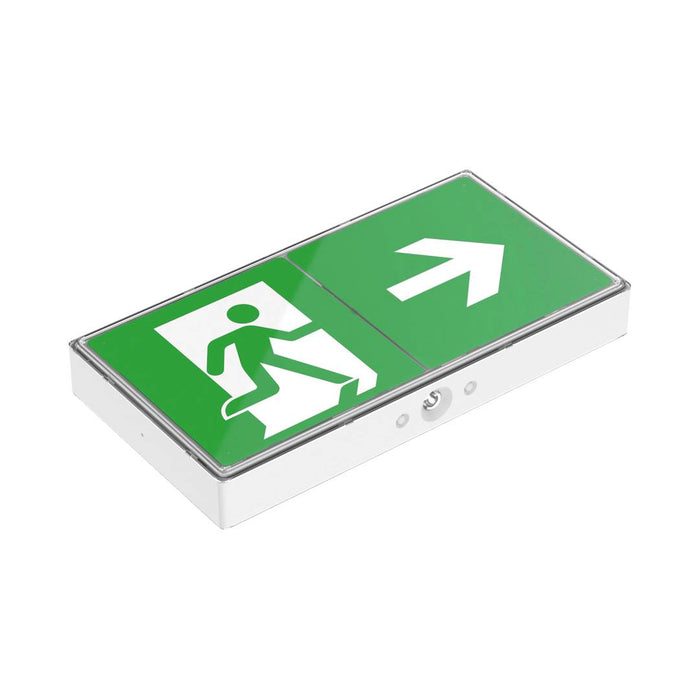

Collingwood EMBXWMSHP Salvus High Pro Emergency Exit Box 32M Viewing Distance, White, Maintained/Non-Maintained, Manual & Self-Test, 3W, IP65
Collingwood EMBXWMSHP Salvus High Pro Emergency Exit Box 32m Viewing Distance White Maintained/Non-Maintained Manual & Self-Test 3W IP65
Product Description
The Collingwood EMBXWMSHP Salvus High Pro Emergency Exit Box is a robust 3W LED emergency exit sign designed to provide clear and dependable directional signage across commercial, industrial and public buildings. Offering a viewing distance of up to 32 metres, it is an ideal solution for identifying escape routes and final exits.
Designed for maintained and non-maintained operation, the Salvus High Pro features selectable manual-test and self-test functionality for flexible emergency lighting maintenance. Its long-life LiFePO4 battery incorporates temperature monitoring to support reliable emergency performance, while the rugged IP65-rated polycarbonate housing provides excellent protection against dust and water ingress.
Delivering 70 lumens at 6500K, the EMBXWMSHP also provides push-bar illuminance for final exit applications. A legend kit is included for versatile directional signage, and the unit is compliant with ISO 7010 and ISO 3864. The self-test function can also be disabled when required by removing the green 2-pin jumper connector.
Features & Benefits
- High-performance emergency LED exit box with a viewing distance of up to 32 metres.
- 3W LED output delivers 70 lumens of emergency illumination.
- Suitable for maintained and non-maintained emergency operation.
- Selectable manual-test and self-test functionality simplifies testing and maintenance.
- Long-life LiFePO4 battery supports dependable emergency operation.
- Battery temperature monitoring helps maintain reliable battery performance.
- IP65 rated for protection against dust and water ingress.
- Rugged polycarbonate housing provides excellent durability for demanding environments.
- Compliant with ISO 7010 and ISO 3864 safety signage standards.
- Provides push-bar illuminance for final exit applications.
- Legend kit included for flexible emergency directional signage.
- Self-test functionality can be disabled by removing the green 2-pin jumper connector.
- 6500K colour temperature provides clear emergency illumination.
- 50° beam angle provides focused light distribution.
Specifications
- Product Code: EMBXWMSHP
- Product Range: Salvus High Pro
- Viewing Distance: Up to 32m
- Wattage: 3W
- Lumen Output: 70lm
- Colour Temperature: 6500K
- Beam Angle: 50°
- IP Rating: IP65
- Operation: Maintained / Non-maintained
- Emergency Test Options: Manual test / Self-test
- Mounting Type: Wall
- Body Material: Polycarbonate
- Colour / Finish: White
- Base Shape: Rectangular
- Light Window: 1
- Length: 362mm
- Width: 190mm
- Legend Kit: Included
Data Sheet:
Instruction Manual:
