Collingwood EMBXWMS Salvus Emergency Exit Box 32M Viewing Distance, White, Maintained/Non-Maintained, Manual & Self-Test, 3W, IP20
Collingwood EMBXWMS Salvus Emergency Exit Box 32m Viewing Distance White Maintained/Non-Maintained Manual & Self-Test IP20
Product Description

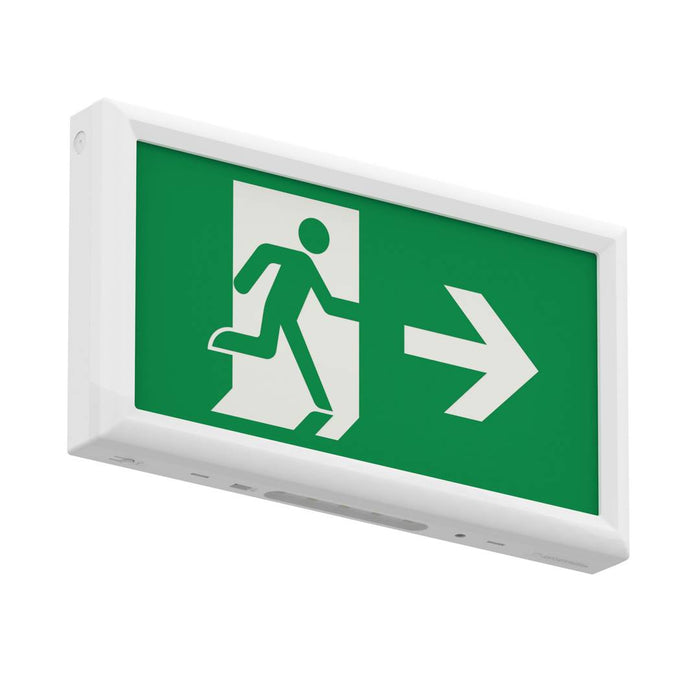

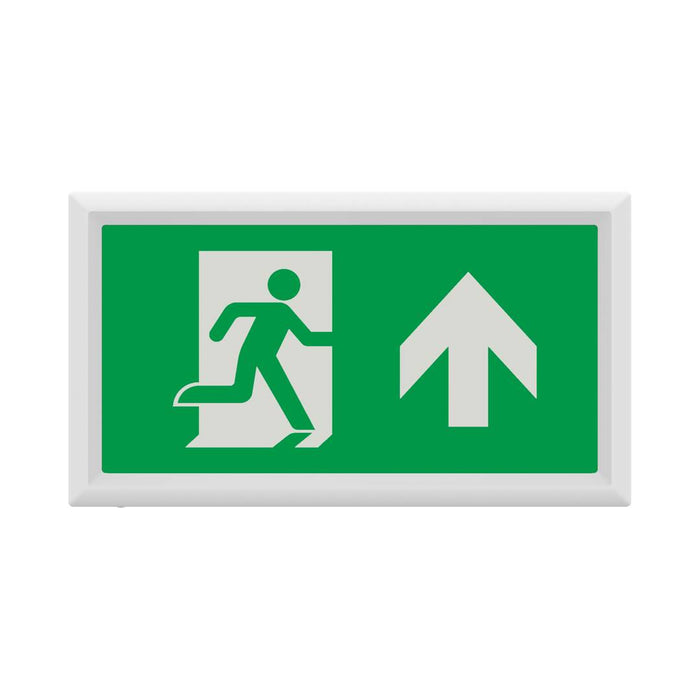

The Collingwood EMBXWMS Salvus Emergency Exit Box is a robust LED exit sign designed to provide clear and dependable emergency directional signage in commercial, public and industrial buildings. Offering a viewing distance of up to 32 metres, it is suitable for clearly identifying escape routes and final exits.
The Salvus Exit Box supports both maintained and non-maintained operation and features selectable manual-test and self-test functionality for flexible emergency lighting maintenance. A long-life LiFePO4 battery with temperature monitoring helps provide dependable performance during emergency operation.
Constructed from durable polycarbonate and compliant with ISO 7010 and ISO 3864, the EMBXWMS is supplied with a comprehensive legend kit for versatile directional signage. It also provides push-bar illuminance for final exit applications, while the self-test function can be disabled when required by removing the green 2-pin jumper connector.
Features & Benefits
- Emergency LED exit box with a viewing distance of up to 32 metres.
- Suitable for maintained and non-maintained emergency operation.
- Selectable manual-test and self-test functionality simplifies testing and maintenance.
- Long-life LiFePO4 battery provides dependable emergency performance.
- Battery temperature monitoring helps support reliable battery operation.
- Durable polycarbonate housing for long-lasting performance.
- Compliant with ISO 7010 and ISO 3864 safety signage standards.
- Provides push-bar illuminance for final exit applications.
- Legend kit included for flexible emergency directional signage.
- Self-test functionality can be disabled by removing the green 2-pin jumper connector.
- Flexible mounting options include BESA, M20 conduit and wall mounting.
- 6500K LED output provides clear emergency illumination.
Specifications
- Product Code: EMBXWMS
- Product Range: Salvus
- Viewing Distance: Up to 32m
- Wattage: 2.5W
- Lumen Output: 26lm
- Colour Temperature: 6500K
- Beam Angle: 93°
- IP Rating: IP20
- Operation: Maintained / Non-maintained
- Emergency Test Options: Manual test / Self-test
- Mounting Type: BESA / M20 conduit / Wall
- Body Material: Polycarbonate
- Colour / Finish: White
- Base Shape: Rectangular
- Light Window: 1
- Length: 330mm
- Width: 185mm
- Legend Kit: Included
