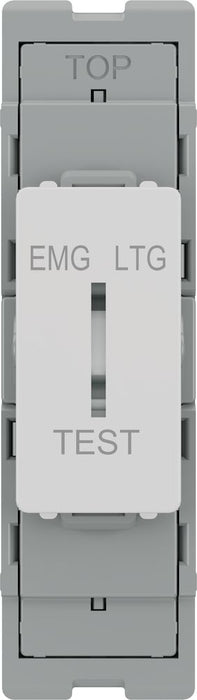

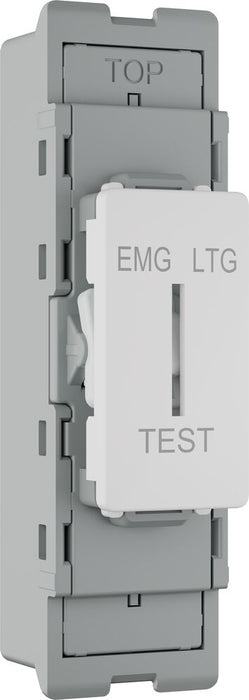

BG GridLite MPCDW12EL Evolve 20A 16AX SP 2-Way Key Switch Module "EMG LTG TEST" - White

BG GridLite MPCDW12EL Evolve 20A 16AX SP 2-Way Key Switch Module "EMG LTG TEST" - White

Product Description

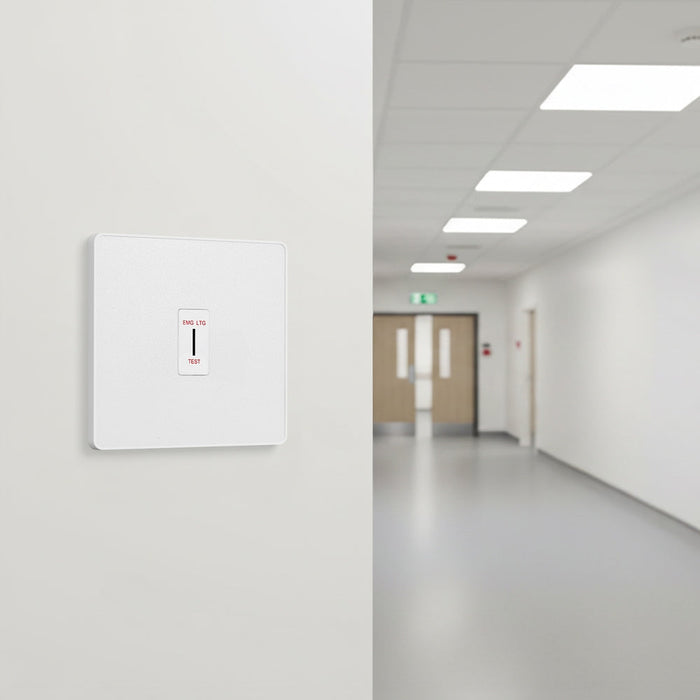

The BG GridLite MPCDW12EL Evolve 20A 16AX SP 2-Way Key Switch Module provides a secure and practical switching solution for emergency lighting test applications. Finished in white and clearly marked "EMG LTG TEST", the module is designed for use with compatible BG GridLite front plates in residential, commercial and public building installations.

The key-operated design helps prevent unauthorised operation while allowing controlled testing of emergency lighting circuits. Its push-fit clip-in design enables quick installation without a separate yoke or module screws, while the modular GridLite system allows individual modules to be replaced or reconfigured without disturbing adjacent modules.

Features

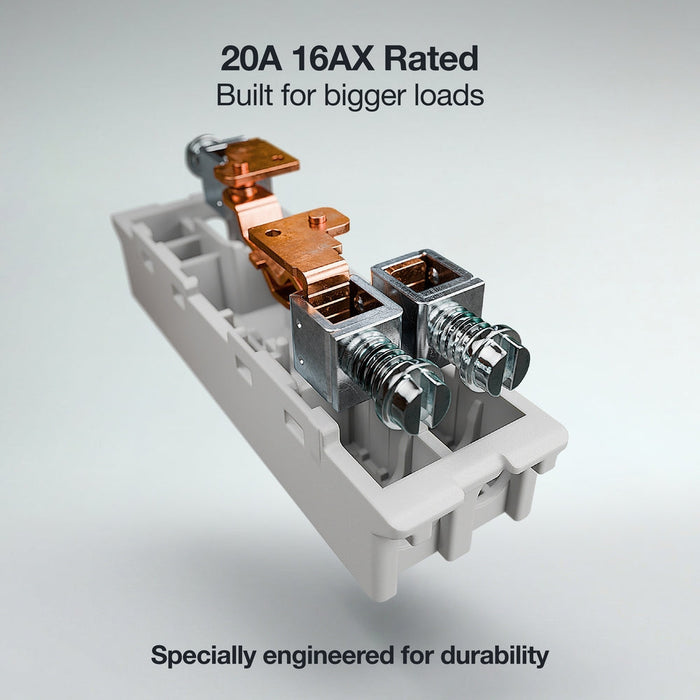

• 20A 16AX single-pole 2-way key switch module.
• Clearly marked "EMG LTG TEST" for emergency lighting test applications.

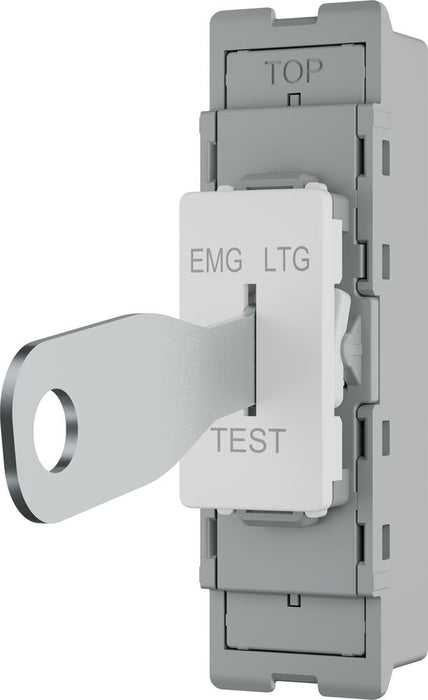

• Key-operated design helps prevent unauthorised operation.
• White finish designed to complement BG GridLite Evolve front plates.

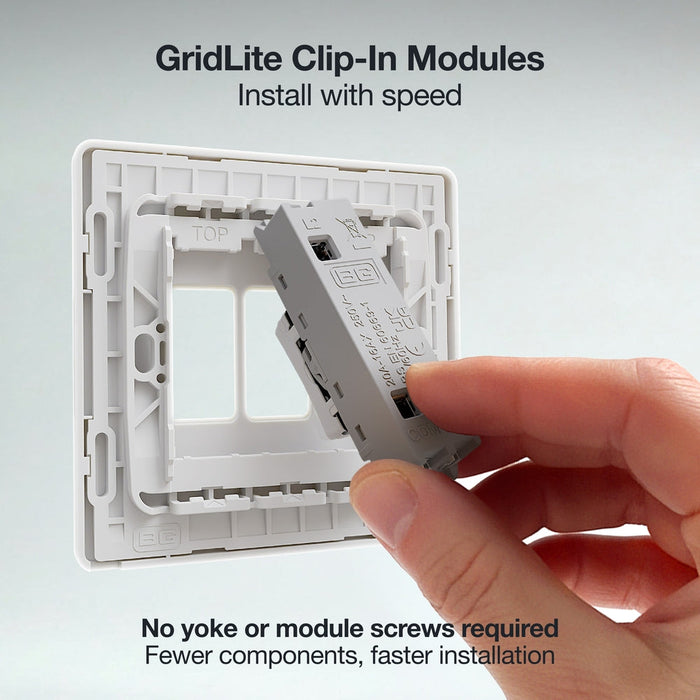

• Push-fit clip-in design for quick and convenient installation.
• No separate yoke or module fixing screws required.
• Individual module can be replaced without removing adjacent modules.

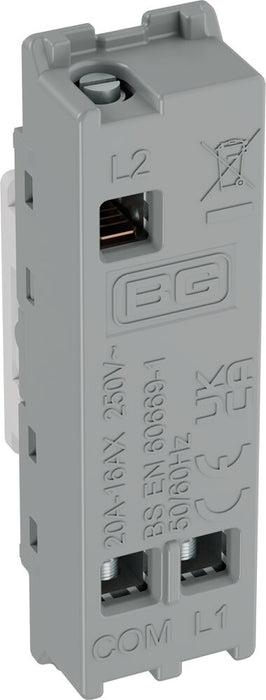

• Clearly labelled terminals help simplify wiring and installation.
• Backed-out retained terminal screws help prevent screw loss during installation.
• Compatible with interchangeable modules across the BG GridLite range.
• Compact modular design allows up to 3 modules to be fitted on a compatible 1-gang GridLite plate.

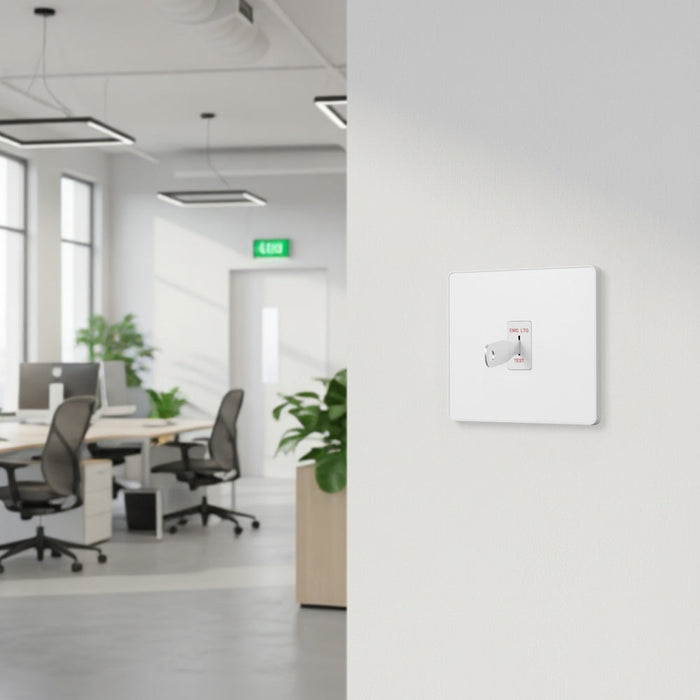

• Suitable for residential and commercial electrical installations.

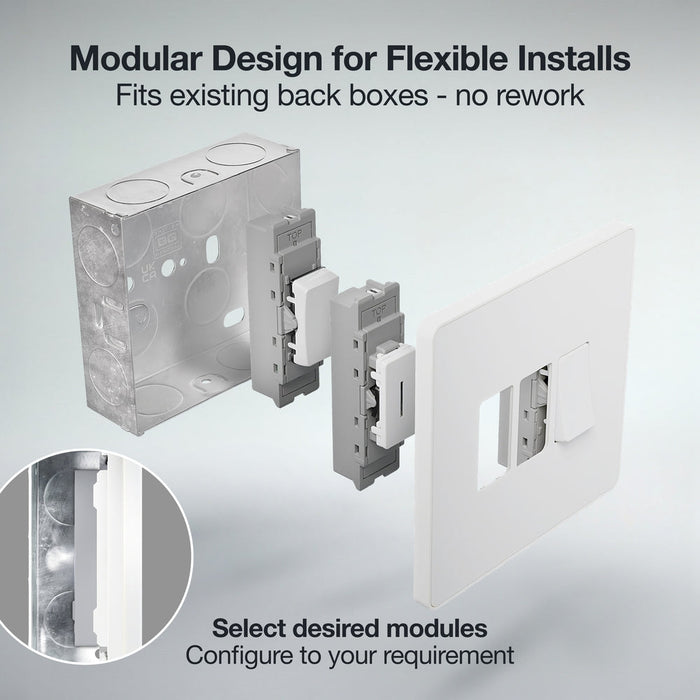

• Suitable for standard 16mm back boxes, with 3+ gang configurations requiring a minimum 25mm depth.

Specification

• Product Code: MPCDW12EL
• Range: BG GridLite Evolve
• Product Type: Key Switch Module
• Switch Type: Single Pole 2-Way
• Current Rating: 20A
• Lighting Load Rating: 16AX
• Marking: EMG LTG TEST
• Operation: Key Operated
• Colour: White
• Installation Type: Clip-In Grid Module
