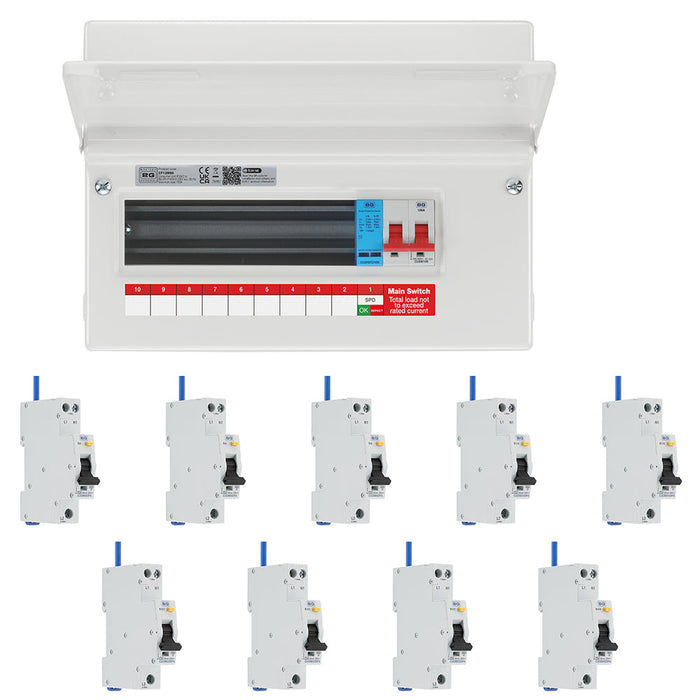

BG Fortress CF12MS9 12 Module 9 Way 100A Main Switch Consumer Unit with T2 SPD + 9 Bi-Directional DP RCBOs
BG Fortress CF12MS9 12 Module 9 Way 100A Main Switch Consumer Unit with T2 SPD + 9 Bi-Directional DP RCBOs
12 Module 9 Way 100A Main Switch Consumer Unit with Type 2 SPD.
This comes with 9 Bidirectional RCBOs Double Pole, Single Module, B Curve, 6kA, 30mA, Type A
- 3x 6A
- 2x 16A
- 1x 20A
- 3x 40A
Dimensions (HxWxD)mm for CF12MS9: 316 x 231 x 116mm
BG Fortress Circuit Protection
This range of consumer units offer a flexible solution for the 18th Edition Wiring Regulations BS7671.
Available in a number of sizes from 6 - 19 useable ways and supplied with 100A main switch and type 2 SPD.
MCB, RCBO, AFDD, and Control Devices can be fitted into the Consumer Unit depending on the circuit requirements.
A large range of consumer unit accessories are available, please visit the our website for more information.
Description:
This BG 12 module consumer unit offers a compact and future ready solution for domestic and light commercial installations, providing 9 usable ways within a well organised enclosure. Supplied unpopulated with a 100A main switch isolator and an integrated Type 2 surge protection device, it allows installers to configure tailored circuit protection while offering added defence against transient overvoltages, alongside straightforward installation and a clean, professional finished appearance.
Data Sheet:
Data Sheet for CF12MS9Data Sheet for Bi-Directional DP RCBO Type A 6kA
