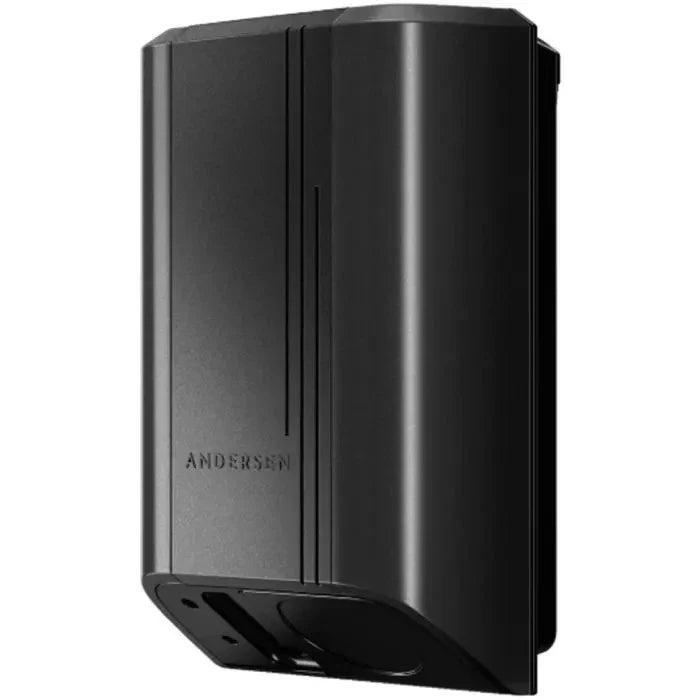

Andersen Q22SMBMB Quartz 22kW EV Charger Type 2 Socketed Midnight Black
Andersen Q22SMBMB Quartz 22kW EV Charger – Type 2 Socketed, Midnight Black
The Andersen Quartz 22kW EV Charger (Q22SMBMB) combines powerful electric vehicle charging with advanced smart technology and a sleek, compact design. Finished in elegant Midnight Black, this premium untethered EV charging point features a universal Type 2 socket, built-in Wi-Fi connectivity, solar compatibility and intelligent dynamic load management.
Designed for modern homes and compatible electric vehicles, the Andersen Quartz delivers up to 22kW charging power when installed with a suitable three-phase electrical supply. Its socketed configuration allows drivers to use their own compatible Type 2 charging cable, providing a clean, uncluttered appearance when the charger is not in use.
With smart tariff compatibility, remote app control, advanced electrical safety monitoring and 7 years of Andersen Care Cover, the Quartz offers a sophisticated and dependable EV charging solution.
Key Features
- 22kW EV Charging: Delivers up to 22kW charging power with a suitable three-phase electrical supply and compatible vehicle.
- Untethered Type 2 Socket: Universal Type 2 charging connection for compatible electric and plug-in hybrid vehicles.
- Midnight Black Finish: Stylish contemporary design that complements modern residential properties.
- Compact Wall-Mounted Design: Space-saving dimensions of 286 x 172 x 110mm.
- Built-In Wi-Fi Connectivity: Connects to your home network for intelligent charging management.
- Andersen Smart App: Remotely manage charging schedules, monitor electricity usage, review charging reports and lock or unlock the charge point.
- Solar-Compatible Charging: Supports integration with suitable solar PV systems to make greater use of renewable electricity.
- Intelligent Octopus Go Compatibility: Supports compatible smart electricity tariffs to help optimise charging costs.
- Dynamic Load Management: Automatically adjusts charging demand to help prevent overloading the property's electrical supply.
- Advanced Fault Detection: Includes real-time system monitoring, earth monitoring, contactor fault detection and integrated 6mA DC protection.
- LED Charging Status Indicator: Provides clear visual feedback on charging activity.
- Illuminated Type 2 Socket: Makes connecting the charging cable easier during night-time use.
- Weather-Resistant Construction: IP65-rated enclosure for outdoor installation.
- IK10 Impact Resistance: Robust construction designed to withstand mechanical impacts.
- Simplified Installation: Designed for installation without a separate earth rod where the manufacturer's requirements are satisfied.
- 7-Year Andersen Care Cover: Extended manufacturer-backed protection, subject to applicable terms and conditions.
Powerful 22kW Three-Phase EV Charging
The Andersen Quartz 22kW Smart EV Charger is designed to deliver efficient AC charging for compatible electric and plug-in hybrid vehicles. When connected to a suitable three-phase electrical supply, it can provide charging power of up to 22kW, subject to the vehicle's onboard charging capability.
This makes it particularly suitable for properties with three-phase electricity supplies and vehicles capable of accepting higher AC charging rates.
The untethered Type 2 socket allows users to connect their own compatible charging cable, offering flexibility for different vehicles while keeping the charging point neat when not in use.
Smart Charging with the Andersen App
Take control of your electric vehicle charging through the Andersen smart charging app, compatible with Apple iOS and Android mobile devices.
Built-in Wi-Fi connectivity enables access to intelligent charging features, including:
- Remote monitoring of charging sessions and charging progress.
- Customisable charging schedules to suit daily routines.
- Electricity consumption tracking and detailed charging reports.
- Remote locking and unlocking of the charge point.
- Solar charging monitoring where a suitable system is configured.
- Over-the-air software updates for supported smart functionality.
These connected features make it easier to manage electricity consumption, charging costs and everyday EV charging convenience.
Solar Compatibility and Intelligent Octopus Go Integration
The Andersen Quartz supports solar-compatible EV charging, allowing homeowners with a suitably configured solar PV system to make better use of electricity generated by their solar panels.
It also supports compatible smart electricity tariffs, including Intelligent Octopus Go, helping users schedule vehicle charging around suitable lower-cost electricity periods.
Smart tariff functionality and solar integration can help reduce reliance on higher-priced grid electricity, depending on the household's energy setup, tariff and charging requirements.
Dynamic Load Management for Efficient Power Distribution
The Andersen Quartz features intelligent dynamic load management technology designed to balance EV charging demand with other electrical appliances in the property.
Using wired current sensors and current-reducing hardware, the charger monitors electricity demand and adjusts charging output when required. This helps prevent excessive electrical loading while maintaining efficient vehicle charging.
Advanced Electrical Safety and Fault Monitoring
Engineered for reliable everyday operation, the Andersen Quartz incorporates comprehensive electrical safety monitoring and fault detection technology.
- Real-time health monitoring system.
- Automatic start-up self-testing.
- Earth monitoring and PME monitoring.
- Contactor fault detection.
- Integrated 6mA DC fault protection.
- Dynamic load monitoring and current reduction.
- Remote software-enabled charge point locking.
These integrated features support dependable charging operation and help protect the charging installation when correctly installed in accordance with the manufacturer's instructions.
Compact Design with Illuminated Type 2 Socket
Measuring just 286mm high, 172mm wide and 110mm deep, the Andersen Quartz offers a discreet charging solution for modern residential properties.
Its Midnight Black finish creates a sophisticated appearance, while the untethered configuration eliminates permanently attached charging cables.
A front LED indicator displays charging status, and the illuminated Type 2 socket makes connecting the charging cable more convenient in low-light conditions.
Durable IP65 and IK10-Rated Construction
The Andersen Quartz is designed for dependable outdoor use, featuring an IP65-rated enclosure that provides protection against dust and water jets.
Its IK10 impact resistance rating provides additional durability against mechanical impacts, making it suitable for exposed residential installations.
The charger operates in temperatures ranging from -25°C to +45°C and is designed for humidity levels of up to 95% RH, non-condensing.
Technical Specifications
| Manufacturer | Andersen EV |
|---|---|
| Model Number | Q22SMBMB |
| Product Range | Andersen Quartz |
| Product Type | Smart Socketed EV Charger |
| Colour | Midnight Black |
| Maximum Charging Power | 22kW |
| Charging Connection | Type 2 Socket |
| Cable Configuration | Untethered |
| Vehicle Compatibility | Type 2 Electric and Plug-in Hybrid Vehicles |
| Smart App Control | Yes – Andersen App |
| Remote Charging Scheduling | Yes |
| Remote Locking | Yes |
| Wi-Fi Connectivity | Yes |
| Mobile Device Compatibility | Apple iOS and Android |
| Solar Compatibility | Yes |
| Smart Tariff Compatibility | Intelligent Octopus Go |
| Dynamic Load Management | Yes |
| Integrated DC Fault Protection | 6mA DC |
| Charging Status Indicator | Front LED Indicator |
| Additional Lighting | Illuminated Type 2 Socket |
| Mounting Type | Wall Mounted |
| Installation Height | 0.75m–1.2m Above Ground Level |
| Enclosure IP Rating | IP65 |
| Impact Resistance | IK10 |
| Operating Temperature | -25°C to +45°C |
| Operating Humidity | Up to 95% RH, Non-Condensing |
| Supply Frequency | 50/60Hz |
| Dimensions (H x W x D) | 286 x 172 x 110mm |
| Certification | CE Certified |
| Warranty | 7 Years Andersen Care Cover (Subject to Terms) |
Installation and Electrical Requirements
The Andersen Quartz 22kW EV Charger is designed for installation by a suitably qualified electrician in accordance with the manufacturer's instructions and applicable UK electrical regulations.
Important: A suitable three-phase electrical supply is required to achieve the charger's maximum 22kW output. Actual charging speed depends on the vehicle's onboard charger, electrical supply capacity and configured load management settings.
The manufacturer's product information also references a 230V single-phase supply specification. The required supply configuration for this 22kW model should therefore be confirmed against the installation manual before purchase or installation.
Why Choose the Andersen Quartz 22kW EV Charger?
The Andersen Q22SMBMB Quartz 22kW Socketed EV Charger is an excellent choice for homeowners seeking a compact, stylish and intelligent electric vehicle charging solution.
Its universal Type 2 socket, Midnight Black finish, solar compatibility, smart tariff integration and advanced dynamic load management provide an effective combination of charging flexibility, convenience and energy management.
With robust IP65 and IK10 protection, intelligent safety monitoring and seven years of Andersen Care Cover, the Quartz is designed to deliver reliable long-term charging performance.
Installation Manual
Download Andersen Quartz EV Charger Installation Manual (PDF)
