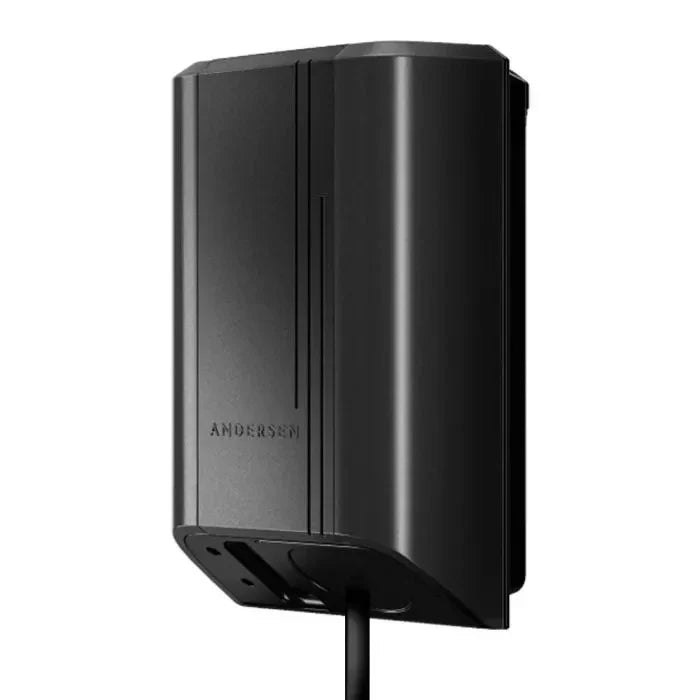

Andersen Q2265MBMB Quartz 22kW 6.5m Tethered Midnight Black
Andersen Q2265MBMB Quartz 22kW EV Charger – 6.5m Tethered Type 2, Midnight Black
The Andersen Quartz 22kW EV Charger (Q2265MBMB) combines high-performance electric vehicle charging with intelligent technology and contemporary styling. Finished in Midnight Black, this premium wall-mounted EV charger features a convenient 6.5m tethered Type 2 charging cable, built-in Wi-Fi, solar compatibility and dynamic load management.
Designed for electric and plug-in hybrid vehicles with Type 2 charging connections, the Andersen Quartz offers up to 22kW AC charging when connected to a suitable three-phase electrical supply and compatible vehicle. Its permanently attached 6.5m cable provides convenient everyday charging without needing to retrieve a separate charging lead.
With smart tariff compatibility, advanced electrical fault monitoring, an IP65-rated enclosure and 7 years of Andersen Care Cover, this compact EV charging point is designed for reliable and efficient home charging.
Key Features
- 22kW EV Charging: Provides up to 22kW AC charging power with a suitable three-phase electrical supply and compatible vehicle.
- 6.5m Tethered Type 2 Cable: Permanently attached charging cable offers convenient connection and generous reach across residential driveways.
- Midnight Black Finish: Premium contemporary appearance designed to complement modern properties.
- Type 2 Vehicle Compatibility: Suitable for electric and plug-in hybrid vehicles equipped with a Type 2 charging connection.
- Smart Andersen App: Remotely manage charging schedules, monitor energy consumption, review charging reports and lock or unlock the charger.
- Built-In Wi-Fi: Enables convenient access to connected charging features and remote monitoring.
- Solar-Compatible Charging: Supports integration with suitable solar PV systems to help maximise the use of renewable electricity.
- Intelligent Octopus Go Compatibility: Supports compatible smart electricity tariffs to help manage charging costs.
- Dynamic Load Management: Adjusts charging output according to household electrical demand to help prevent overloading.
- Integrated 6mA DC Protection: Built-in DC fault monitoring provides additional electrical safety protection.
- Advanced Fault Detection: Includes real-time health monitoring, automatic self-testing, earth monitoring and contactor fault detection.
- LED Charging Status Indicator: Front-mounted LED lighting provides clear charging status information.
- Compact Wall-Mounted Design: Space-saving dimensions of 286 x 172 x 110mm.
- IP65 Weather Protection: Dust-tight enclosure with protection against water jets for outdoor use.
- IK10 Impact Resistance: Robust construction designed to withstand mechanical impacts.
- Simplified Installation: Designed for installation without a separate earth rod where the manufacturer's installation requirements are satisfied.
- 7-Year Andersen Care Cover: Extended manufacturer-backed protection, subject to applicable terms and conditions.
Convenient Charging with a 6.5m Tethered Type 2 Cable
The Andersen Quartz Q2265MBMB includes a permanently attached 6.5m Type 2 charging cable, making it a practical choice for convenient home EV charging.
The generous cable length provides flexibility when connecting to vehicles parked in different positions or fitted with charging ports in different locations. Because the charging cable remains attached to the unit, there is no need to retrieve and connect a separate charging lead before each charging session.
The Type 2 connector is suitable for compatible electric cars and plug-in hybrid vehicles, making this charger a versatile solution for everyday residential use.
Powerful 22kW AC Charging
Designed for properties with a suitable three-phase electrical supply, the Andersen Quartz can deliver up to 22kW AC charging power, subject to the connected vehicle's onboard charger and installation configuration.
This higher charging capacity makes the Quartz particularly suitable for compatible electric vehicles that support three-phase AC charging.
Actual charging performance will depend on the available electrical supply, vehicle charging capability and any configured load management restrictions.
Smart EV Charging with the Andersen App
Take greater control of your charging sessions using the Andersen smart charging app, compatible with Apple iOS and Android smartphones.
Through built-in Wi-Fi connectivity, users can access a range of intelligent charging functions:
- Remotely monitor charging activity and progress.
- Create customised charging schedules.
- Track electricity consumption and charging costs.
- View detailed charging reports.
- Remotely lock or unlock the charging point.
- Monitor solar charging activity where supported.
- Receive supported over-the-air software updates.
These features provide convenient control over charging behaviour and help households manage electricity consumption more effectively.
Solar Compatibility and Smart Electricity Tariffs
The Andersen Quartz supports solar-compatible charging, allowing homeowners with a suitably configured solar PV installation to make greater use of electricity generated by their solar panels.
Compatibility with smart tariffs such as Intelligent Octopus Go also provides opportunities to schedule charging during eligible lower-cost electricity periods.
By combining solar integration with intelligent scheduling, the Quartz helps users manage charging costs and make more efficient use of available electricity.
Dynamic Load Management and Electrical Protection
The Andersen Quartz incorporates advanced dynamic load management technology that monitors household electricity demand and adjusts charging output when required.
Using wired current sensors and current-reducing hardware, the charger helps prevent excessive loading of the property's electrical supply while maintaining practical charging performance.
Its integrated safety monitoring features include:
- Real-time system health monitoring.
- Automatic start-up self-testing.
- Earth monitoring and PME monitoring.
- Contactor fault detection.
- Integrated 6mA DC fault protection.
- Dynamic current reduction and load monitoring.
- Remote software-enabled charging point locking.
Compact Midnight Black Design
With dimensions of just 286mm high, 172mm wide and 110mm deep, the Andersen Quartz provides a compact charging solution without compromising on smart functionality.
The sophisticated Midnight Black finish complements contemporary residential properties, while the front-mounted LED indicator allows users to check the charger's operating status at a glance.
Its space-saving wall-mounted design makes it suitable for residential driveways and garages where a discreet charging installation is preferred.
IP65 Weather Resistance and IK10 Impact Protection
Designed for dependable outdoor operation, the Andersen Quartz features an IP65-rated enclosure providing protection against dust ingress and water jets.
Its IK10 impact resistance rating offers additional durability against mechanical impacts, making the charger suitable for demanding everyday environments.
The unit is designed to operate in temperatures from -25°C to +45°C and humidity levels of up to 95% RH, non-condensing.
Technical Specifications
| Manufacturer | Andersen EV |
|---|---|
| Model Number | Q2265MBMB |
| Product Range | Andersen Quartz |
| Product Type | Smart Tethered EV Charger |
| Colour | Midnight Black |
| Maximum Charging Power | 22kW |
| Charging Connection | Type 2 Tethered Cable |
| Cable Configuration | Tethered |
| Cable Length | 6.5m |
| Vehicle Compatibility | Type 2 Electric and Plug-in Hybrid Vehicles |
| Smart App Control | Yes – Andersen App |
| Remote Charging Scheduling | Yes |
| Remote Locking | Yes |
| Wi-Fi Connectivity | Yes |
| Mobile Device Compatibility | Apple iOS and Android |
| Solar Compatibility | Yes |
| Smart Tariff Compatibility | Intelligent Octopus Go |
| Dynamic Load Management | Yes |
| Integrated DC Fault Protection | 6mA DC |
| Charging Status Indicator | Front LED Indicator |
| Mounting Type | Wall Mounted |
| Installation Height | 0.75m–1.2m Above Ground Level |
| Enclosure IP Rating | IP65 |
| Impact Resistance | IK10 |
| Operating Temperature | -25°C to +45°C |
| Operating Humidity | Up to 95% RH, Non-Condensing |
| Supply Frequency | 50/60Hz |
| Dimensions (H x W x D) | 286 x 172 x 110mm |
| Warranty | 7 Years Andersen Care Cover (Subject to Terms) |
Installation and Electrical Requirements
The Andersen Quartz 22kW EV Charger must be installed by a suitably qualified electrician in accordance with the manufacturer's installation instructions and applicable UK electrical regulations.
Important: Achieving the maximum 22kW charging output requires a suitable three-phase electrical supply and a vehicle capable of accepting 22kW AC charging. Actual charging speed depends on the installation, electrical supply capacity and vehicle specifications.
The supplied product information also lists a 230V single-phase supply specification. The correct electrical supply requirements for model Q2265MBMB should therefore be confirmed against the manufacturer's installation documentation before installation.
Why Choose the Andersen Quartz 22kW Tethered EV Charger?
The Andersen Q2265MBMB Quartz 22kW EV Charger is an excellent choice for homeowners seeking powerful charging capability, intelligent energy management and convenient tethered operation.
Its 6.5m Type 2 cable, Midnight Black finish, smart app connectivity, solar compatibility and dynamic load management provide a practical combination of performance and modern functionality.
With IP65 weather protection, IK10 impact resistance, advanced fault monitoring and seven years of Andersen Care Cover, this premium charging point is designed to provide reliable long-term EV charging.
Installation Manual
Download Andersen Quartz EV Charger Installation Manual (PDF)
