Wiska 10109674 COMBI 407 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Light Grey

Wiska 10109674 COMBI 407 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Light Grey

Features

• Type: COMBI 407/3-221-413
• Colour: Light Grey
• Terminal Type: 3 x 3-pole WAGO 221
• Material: Polypropylene
• Material sealing gasket: TPE
• Temp. range min: -30 °C
• Temp. range max: 100 °C
• Temperatures during install: -5 °C - 60 °C
• Protection class: IP66 / IP67
• Glow wire test: 750 °C
• Voltage: 690 V
• Rated current / A (Terminal): 24 A
• Rated cross section: 4 mm²
• Terminals/poles: 4 mm²

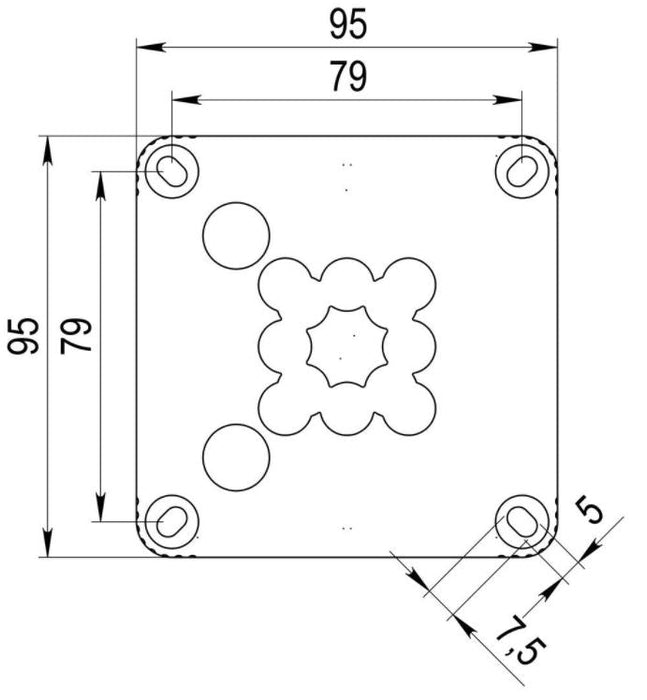

• Fixing: 4 internal openings
• Ø cable diameter min: 3 mm
• Ø cable diameter max: 12 mm

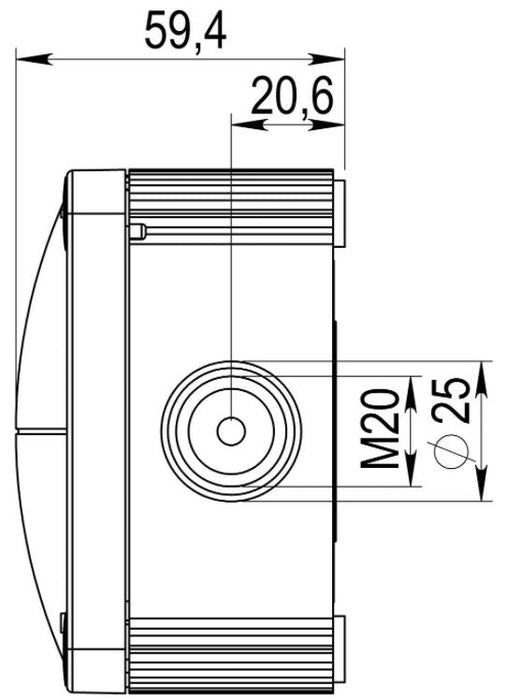

• External dimensions LxWxH: 95 x 95 x 60mm
• ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip

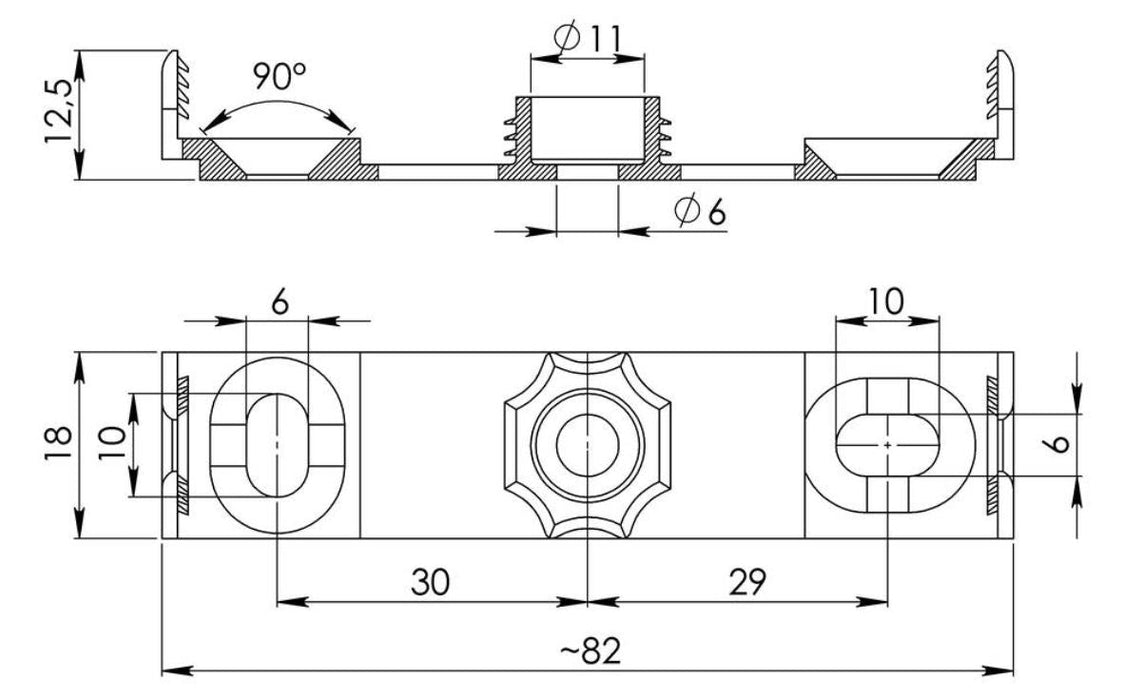

including terminal carrier on quick mounting plate mounted +
3x WAGO 221-413 enclosed loose

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:
