Wiska 10106191 COMBI 407/4SDKF5 Junction Box + 4x 5 Way Push-In Terminal Block - Light Grey

Wiska 10106191 COMBI 407/4SDKF5 Junction Box + 4x 5 Way Push-In Terminal Block - Light Grey

Features

• Type: COMBI 407/4SDKF5
• Colour: Light Grey
• Terminal Type: 4x SDKF
• Material: Polypropylene
• Material sealing gasket: TPE
• Temp. range min: -30 °C
• Temp. range max: 100 °C
• Temperatures during install: -5 °C - 60 °C
• Protection class: IP66 / IP67
• Glow wire test: 750 °C
• Voltage: 690 V
• Rated current / A (Terminal): 24 A
• Rated cross section: 4 mm²
• Terminals/poles: 2,5 mm²
• Fixing: 4 internal openings
• Ø cable diameter min: 3 mm
• Ø cable diameter max: 12 mm

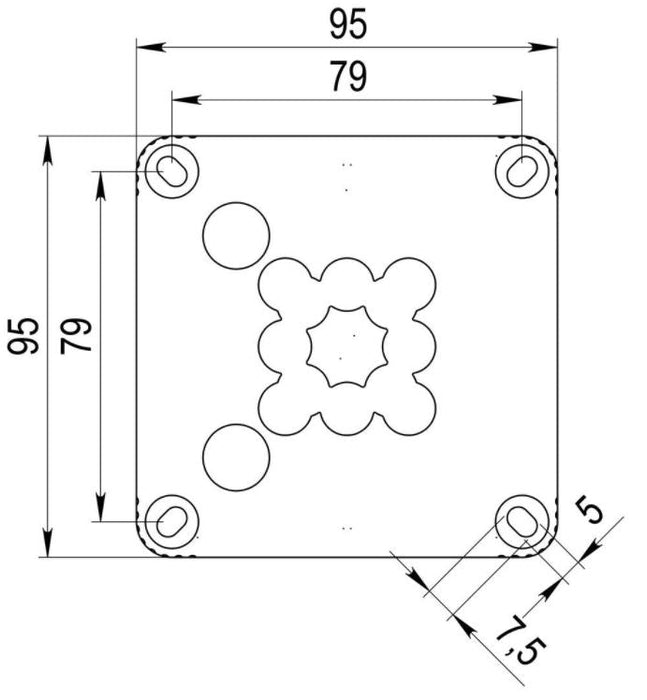

• External dimensions LxWxH: 95 x 95 x 60mm
• ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:

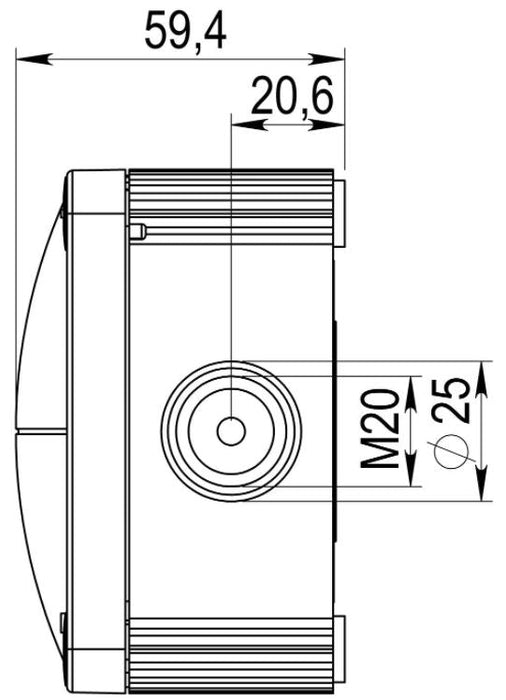

6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws

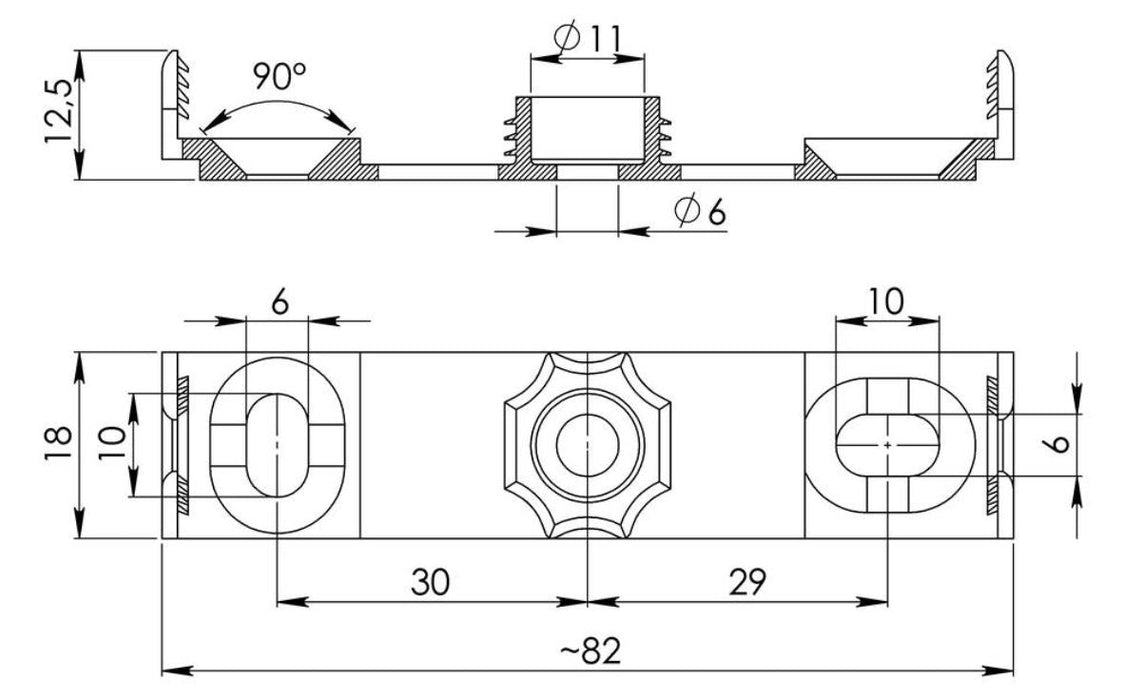

including mounting clip
with terminal block consisting of:
4 screwless box terminal 5-poles, flexible

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:
