Wiska 10060610 COMBI 308 Empty Junction Box - White

SKU 10060610
Availability:
Dispatch in 2-3 Days
£4.51
£4.51 - £4.51
£4.51
£2.91 Exc VAT
£3.49 Inc VAT
£3.49 - £3.49
£3.49
£3.49 - £3.49
£3.49
Request a quote
Read More...

Wiska 10060610 COMBI 308 Empty Junction Box - White

Features

  • Type: COMBI 308/Empty
  • Colour: White
  • Terminal Type: None
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 400 V
  • Rated cross section: 4 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm

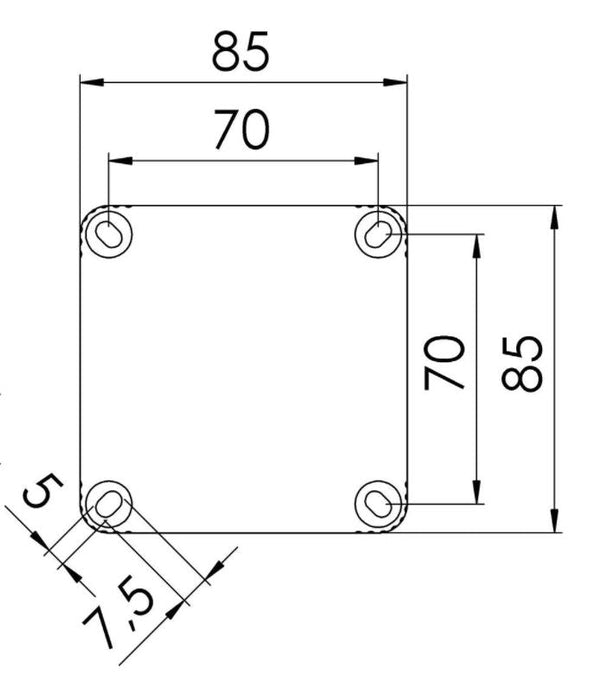

  • External dimensions LxWxH: 85 x 85 x 51mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:

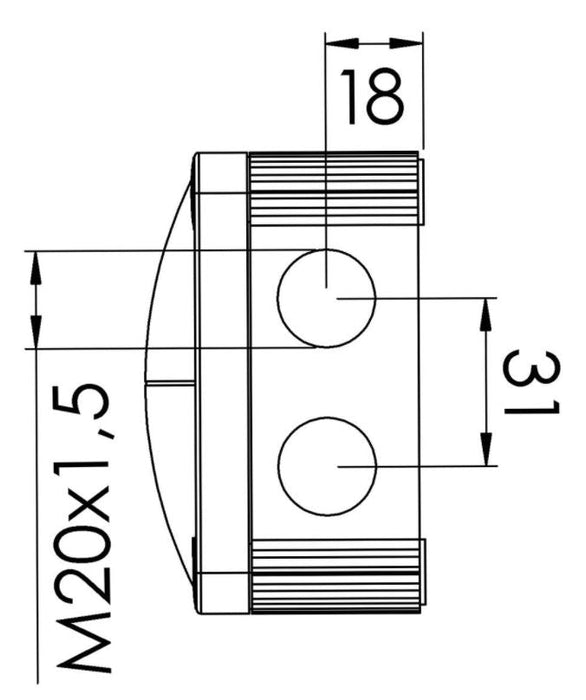

8 M20 threaded membrane entries
4 captive cover screws

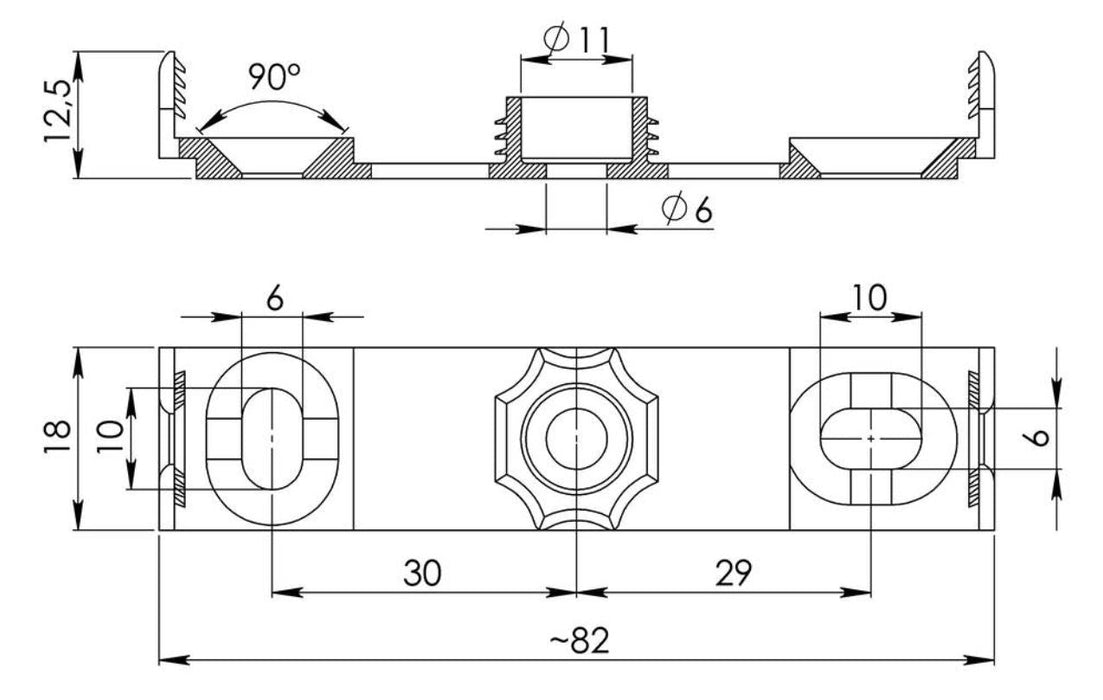

including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
