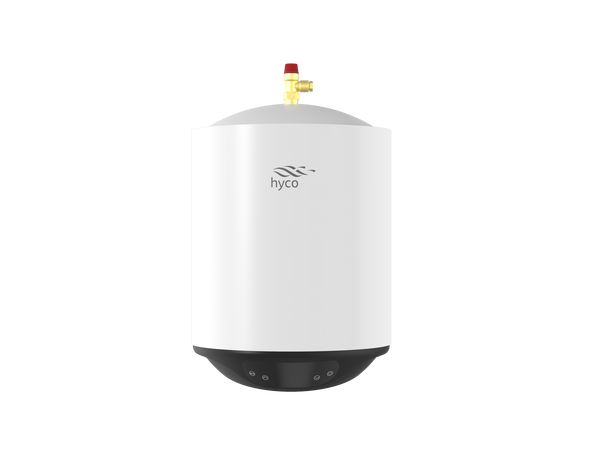

Hyco PF30LS Powerflow Smart 30L Unvented Multipoint Water Heater 3.0kW
Hyco PF30LS Powerflow Smart 30L Unvented Multipoint Water Heater 3.0kW with Anti-Legionella Mode
Product Description
The Hyco PF30LS Powerflow Smart 30L Unvented Multipoint Water Heater is an energy-efficient hot water solution designed to supply reliable mains pressure hot water to multiple outlets. With a powerful 3.0kW heating element, intelligent operating modes and a 30-litre capacity, it is ideal for handwashing, washing-up and other everyday hot water requirements.
Suitable for kitchens, washrooms, schools, restaurants, healthcare environments, offices and other commercial or light domestic applications, the PF30LS combines smart energy management with a practical slimline, wall-mounted design.
Its patented technology helps prevent incoming cold water from immediately mixing with the stored hot water, increasing the amount of usable hot water available. Three operating modes – Standard, Smart and Eco – allow the heater to adapt to different usage requirements, while Eco mode operates at 50°C to help reduce unnecessary energy consumption.
For improved water hygiene, the PF30LS includes an anti-legionella mode. When enabled, the heater automatically raises the internal water temperature to 65°C and maintains it for one hour every two weeks.
Key Features & Benefits
- 30-litre unvented multipoint water heater for supplying multiple outlets
- Powerful 3.0kW heating element for fast heat-up
- Anti-legionella mode for improved stored water hygiene
- Automatically heats water to 65°C for one hour every two weeks when anti-legionella mode is enabled
- Three operating modes: Standard, Smart and Eco
- Eco mode operates at 50°C
- Smart technology designed to improve energy efficiency
- Patented technology helps minimise immediate mixing of incoming cold water with stored hot water
- Digital control panel for convenient operation
- External electronic temperature control
- Electronic thermostat adjustable from 30°C to 70°C
- Neon heating element indicator
- Slender, slimline design for wall-mounted installation
- Durable glass-lined steel water tank
- Supplied with 1.5m pre-wired cable
- Base-positioned water connections
- Suitable for use with regular taps, including mixer taps
- Provides mains pressure flow rates
- Supplied complete with the required unvented accessory kit
- Optional thermostatic mixing valve available separately
- Compatible Flow Through Kits available separately
- ErP energy rating: A
- IPX4 rated
Technical Specifications
- Model: PF30LS
- Capacity: 30 litres
- Heating Element: 3.0kW
- Outer Casing: White powder-coated steel
- Heating Element Material: Stainless steel Incoloy
- Thermostat: Electronic, 30°C–70°C
- Water Tank: Glass-lined steel
- Anode: Replaceable grey magnesium anode
- Insulation: High-density CFC-free polyurethane foam
- IP Rating: IPX4
- Minimum Water Pressure: 1 bar
- Maximum Water Pressure to Pressure Reducing Valve: 12 bar
- Working Water Pressure: 3 bar
- Inlet/Outlet Connection: 1/2" BSP male
- Connection Spacing: 100mm centre-to-centre
- Installation: Vertical wall mounting with inlet and outlet connections at the base
- Approvals: CE, UKCA, KIWA Reg 4 and G3 Building Regulations
Safety & Protection
- Manual-reset overheat temperature protection
- Factory-fitted temperature and pressure relief valve set at 7 bar / 90°C
- Pressure reducing valve set at 3 bar
- Pressure relief valve at 6 bar
- A thermostatic mixing valve can be used to maintain a safe and consistent hot water temperature at the outlet
Unvented Accessory Kit
The supplied unvented accessory kit must be fitted during installation. For the PF30LS, the kit includes a 5-litre expansion vessel with fixing bracket, inlet group manifold incorporating a pressure relief valve, pressure reducing valve, check valve and balanced off-take, flexible hose and two tundishes.
Installation Requirements
- Must be installed by a suitably qualified person
- Must be wall mounted vertically with water connections at the base
- Allow at least 500mm clearance below and 200mm above the heater for future maintenance
- Access to the thermal cut-out and heating element is located at the base of the unit
- Requires 2 x 15mm compression to 1/2" BSP female adaptors – not supplied
- Electrical installation must comply with current IET regulations
- Connect to the property's fixed wiring via a suitably rated isolating switch with at least 3mm contact separation in all poles
Warranty
- 2-year parts or replacement warranty on electrical components
- 5-year tank warranty
Maintenance Note
The replaceable grey magnesium anode should be inspected at least annually and more frequently in areas with scale-forming or aggressive water conditions.
