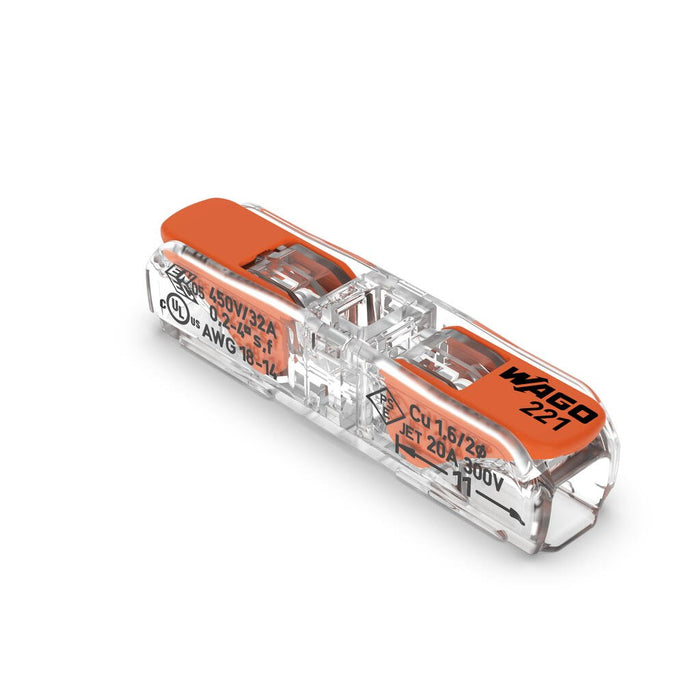

Wago 221-2411 4mm² 221 Inline Compact Connector - Transparent

Wago 221-2411 4mm² 221 Inline Compact Connector - Transparent

Inline splicing connector with lever; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4.00 mm²; transparent

This connector is suitable for worldwide installations.

Electrical Data:

• Ratings per: EN 60664
• Nominal voltage (II/2): 450V
• Rated surge voltage (II/2): 4kV
• Rated current: 32A
• Legend (ratings): (II / 2) ? Overvoltage category II / Pollution degree 2

• Rated voltage UL (Use Group C): 600V
• Rated current UL (Use Group C): 20A

Connection Data:

• Total number of connection points: 2

Connection 1:

• Connection Technology: CAGE CLAMP
• Actuation type: Lever
• Connectable conductor materials: Copper
• Solid conductor: 0.2 … 4 mm² / 20 … 14 AWG
• Stranded conductor: 0.2 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor: 0.2 … 4 mm² / 18 … 14 AWG
• Strip length: 11 mm / 0.43 inch

Physical Data:

• Width: 8.1 mm / 0.319 inch
• Height: 8.9 mm / 0.35 inch
• Depth: 35.5 mm / 1.398 inch

Material Data:

• Color: Transparent
• Cover color: Transparent
• Flammability class per UL94: V2
• Fire load: 0MJ
• Actuator color: Orange
• Weight of insulation material: 0.84g
• Weight: 2.4g
