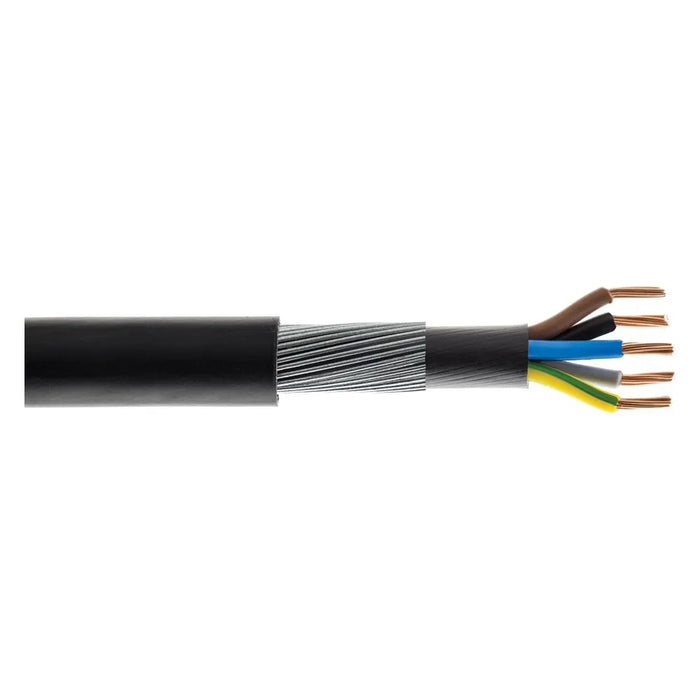

6945B 5 Core Steel Wire Armoured SWA LSZH 25.0mm Black Cable - Cut to Length sold per 1 metre

Product Overview

The 6945B 5 Core Steel Wire Armoured (SWA) 25.0mm Black Cable is a premium-grade power and auxiliary control cable designed for heavy-duty electrical installations. Built to endure mechanical stress, impact, and harsh environmental conditions, it is perfect for both underground applications and outdoor use.

This armoured cable is suitable for direct burial or can be mounted securely on cable trays, baskets, clips, or in free air runs. With its robust design and superior performance, it is widely used in industrial power networks, outdoor power distribution, and high-capacity circuits.

Certifications & Standards

• CE Marked
• BASEC Approved
• ISO 9001 Certified
• Complies with BS EN 5467
• LSZH sheath for enhanced fire safety

Key Specifications

• Cable Code: 6945B
• Type: 5 Core Steel Wire Armoured (SWA) LSZH
• Core Size: 25.0mm
• Outer Sheath Colour: Black
• Inner Core Colours: Green/Yellow, Blue, Brown, Black & Grey
• Number of Cores: 5
• Material: LSZH (Low Smoke Zero Halogen) Sheath, XLPE (Cross-linked Polyethylene) Insulation, Copper conductor
• Profile: Round
• Voltage Rating: 600/1000V
• Operating Temperature Range: -20 °C to +90 °C
• Short Circuit Temperature: 250 °C
• Length: Supplied cut to length per metre
• Typical Application: Outdoor power supply, industrial installations, and heavy-load electrical systems
