Term Tech PREM20GALV-25M Premflex Bare Galvanized Steel Flexible Conduit M20 Galv Finish (25m Coil)
Term Tech PREM20GALV-25M Premflex Bare Galvanized Steel Flexible Conduit M20 Galv Finish - 25m Coil
Product Description

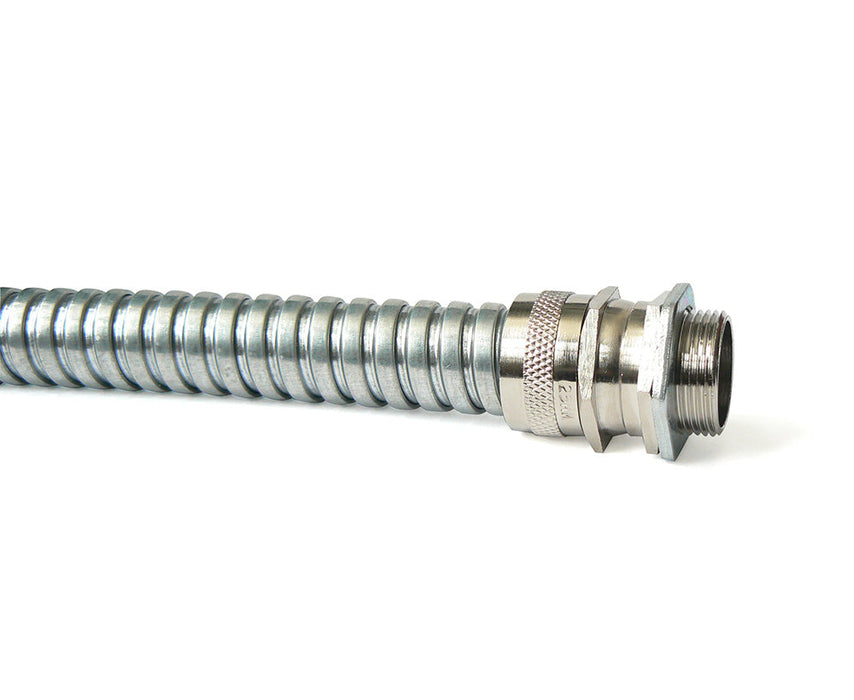

The Term Tech PREM20GALV-25M Premflex® Bare Galvanised Steel Flexible Conduit is a robust M20 conduit designed for demanding electrical installations where reliable cable protection and high mechanical strength are required. Supplied as a 25 metre coil, it provides a flexible and practical solution for routing and protecting electrical cables.
Manufactured from galvanised steel, this flexible conduit combines high mechanical strength with a low risk of fire hazard. Its wide continuous operating temperature range of -100°C to +300°C makes it suitable for applications exposed to particularly high or low temperatures.
Manufactured to BS EN 61386, the PREM20GALV-25M provides IP40 ingress protection when correctly fitted with suitable glands. The conduit is supplied as a coil only, allowing compatible fixed or swivel glands to be selected separately according to installation requirements.
Key Features
- M20 bare galvanised steel flexible conduit
- Supplied as a 25 metre coil
- Strong and flexible construction for cable protection
- High mechanical strength for demanding installations
- Low risk of fire hazard
- Wide operating temperature range from -100°C to +300°C
- IP40 ingress protection when fitted with suitable glands
- Manufactured to BS EN 61386
- Coil only - glands are not included
Specification
- Product Code: PREM20GALV-25M
- Range: Premflex®
- Conduit Type: Bare galvanised steel flexible conduit
- Nominal Size: M20
- Coil Length: 25m
- Ingress Protection: IP40 when fitted with suitable glands
- Continuous Operating Temperature: -100°C to +300°C
- Glands: Not included
- Standard: BS EN 61386
Dimensions
- Internal Diameter: 17.5mm
- External Diameter: 21.5mm
Material
- Material: Galvanised steel
- Finish: Galvanised
