Wago 224-112 2.5mm² 3-Way Lighting Connector – White (100 Pack)

The Wago 224-112 3-Way Lighting Connector is a compact and efficient solution for connecting lighting circuits quickly and securely. Part of the proven Wago 224 Series, this connector is specifically designed to join solid installation conductors with solid or fine-stranded lighting cables, making it ideal for modern lighting installations.

Featuring PUSH WIRE® technology on the installation side and CAGE CLAMP® spring pressure technology on the lighting side, the Wago 224-112 delivers maintenance-free, vibration-resistant connections without the need for ferrules. Its compact white housing is perfect for use in luminaires, ceiling roses, and confined wiring spaces.

Key Features & Benefits

• 3-way lighting connector with three clamping units
• PUSH WIRE® connection for solid installation conductors
• CAGE CLAMP® technology for solid and fine-stranded lighting cables
• Rated at 24A and 400V for demanding lighting applications
• Side-entry wiring for quick and tidy installation
• No ferrules required – tool-free conductor termination
• Suitable for copper conductors and aluminium conductors with Alu-Plus paste

Electrical Specifications

• Nominal voltage: 400V
• Rated current: 24A
• Rated impulse withstand voltage: 4kV
• Overvoltage category: III
• Pollution degree: 3

Connection Details

Installation Side

• Connection technology: PUSH WIRE®
• Number of connection points: 2
• Conductor type: Solid conductors
• Conductor size: 1.0 – 2.5mm²
• Strip length: 9 – 11mm

Lighting Side

• Connection technology: CAGE CLAMP®
• Number of connection points: 1
• Conductor type: Solid and fine-stranded conductors
• Conductor size: 0.5 – 2.5mm²

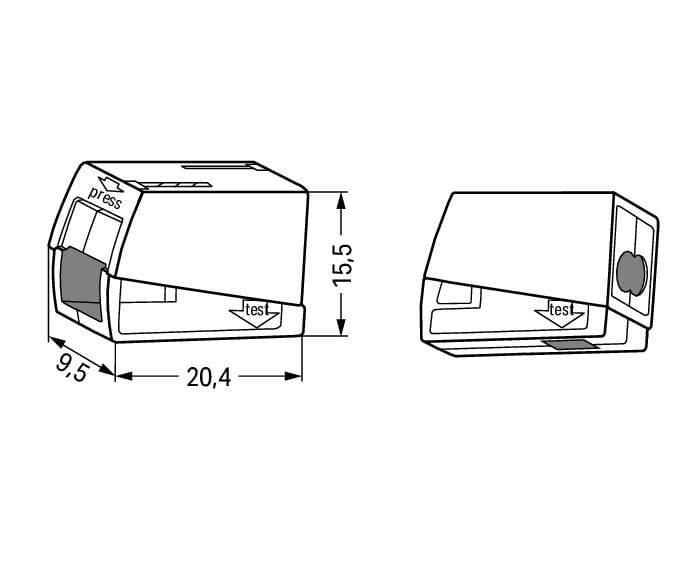

Physical & Material Data

• Colour: White
• Width: 9.5mm
• Height: 15.5mm
• Depth: 20.5mm
• Weight: 2.1g
• Fire load: 0.047 MJ

Environmental Ratings

• Maximum ambient operating temperature: +60°C
• Continuous operating temperature: up to 105°C

Typical Applications

The Wago 224-112 lighting connector is ideal for use in ceiling fittings, luminaires, junction boxes, residential properties, commercial buildings, and office environments where quick, reliable lighting connections are required.
