Product Description

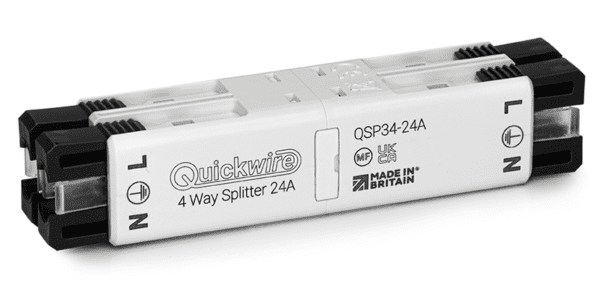

The Quickwire QSP34_24A is a compact, maintenance free 4 way splitter designed for fast and reliable electrical connections. With four interconnected inputs/outputs, it allows circuits to be easily extended or split, making it ideal for power distribution and spur connections.

Using Quickwire’s lightning-fast push-in connection technology, this splitter enables safe, tool-free installation while complying with BS 5733-MF requirements for maintenance free connections. Its slim profile allows it to pass easily through a 30mm hole, making it suitable for concealed installations.

Features & Benefits

• Maintenance free connector – no ongoing access required
• No earth sleeving required
• Extend and distribute power circuits
• Allows connection of two spurs
• Compact design fits through a 30mm hole
• Quickwire push-in technology for fast, secure installation
• Compatible with Quickwire mounting clamp QMC_TB

Technical Specification

• Manufacturer: Quickwire
• Part Number: QSP34_24A
• Product Type: 4 way splitter
• Rated Voltage: 250V~
• Rated Current: 24A
• Conductor Size: 2.5mm² Twin & Earth CPC cable (6242Y and 6242B), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 84mm
• IP Rating: IP30
• Standards: BS EN 60670-22, BS 5733-MF
• Mounting: Compatible with Quickwire mounting clamp QMC_TB

Typical Applications

• Power circuit extensions
• Distribution of ring final circuits
• Connecting multiple spurs
• Maintenance free electrical joints
• Concealed wiring installations

Downloads

Data Sheet:
Click here to download the Quickwire QSP34_24A data sheet
