Product Description

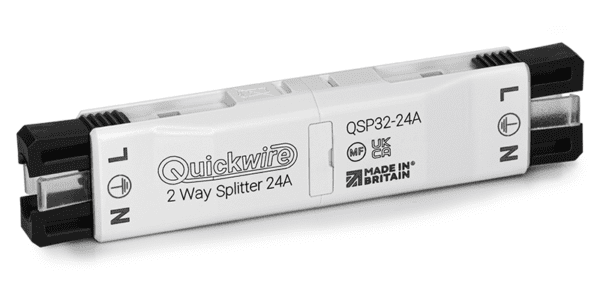

The Quickwire QSP32_24A is a compact, maintenance free 2 way splitter designed for fast and secure electrical connections. Rated at 24A, it is ideal for breaking into ring final circuits or repairing and extending existing cable runs without the need for junction boxes or ongoing maintenance.

Featuring Quickwire’s lightning-fast push-in connection technology, this splitter enables safe, tool-free installation while meeting BS 5733-MF requirements for maintenance free connections. Its slim design allows it to pass easily through a 30mm hole, making it perfect for concealed installations.

Features & Benefits

• Maintenance free connector – no ongoing access required
• No earth sleeving required
• Ideal for breaking into ring final circuits
• Suitable for repairing or extending existing cable runs
• Compact design fits through a 30mm hole
• Quickwire push-in technology for fast, secure installation
• Compatible with Quickwire mounting clamp QMC_TB

Technical Specification

• Manufacturer: Quickwire
• Part Number: QSP32_24A
• Product Type: 2 way splitter
• Rated Voltage: 250V~
• Rated Current: 24A
• Conductor Size: 2.5mm² Twin & Earth CPC cable (6242Y and 6242B), solid cores (Class 1)
• Dimensions: 23mm x 16mm x 84mm
• IP Rating: IP30
• Standards: BS EN 60670-22, BS 5733-MF
• Mounting: Compatible with Quickwire mounting clamp QMC_TB

Typical Applications

• Ring final circuit alterations
• Maintenance free electrical joints
• Repairs to damaged cable runs
• Extensions to existing wiring
• Concealed installations

Downloads

Data Sheet:
Click here to download the Quickwire QSP32_24A data sheet
