Product Description

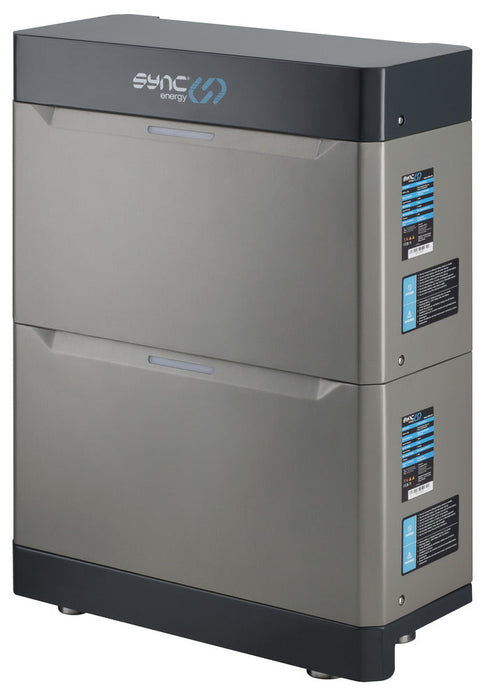

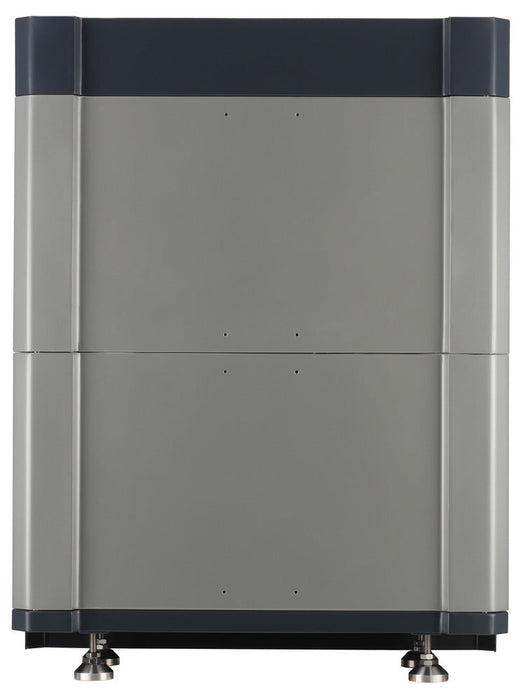

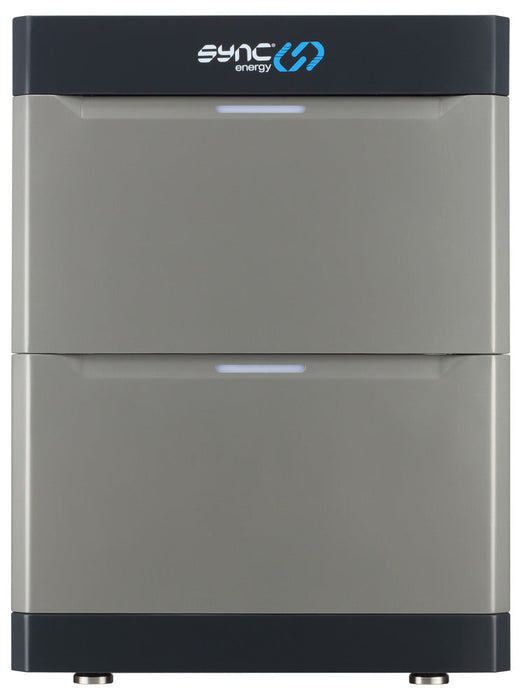

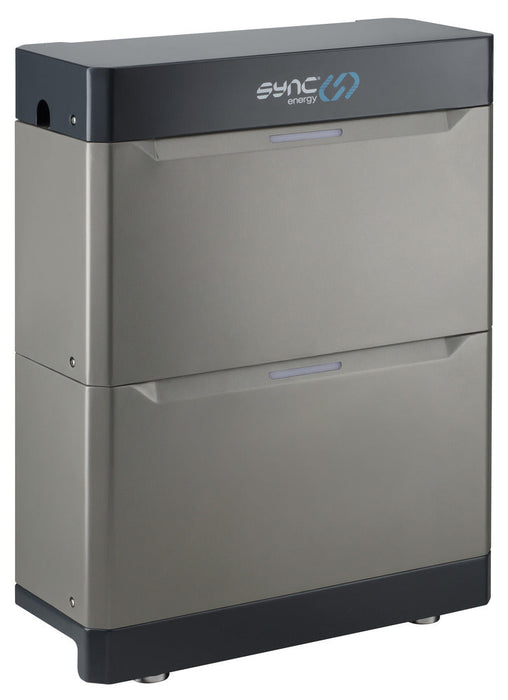

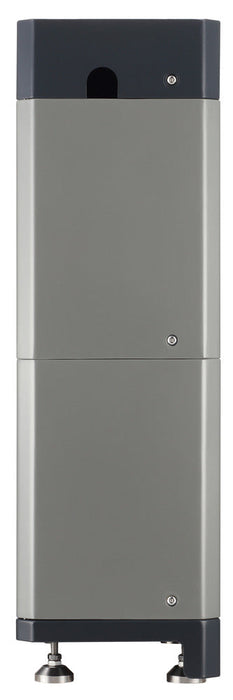

The Sync Energy Flow 10.24kWh Battery Stack is a flexible, modular energy storage solution designed for residential and light commercial applications. Supplied with two 5.12kWh LiFePO₄ battery modules, it delivers reliable, scalable storage that can be tailored to your energy requirements today and expanded in the future.

With a 90% depth of discharge, IP65 ingress protection and integrated fire suppression, the Flow battery system provides safe, dependable performance in demanding environments. Its modular architecture allows up to four battery stacks to be combined, delivering total storage capacity of up to 35.84kWh.

Designed for quick, hassle-free installation, the Flow system features plug-and-play battery connections, adjustable feet for precise positioning and concealed cable management for a clean, professional finish. Monitoring and optimisation are handled through the Sync Energy app, providing real-time visibility of battery performance and energy usage.

Key Features & Benefits

• Modular, stackable battery storage system
• Supplied with 2 × 5.12kWh LiFePO₄ battery modules (10.24kWh total)
• Scalable storage capacity up to 35.84kWh
• 90% depth of discharge for maximum usable energy
• Integrated fire suppression for enhanced safety
• Integrated heating system for charging below 5°C
• IP65 ingress protection and IK10 impact resistance
• Plug-and-play battery connections for fast installation
• Remote monitoring and control via the Sync Energy app
• Silent operation (0 dB)

Dimensions & Weight

• Dimensions (HxWxD): 1200 × 245 × 347 mm
• Total Weight: 102.2 kg

Installation Details

• Installation method: Ground mounted
• Wall mounting bracket supplied
• Adjustable feet for level installation
• Hinged access door for tidy wiring and isolator access
• Two selective cable entry points
• Fixing screws supplied

Construction & Appearance

• Steel housing with galvanised front finish
• Painted polycarbonate base
• Anthracite Grey finish (RAL 7016)
• Two-module configuration
• Green LED power indicator
• UV stable for long-term outdoor installation

Technical Specifications

• IP rating: IP65
• IK rating: IK10
• Operating temperature range: -25°C to +55°C
• Smart monitoring via Sync Energy app

Battery Information

• Battery included: Yes (2 modules supplied)
• Battery type: LiFePO₄ (Lithium Iron Phosphate)
• Battery capacity per module: 5.12kWh
• Total battery capacity supplied: 10.24kWh
• Battery weight per module: 51.1 kg
• Depth of discharge: 90%

Compliance

• WEEE group: 1 (Large household appliances)
